Product Overview
The CKJP85/SC represents a premium marine control cable solution combining XLPE insulation with advanced low smoke halogen free thermoset sheathing and dual copper protection. Engineered for maximum reliability in demanding environments where flame retardancy, flexibility and electromagnetic compatibility are critical.
Key Features
-
Advanced Flame Retardancy: Certified to IEC 60332-1 & IEC 60332-3-22 standards
-
Zero Halogen Safety: Compliant with IEC 60754 for non-corrosive gas emission
-
Reduced Smoke Density: Meets IEC 61034 for enhanced visibility during incidents
-
Dual Copper Protection: Combined screening and flexible armor for superior EMI shielding
-
Thermoset Sheath: SHF2 compound for improved thermal and chemical resistance
-
Enhanced Flexibility: Copper braid armor allows easier installation in confined spaces
Applications
-
Offshore drilling platforms and production rigs
-
Marine vessel control and monitoring systems
-
Critical power and lighting circuits in harsh environments
-
Hazardous area industrial installations
-
Power generation and distribution systems
-
Mining and metallurgical operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Maximum Operating Temperature | 90°C |
| Conductor Material | Tinned/plain stranded annealed copper |
| Insulation System | XLPE |
| Screening Options | Tinned copper braid or Alu/Polyester tape with drain wire |
| Armor Construction | Tinned/plain copper wire braid |
| Outer Sheath | Halogen-free flame retardant thermoset (SHF2) |
| Available Cores | 1 to 37 cores |
| Conductor Cross-Sections | 0.5mm² to 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable construction requirements
-
IEC 60228 - Conductors for insulated cables
-
IEC 60092-360 - Insulation and sheathing specifications
-
IEC 60332-1 & 60332-3-22 - Comprehensive flame retardancy testing
-
IEC 60754 - Halogen content verification
-
IEC 61034 - Smoke density measurement

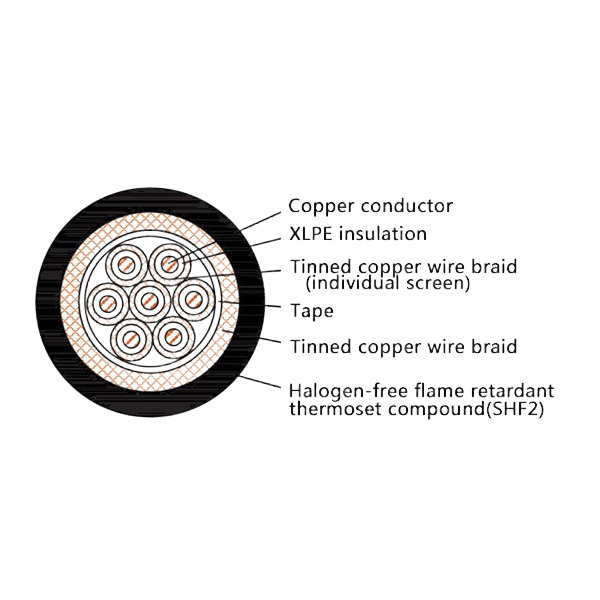

Construction Details
-
Product Series: CK (Marine & Offshore Control Cable)
-
Conductor Design: Tinned/plain stranded annealed copper per IEC 60228
-
Insulation Material: XLPE for thermal endurance
-
EMI Protection: Dual screening options - tinned copper braid or foil composite
-
Mechanical Armor: Tinned/plain copper wire braid for flexibility and protection
-
External Sheath: Halogen-free flame retardant thermoset compound (SHF2)
-
Standard Color: Black (custom colors available)
-
Flammability Classification: SC (Halogen Free Low Smoke Flame Retardant)
Product Advantages
-
Exceptional fire performance with verified flame retardant properties
-
Enhanced personnel safety through halogen-free and low smoke characteristics
-
Superior flexibility with copper braid armor for easier installation
-
Reliable signal integrity with comprehensive electromagnetic screening
-
Extended service life with thermoset sheath for harsh environments
-
Excellent corrosion resistance suitable for marine applications
-
Full international certification for global project acceptance
