Product Overview
The CKJP86/SC marine control cable integrates XLPE insulation with dual copper braid protection - combining electromagnetic screening with flexible armor in a low smoke halogen free design. Engineered for reliable performance in critical marine and industrial control systems.
Key Features
-
Dual Copper Protection: Combined screening and armor for superior EMI shielding
-
Flame Retardant: Certified to IEC 60332-1 & IEC 60332-3-22
-
Halogen Free: Compliant with IEC 60754 for non-corrosive gas emission
-
Low Smoke Density: Meets IEC 61034 for enhanced visibility
-
Flexible Construction: Copper braid armor allows easier installation
-
Thermal Stability: XLPE insulation rated for 90°C operation
Applications
-
Offshore platforms and drilling rigs
-
Marine vessel control systems
-
Power and lighting circuits
-
Industrial automation
-
Hazardous area installations
-
Mining and processing plants
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | XLPE |
| Screening | Tinned copper braid or Alu/Polyester tape |
| Armor | Tinned/plain copper wire braid |
| Outer Sheath | Halogen-free flame retardant thermoplastic (SHF1) |
| Core Configuration | 1-37 cores |
| Conductor Sizes | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60332-1 & 60332-3-22 - Flame retardancy
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

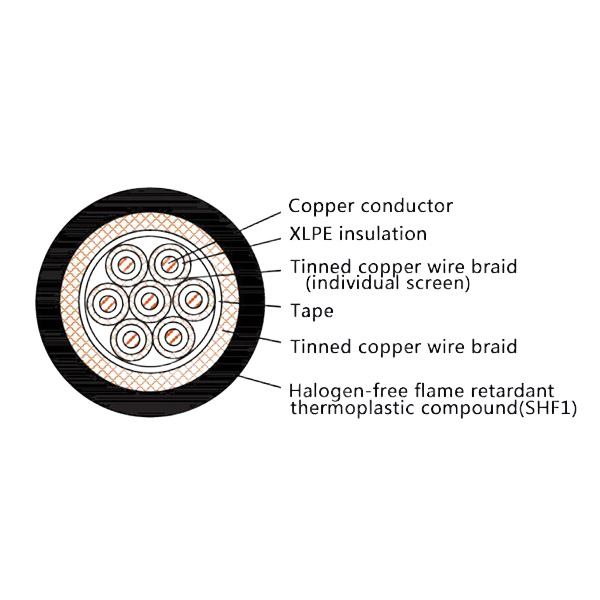

Construction Details
-
Series Code: CK (Marine & Offshore Control)
-
Conductor: Tinned/plain stranded annealed copper
-
Insulation: XLPE
-
Screening: Tinned copper braid or Alu/Polyester tape with drain wire
-
Armor: Tinned/plain copper wire braid
-
Outer Sheath: Halogen-free flame retardant thermoplastic (SHF1)
-
Sheath Color: Black (custom colors available)
-
Flammability: SC (Halogen Free Low Smoke Flame Retardant)
Product Advantages
-
Enhanced EMI Protection: Dual copper braid system for critical signal integrity
-
Superior Flexibility: Copper braid armor enables easier routing in tight spaces
-
Environmental Safety: Halogen-free composition protects equipment and personnel
-
Corrosion Resistance: Tinned copper components ensure marine environment durability
-
Space Efficient: Reduced bending radius compared to steel armor designs
-
Full Certification: Compliant with international marine and safety standards
