0.6/1kV XLPE Insulated LSZH Sheathed Power Cable | IEC 60502-1 | 1-61 Cores 1.5-400mm² | Low Smoke Zero Halogen

Product Overview

This Copper/XLPE/LSZH Power Cable (0.6/1kV) delivers enhanced fire safety and environmental protection for critical low-voltage installations. Certified to IEC 60502-1, it combines XLPE insulation (90°C rating) with Low Smoke Zero Halogen (LSZH) sheathing to minimize toxic emissions and visibility impairment during fires. Ideal for confined/public spaces where human safety is prioritized.

Key Technical Specifications

Parameter Specification
Standard IEC 60502-1 (0.6/1kV)
Conductor Class 1/2 Copper (IEC 60228)
Insulation XLPE (Cross-Linked Polyethylene)
Sheath LSZH (Low Smoke Zero Halogen)
Operating Temp -20°C to +90°C (Conductor max: 90°C)
Fire Performance IEC 60332-3-22/23/24 (Flame Retardancy)
Halogen Emission IEC 60754-1/2 Compliant (Acidity/pH ≤4.3)
Smoke Density IEC 61034-2 Certified (Light Transmittance ≥60%)

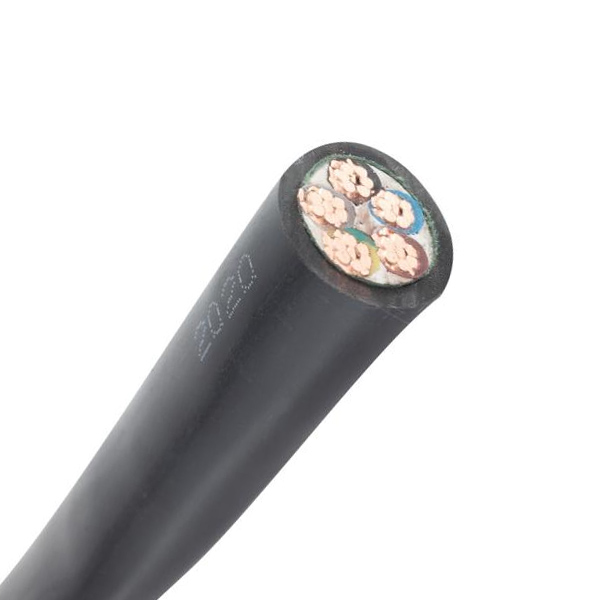

Construction Details

  1. Conductor: Solid (Class 1) or Stranded (Class 2) Copper

  2. Insulation: Thermoset XLPE Layer

  3. Sheath: Extruded LSZH Compound

  4. Color Coding:

    • 1-5 Cores: Phase Colors per IEC 60446 (Brown/Black/Grey/Blue/Yellow-Green)

    • ≥6 Cores: Black with White Numbering

Dimensional Data (Selected Sizes)

(Full data in documentation)

Cores Section (mm²) Ø (mm) Sheath Thick. (mm)
1-Core 1.5–1000 5.6–46.2 1.4–2.8
3-Core 1.5–400 9.6–63.3 1.8–3.0
5-Core 1.5–2.5 11.2–12.2 1.8
61-Core 1.5/2.5 29.0/32.8 1.9–2.0

Product Advantages

  • 🚫 Zero Halogen: Eliminates toxic acid gas during combustion (IEC 60754)

  • 🌫️ Low Smoke Density: Maintains >60% light transmittance in fire (IEC 61034)

  • 🔥 Fire Resilience: Self-extinguishing per IEC 60332-3 Cat. A/B/C

  • 🌍 Eco-Safe: Meets RoHS/REACH environmental directives

  • ⚡ Stable Dielectric: XLPE insulation ensures consistent electrical performance

Application Scenarios

  • Public Buildings: Hospitals, schools, shopping malls, airports

  • Transport Hubs: Subways, tunnels, railway stations

  • Industrial Facilities: Control rooms, power plants, chemical plants

  • Data Centers: Server racks, UPS systems, emergency circuits

  • Renewable Energy: Solar/Wind farm internal cabling

Suitable for indoor/outdoor ducts, trays, and dry/damp locations. Not for direct burial.

Fire Safety Compliance

Test Standard Performance
Flame Propagation IEC 60332-3 Category A/B/C
Halogen Acid Gas Emission IEC 60754-1 ≤0.5% HCL content
Smoke Opacity IEC 61034-2 Min. 60% light transmittance

Certifications & Ordering

  • Standards: IEC 60502-1, BS 7211, BS 6724

  • Certifications: CE, RoHS, ISO 9001

  • Customization: FR/LSZH/PVC variants; Anti-rodent/termite options

  • Packaging: Wooden drums (lengths per request)
