Product Overview
The CHJPF90/SC is a robust steel wire armoured (SWA) marine communication cable engineered for fixed installations where superior mechanical protection and fire safety are critical. It features Cross-Linked Polyethylene (XLPE) insulation and a Halogen-Free, Low Smoke Flame Retardant (LSHF) construction. The defining characteristic is its exposed galvanized steel wire braid armor (Code 9), providing maximum resistance to crushing, impact, and tension without an additional outer sheath. This design makes it ideal for demanding, exposed routes in marine and industrial environments, ensuring full compliance with the IEC 60092 standard series.
Key Features & Benefits
-
Maximum Mechanical Protection: The exposed galvanized steel wire braid armor offers exceptional tensile strength and crush resistance, ideal for direct installation in high-risk areas, cable trays, or conduits where extra physical safeguarding is required.
-
Essential Fire Safety: Complies with Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) standards to reduce toxic fumes and smoke opacity. Meets stringent Flame Retardant (IEC 60332) requirements.
-
Durable & Cost-Effective Design: XLPE insulation ensures reliable electrical performance and thermal stability (90°C). The absence of an outer sheath over the armor provides a streamlined, economical solution for applications where the armor itself serves as the final protective layer and requires grounding.
-
For Exposed & Tough Environments: Specifically suited for installations where cables are subject to mechanical stress, such as in engine rooms, industrial plants, or areas with potential rodent issues.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
Construction Details

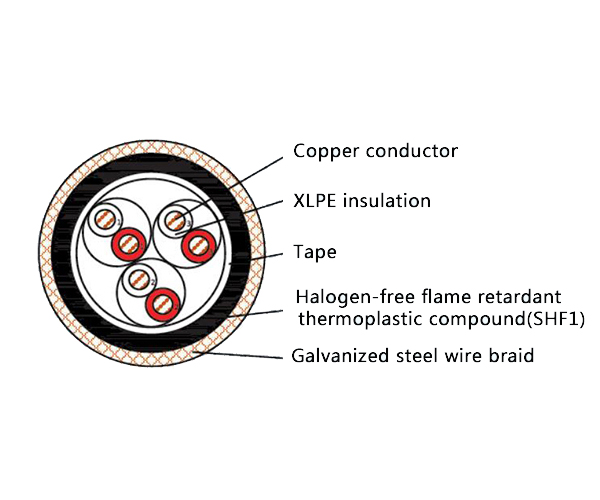

| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in accordance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for use in exposed or protected areas requiring heavy-duty mechanical protection:
-
Telecommunication and control systems in high-vibration or high-risk zones on ships and offshore platforms.
-
Rugged data and instrumentation networks in power generation, mining, chemical processing, and metallurgy plants.
-
Installations where the steel armor will be directly grounded and an outer sheath is not necessary for the environment.
