Product Overview

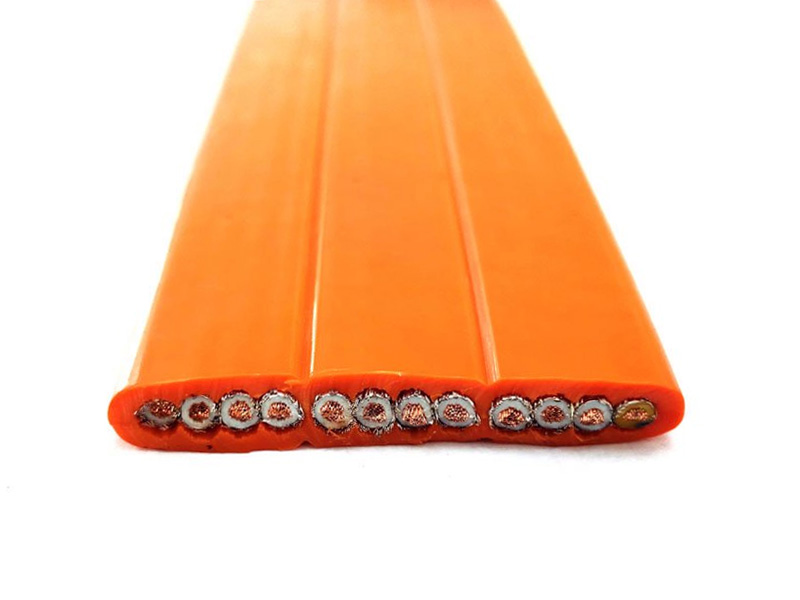

TVVBP copper-shielded flexible flat cable delivers reliable power transmission in dynamic industrial applications. Designed for continuous movement in cable carriers and tracks, it features a flat profile for efficient space utilization and twist-free operation. Rated for 450/750V systems, this oil-resistant PVC cable excels in mobile equipment requiring EMI protection.
Key Features & Benefits
1. Robust Electrical Performance
-
Rated voltage: 450/750V (300/500V for ≤1mm² cores)
-
20°C max DC resistance: 7.98-26 Ω/km (depending on cross-section)
-
Copper braid shielding for EMI/RFI protection
2. Durable Material Construction
-
Conductor: Fine-stranded oxygen-free copper (TR soft)
-
Insulation: Flexible PVC (oil/water/corrosion resistant)
-
Reinforcement: Optional high-strength film tape layer
-
Flat parallel core arrangement with numbered identification
3. Optimized Mechanical Design
-
Flexible flat structure prevents twisting
-
Space-efficient for cable tracks and carriers
-
Reinforced variants for high-bending applications
4. Environmental Resistance
-
Operating temperature: -10°C to +70°C*
-
Oil, water, and chemical resistance
-
High mechanical strength and dielectric stability
Application Scenarios
-
Material Handling: Cable tracks, mechanical towlines, trolleys
-
Vertical Transport: Elevators, tower cranes, hoists
-
Mobile Machinery: Telescopic equipment, transfer carts
-
Industrial Automation: Robotic arms, assembly lines
-
Power Transmission: Control circuits, lighting systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 450/750V AC (300/500V for ≤1mm² cores) |
| Temperature Range | -10°C to +70°C* |
| Conductor | Oxygen-free copper (TR soft) |
| Insulation | Flexible PVC |
| Shielding | Copper wire braid |
| Standards | IEC 60227, EN 50525-2 |
Typical Performance Parameters
| Model | Cores × Section (mm²) | Insul. Thick (mm) | Dimensions W×H (mm) | Weight (kg/km) | Max DC Resistance (Ω/km) |
|---|---|---|---|---|---|
| TVVBP | 12 × 0.75 | 0.6 | 5.2 × 40 | 436.4 | 26 |
| TVVBP | 12 × 1.25 | 0.6 | 6.0 × 48 | 616 | 16 |
| TVVBP | 10 × 1.5 | 0.8 | 6.4 × 50.4 | 645.6 | 13.3 |
| TVVBP | 12 × 1.5 | 0.5 | 6.0 × 48 | 643.1 | 13.3 |
| TVVBP | 13 × 1.25 | 0.6 | 6.0 × 50 | 599.5 | 16 |
| TVVBP | 10 × 2.5 | 0.8 | 6.4 × 50.4 | 730 | 7.98 |
| TVVBP | 12 × 2.5 | 0.7 | 6.4 × 55.8 | 960 | 7.98 |
Construction Details
Layer Structure:
-
Conductor: Multiple fine-stranded OFC copper wires
-
Insulation: PVC compound (0.5-0.8mm thickness)
-
Core Arrangement: Parallel alignment with digital identification
-
Shielding: Braided tinned copper wire (EMI protection)
-
Optional Reinforcement: High-strength film tape layer
Engineering Notes
-
Temperature Limitation:
-
Not recommended below 0°C without special design consultation
-
Custom formulations available for extreme conditions
-
-
Voltage Rating:
-
≤1mm² cores: 300/500V
-
1mm² cores: 450/750V
-
-
Customization Options:
-
Core configurations (up to 13 cores documented)
-
Reinforced versions for high-tension applications
-
Custom dimensions for specific cable carriers
-
-
Installation Guidance:
-
Minimum bending radius: 7.5× cable height
-
Avoid sharp edges in cable tracks
-
Regular inspection recommended in high-cycle applications
-
