Product Overview
YGGBJ silicone rubber tensile towed flat cable delivers extreme temperature resistance (-60°C to +220°C) with reinforced construction for heavy-load applications in metallurgy, power plants, and material handling systems. Features permanent +180°C rating and fire-resistant SiO₂ formation.
Key Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Continuous Temp | +180°C |
| Peak Temp | +220°C (short-term) |
| Low Temp | -60°C |
| Conductor | Tinned copper |
| Insulation/Sheath | Silicone rubber (Red) |
| Key Properties | Abrasion/corrosion resistance, cold flexibility, stable dielectric strength |
Model Comparison
| Model | Shielding | Reinforcement | Primary Application |
|---|---|---|---|
| YGGB | ✗ | ✗ | Standard high-temp movement |
| YGGBP | ✓ | ✗ | EMI-sensitive environments |
| YGGBJ | ✗ | ✓ | High-tension machinery |
Full Dimensional Data
| Cores × Section (mm²) | Cable Width × Height (mm) | Unit Weight (kg/km) |
|---|---|---|
| 3×0.75 | 11.6×4.90 | 85 |
| 3×1 | 12.6×5.70 | 100 |
| 3×1.5 | 14.6×6.40 | 140 |
| 3×2.5 | 17.4×7.30 | 200 |
| 3×4 | 19.9×8.45 | 280 |
| 3×6 | 21.5×9.00 | 360 |
| 3×10 | 26.7×11.00 | 560 |
| 3×16 | 30.6×12.30 | 790 |
| 3×25 | 38.1×15.20 | 1220 |
| 3×35 | 41.1×16.30 | 1560 |
| 3×50 | 48.1×18.80 | 2100 |
| 3×70 | 53.8×20.70 | 2800 |
| 3×95 | 61.3×23.20 | 3690 |
| 3×120 | 67.6×25.30 | 4520 |
| 3×150 | 74.5×27.60 | 5560 |
| 3×185 | 81.7×30.00 | 6750 |
| 3×240 | 91.0×33.10 | 8660 |
| 4×1 | 15.3×5.70 | 130 |
| 4×1.5 | 17.9×6.35 | 170 |
| 4×2.5 | 21.7×7.30 | 250 |
| 4×4 | 24.7×8.45 | 360 |
| 4×6 | 26.9×9.00 | 460 |
| 4×10 | 33.7×11.00 | 730 |
| 4×16 | 38.9×12.30 | 1020 |
| 4×25 | 48.5×15.20 | 1580 |
| 4×35 | 52.9×16.30 | 2040 |
| 4×50 | 61.7×18.80 | 2750 |
| 4×70 | 69.3×20.70 | 3680 |
| 4×95 | 79.3×23.20 | 4850 |

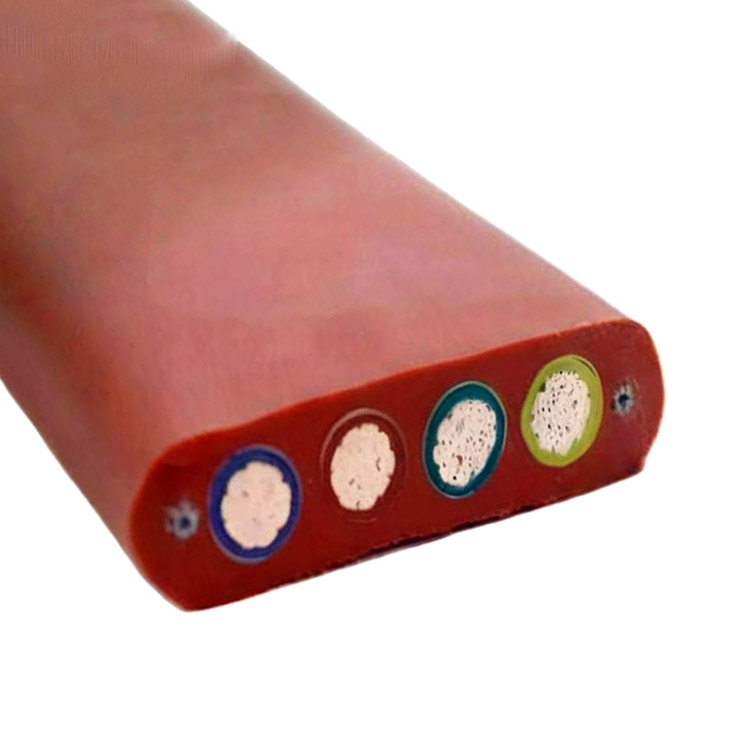

Construction Architecture
-
Conductor
-
Tinned oxygen-free copper wires
-
-
Insulation
-
High-temp silicone rubber
-
-
Tensile System (YGGBJ Specific)
-
Embedded steel reinforcement wires
-
-
Tear Line
-
Longitudinal access feature
-
-
Sheath
-
Abrasion-resistant silicone rubber (Red)
-
Engineering Selection Guide
When to Specify YGGBJ:
-
Tension loads exceeding 500kg
-
Ambient temperatures >120°C
-
Thermal cycling environments
-
OSHA/MSHA-regulated facilities
-
Abrasive industrial environments
Customization Options:
-
Core configurations: 3-48 cores
-
Custom tensile reinforcement levels
-
Specialized jacketing compounds
Industry Applications:
• Metallurgical plants (casting lines, rolling mills)
• Power generation (boiler feed systems, turbine halls)
• Shipyard gantry cranes
• Cement/glass kiln feed systems
• Mining dragline equipment
