Heavy-Duty SOOW Portable Cord 4×6 AWG, 4×8 AWG, 4×10 AWG | 600V Oil, Water & Weather Resistant Power Cable

Product Overview

Engineered for extreme industrial environments, this 4-conductor SOOW portable cord delivers robust power transmission in oil-exposed, wet, and outdoor conditions. Featuring thermoset rubber construction with EPDM insulation and CPE jacketing, it excels in flexibility, durability, and safety compliance. Available in 4x6 AWG, 4x8 AWG, and 4x10 AWG configurations for high-current applications.

Key Features & Benefits

  • Heavy-Duty Protection: Thermoset rubber jacket (SOOW) resists oil, water, abrasion, UV, ozone, and solvents

  • Wide Operating Range: -40°C to +90°C temperature tolerance

  • High-Capacity Conductors: 6/8/10 AWG annealed copper for optimal current delivery

  • Safety Certified: UL 62, CSA C22.2 No. 49, MSHA, VW-1/FT2 flame tested

  • Easy Identification: Color-coded conductors with dedicated green ground wire

  • RoHS & NEC Compliance: Meets Article 400 for hard usage applications

Technical Specifications

Parameter Specification
Conductors 4x6 AWG / 4x8 AWG / 4x10 AWG bare annealed copper (ASTM B-3), bunch-stranded
Insulation Color-coded EPDM rubber (oil/water resistant per UL 62)
Jacket Black CPE (Chlorinated Polyethylene)
Voltage Rating 600V
Temp. Range -40°C to +90°C
Flame Resistance VW-1, FT2, MSHA certified
Color Coding Black, White, Red, Green (Green = Ground)
Standards UL 62, CSA C22.2 No. 49, NEC Article 400, RoHS

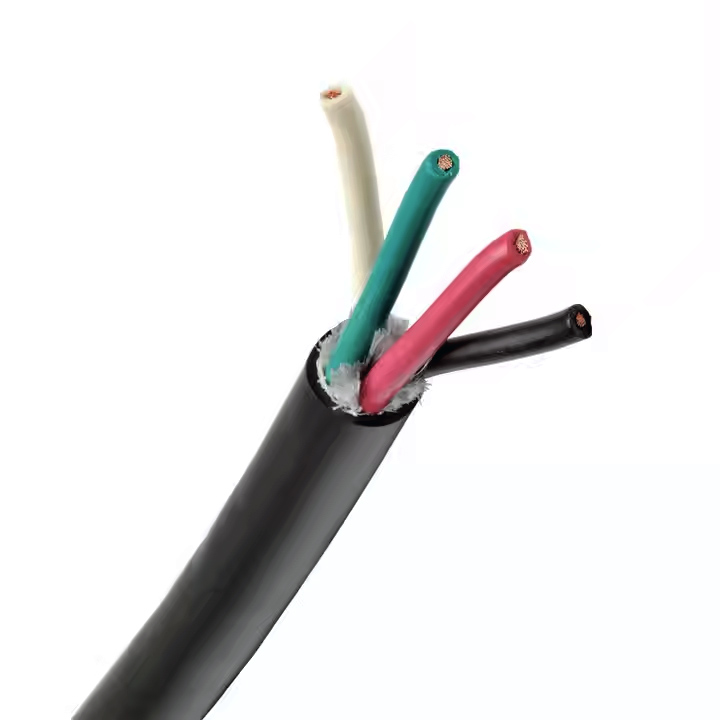

Construction

  1. Conductors: Stranded bare copper (6/8/10 AWG) for maximum flexibility

  2. Separator: Paper tape between conductor/insulation for easy stripping

  3. Insulation: Individual EPDM rubber layers (oil/water resistant)

  4. Assembly: Round cabling with fillers for structural integrity

  5. Jacket: Seamless black CPE for environmental protection

Material Properties

  • EPDM Insulation: Superior oil/water resistance, ozone resistance, and thermal stability

  • CPE Jacket: Exceptional UV/weather resistance, flame retardancy (VW-1), and abrasion protection

  • Copper Conductors: High conductivity with annealing for flexibility

Application Scenarios

  • Heavy Machinery: Cranes, hoists, construction equipment

  • Industrial Sites: Mining operations (MSHA compliant), oil refineries, processing plants

  • Outdoor Power: Shipyards, docks, festivals, temporary installations

  • High-Load Tools: Welding systems, large motors, industrial battery chargers

  • Hazardous Environments: Areas exposed to oils, solvents, moisture, or extreme temperatures

Product Advantages

  1. Unmatched Durability: Thermoset rubber construction withstands crushing, kinking, and repetitive motion

  2. All-Environment Performance: Operates reliably in rain, snow, oil spills, and UV exposure

  3. Safety Assurance: Triple-certified (UL/CSA/MSHA) with flame-retardant properties

  4. Optimized Conductivity: 6/8/10 AWG options support 25-50A+ loads (NEC Table 400.5)

  5. Cost Efficiency: Reduced replacement needs despite extreme conditions

  6. Easy Handling: Flexible design simplifies installation in tight spaces

Compliance & Certifications

  • UL 62 Listed | CSA C22.2 No. 49 Certified

  • MSHA Standard 30 CFR Part 18 (Mining)

  • NEC Article 400 Compliant | RoHS Directive 2011/65/EU

  • VW-1 Vertical Flame Test | FT2 Horizontal Flame Test
