H07V-R 450/750V Single-Core PVC Insulated Stranded Copper Cable | Class 2 Conductor

Product Overview

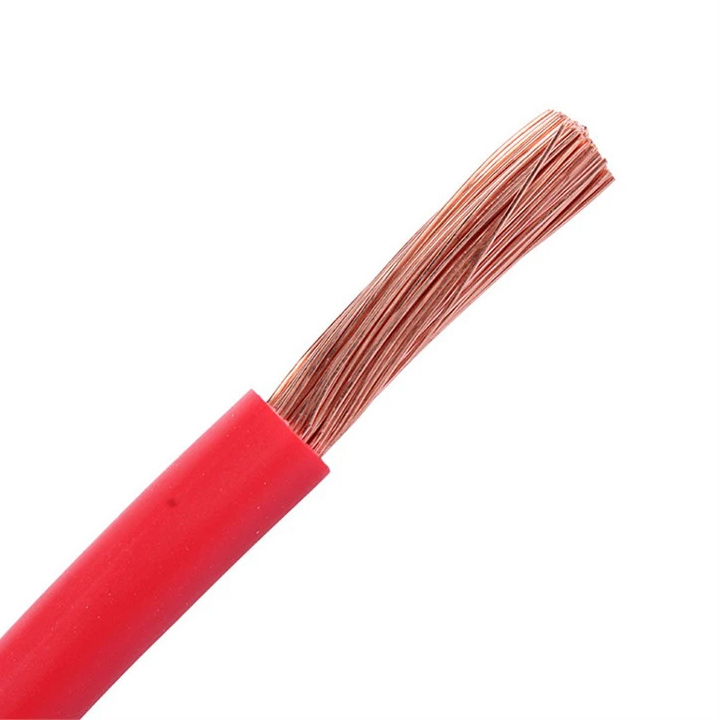

H07V-R is a single-core, PVC-insulated cable with stranded copper conductors (Class 2 per IEC 60228), rated at 450/750V. Designed for fixed installations in dry/damp environments, it delivers reliable power distribution for residential, commercial, and industrial electrical systems.

Key Standards & Approvals

  • Voltage Rating: 450/750V (U₀/U)

  • Standards: Harmonized (HD 516), IEC 60228, CE-LVD compliant

  • Temperature Range:

    • Continuous: -30°C to +70°C

    • Short Circuit: +160°C (max. 5s)

  • Flame Retardancy: PVC Type TI4 insulation

Construction

Component Specification
Conductor Class 2 stranded plain annealed copper (IEC 60228)
Insulation PVC Type TI4
Core ID Green/yellow (PE), blue (N), brown (L), grey, black, or custom colors

Technical Parameters

Parameter Value
Test Voltage 2,500V AC
Bending Radius ≤25mm: 4×OD; >25mm: 6×OD
Insulation Resistance ≥0.0027 MΩ·km (70°C)
Fire Performance IEC 60332-1 compliant

Engineering Selection Data

Conductor (mm²) Insulation Thickness (mm) Outer Diameter (mm) Min–Max Min. Insulation Resistance (MΩ·km)
1.5 0.7 2.7–3.3 0.010
2.5 0.8 3.3–4.0 0.0099
4 0.8 3.8–4.6 0.0082
6 0.8 4.3–5.2 0.0070
10 1.0 5.6–6.7 0.0067
16 1.0 6.4–7.8 0.0056
25 1.2 8.1–9.7 0.0053
50 1.4 10.6–12.8 0.0046
95 1.6 14.1–17.1 0.0039
150 1.8 17.3–20.9 0.0035
240 2.2 22.0–26.6 0.0034
400 2.6 27.5–33.2 0.0031
630 2.8 34.0–41.1 0.0027

Material Properties

  • Conductor Flexibility: Class 2 stranding balances durability and moderate bendability.

  • Insulation Durability: Resists abrasion, moisture, oils, and UV degradation (indoor use).

  • Electrical Safety: High dielectric strength (2.5kV AC test).

  • Thermal Stability: Maintains integrity at 70°C continuous load.

Application Scenarios

  • Power Distribution: Fixed wiring in switchboards, junction boxes, and control panels.

  • Lighting Systems: Circuit connections in commercial/residential buildings.

  • Industrial Equipment: Internal wiring for motors, transformers, and HVAC units.

  • Installation Methods:

    • Conduits, trunking, cable trays

    • Surface-mounted clips (protected areas)

    • Not Suitable: Direct burial, outdoor exposure, or wet locations.

Installation Notes

  1. Bending Radius:

    • ≤25mm OD: Min. 4×OD

    • 25mm OD: Min. 6×OD

  2. Ambient Temperature: ≥0°C during installation.

  3. Protection: Mandatory conduit/trunking for mechanical and environmental protection.

  4. Compliance: Install per IEC 60364/BS 7671 and local regulations.

⚠️ Critical Reminder: Non-sheathed design requires secondary containment. Unsuitable for dynamic/vibration-prone applications.
