Product Overview

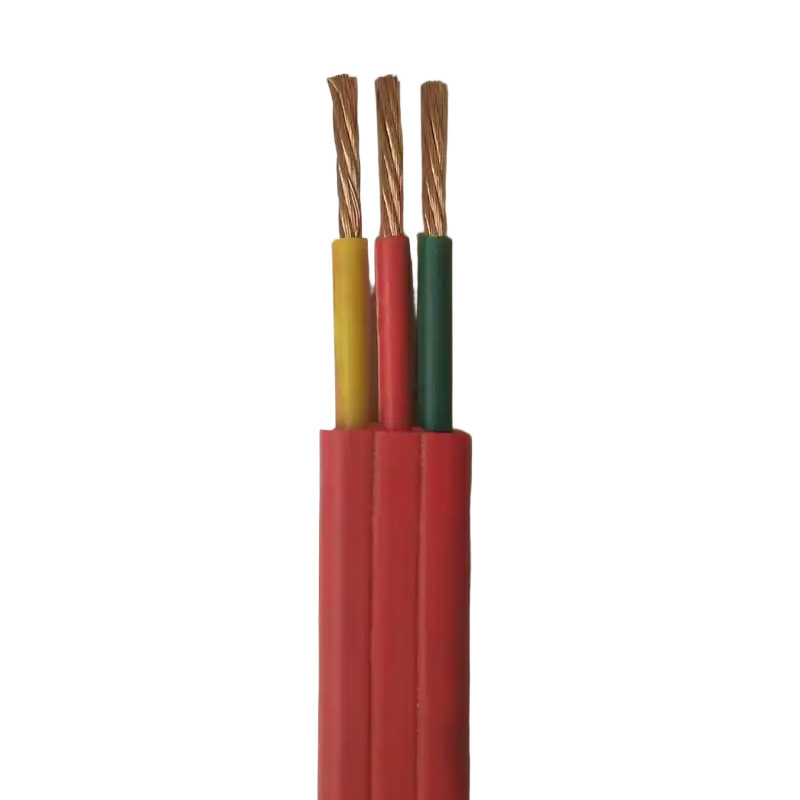

Silicone Rubber Sheathed Flat Cable delivers reliable power transmission in extreme industrial environments requiring continuous movement, flexibility, and temperature resilience. Designed for casting cranes, harbor machinery, and mobile trolleys, it operates at 0.6/1 kV AC voltage. The flat profile optimizes space utilization in cable carriers/tracks while resisting twisting.
Key Features & Benefits
-
Extreme Temperature Performance
-
Operating range: -60°C to +180°C
-
Stable electrical properties in high-heat/cold environments
-
Minimum installation temperature: -25°C
-
-
Robust Material Properties
-
High-temperature/cold flexibility (-60°C rating)
-
Oil, chemical, and corrosion resistance
-
Abrasion/tension resistance with reinforced options
-
Anti-aging silicone sheath for extended service life
-
-
Optimized Mechanical Design
-
Flat structure for easy laying in carriers/tracks
-
Torsion-resistant construction
-
Space-efficient routing in confined areas
-
-
Electrical Reliability
-
Rated voltage: U<sub>0</sub>/U 0.6/1 kV
-
Stable performance under dynamic stress
-
Application Scenarios
-
Metallurgy: Casting cranes, furnace chargers
-
Port Operations: Ship-to-shore cranes, RTGs
-
Energy: Power plant maintenance trollies
-
Chemicals/Oil: Refinery mobile units
-
Automation: AGVs, drag chains, heavy trolleys
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV AC |
| Max Temp | +180°C |
| Min Ambient Temp | -60°C (fixed installation) |
| Min Install Temp | -25°C |
| Standards | IEC 60227/60245, EN 50525 series |
| Conductor | Tinned copper (high-flex stranding) |
| Shielding | Optional tinned copper braid (P suffix) |
Product Structure & Models
| Model Code | Insulation | Shielding | Product Name |
|---|---|---|---|
| YGGB | Silicone Rubber | None | Silicone Insulated/Sheathed Flat Cable |
| YGCB-VFR | Nitrile Rubber | None | Nitrile/Silicone Flat Cable |
| YGCB-AF46R | FEP (F46) | None | F46/Silicone Flat Cable |
| YGCPB | Silicone Rubber | Braided | Shielded Silicone Flat Cable |
| YGCB-VFRP | Nitrile Rubber | Braided | Shielded Nitrile/Silicone Flat Cable |
| YGCB-AF46RP | FEP (F46) | Braided | Shielded F46/Silicone Flat Cable |
Code Key:
-
Y: Mobile series
-
G: Silicone rubber
-
VF(R): Nitrile rubber
-
B: Flat type
-
P: Tinned copper braid shield
-
F46: FEP insulation
Customization Options
-
Core Configurations: Custom conductor sizes/core counts
-
Tension Reinforcement: Steel wires integrated between cores (denoted -nT, e.g., YGGB-4T)
-
Width Optimization: Tailored to cable carrier dimensions
-
Shielding: EMI/RFI protection for sensitive environments
