Hook Up Wire – UL1015 | PVC Insulated 600V | UL-Listed for Electronics & Appliances

Product Overview

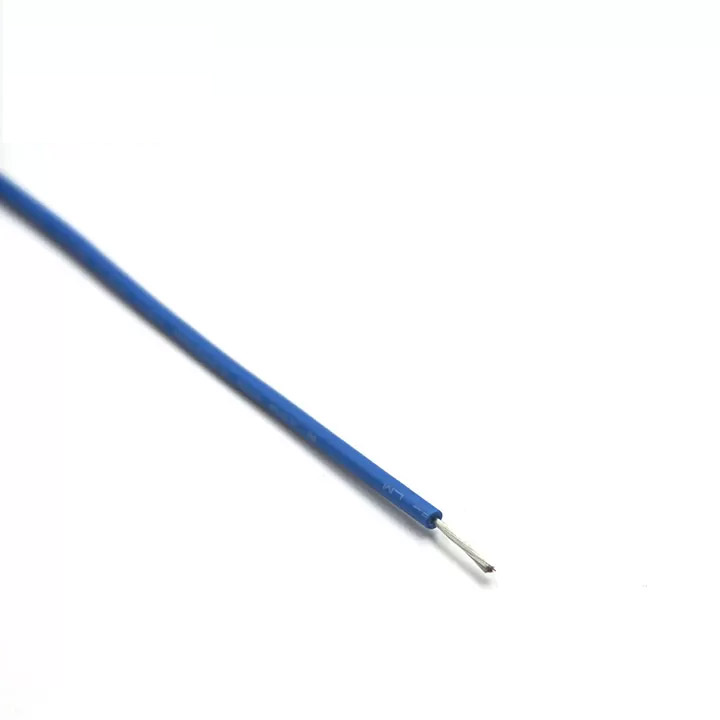

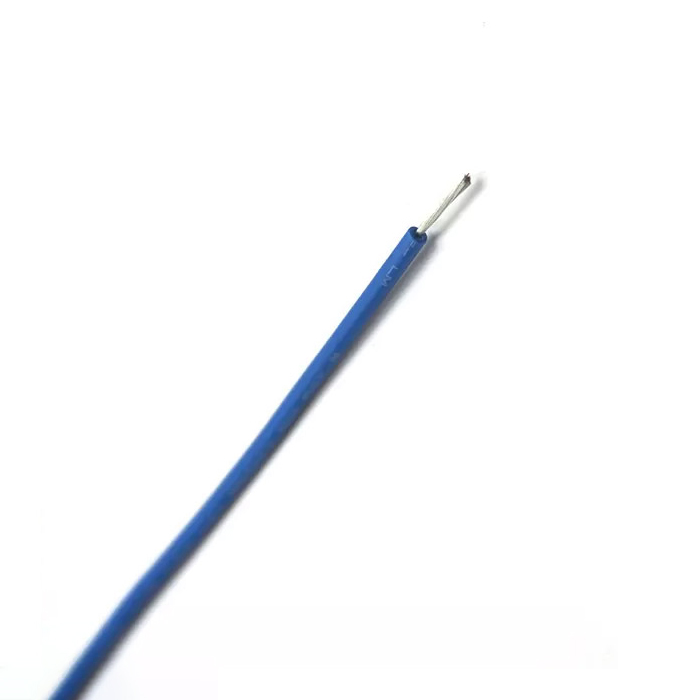

UL1015 Hook Up Wire is a versatile, UL-listed electrical wire designed for internal wiring in appliances, electronics, control panels, and industrial equipment. Featuring PVC insulation and available in tinned or bare copper conductors, this wire operates at 600V and withstands temperatures from -40°C to +105°C. Its durable construction ensures reliable performance in point-to-point wiring, cable assemblies, and data/electronic equipment, making it a staple for engineers and technicians.

Key Features

  • UL Certification: Compliant with UL 1015/AWM 1015 standards for safety and reliability.

  • Temperature Resilience: Operates in extreme conditions (-40°C to +105°C).

  • Conductor Options: Stranded/solid tinned copper (corrosion-resistant) or bare copper (cost-effective).

  • Flexible PVC Insulation: 0.031" thickness for mechanical protection and easy stripping.

  • Wide Compatibility: Ideal for low-voltage circuits, prototypes, and OEM applications.

Construction Details

Component Specification
Conductor Tinned copper (T) or bare copper (B), stranded/solid (per part number).
Insulation PVC (polyvinylchloride), 0.031" nominal thickness.
Voltage Rating 600V AC.
Temperature Range -40°C to +105°C (continuous operation).
Color Options Standard colors available (customizable upon request).

Technical Specifications

  • Standards Compliance: UL 1015, AWM 1015.

  • Conductor Sizes: 30 AWG to 10 AWG (stranded/solid).

  • Insulation Resistance: ≥20 MΩ·km at 20°C.

  • Flame Rating: VW-1 flame-retardant (UL 1581).

  • Cold Flexibility: Passes cold bend test at -40°C.

Applications

UL1015 Hook Up Wire is engineered for:

  • Electronics: Circuit boards, sensors, and consumer electronics.

  • Industrial Controls: Panel wiring, relays, and PLC systems.

  • Appliances: Internal wiring for HVAC units, refrigerators, and microwaves.

  • Automotive: Diagnostic tools, aftermarket electronics, and prototyping.

  • Renewable Energy: Solar inverters, battery connections, and charge controllers.

  • DIY Projects: Hobbyist circuits, robotics, and educational kits.

Installation Guidelines

  • Bending Radius: Minimum 3x wire diameter to avoid insulation cracking.

  • Stripping: Use precision strippers to prevent conductor nicking.

  • Termination: Secure with crimp connectors or soldering for stable connections.

  • Temperature Limits: Avoid prolonged exposure above 105°C.

  • Prohibited Uses: Not for direct burial, wet locations, or high-voltage systems.

Why Choose UL1015 Hook Up Wire?

  • Reliability: UL certification ensures consistent quality and safety.

  • Durability: PVC insulation resists abrasion, acids, and mild chemicals.

  • Cost-Effective: Competitive pricing for bulk OEM orders.

  • Versatility: Suitable for prototyping, repairs, and mass production.

  • Easy Identification: Color-coded insulation simplifies circuit tracing.
