Product Overview

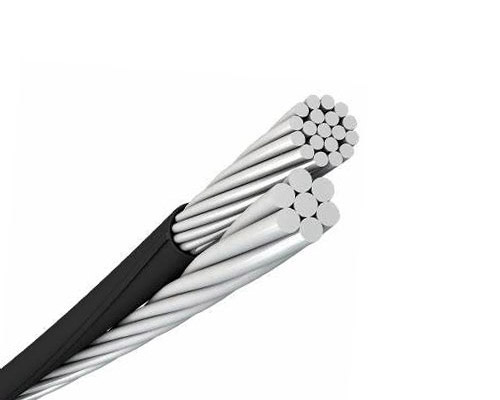

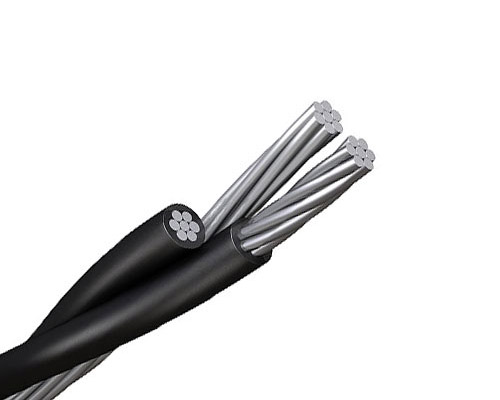

SDW Service Drop Cable is a robust aerial power cable designed for outdoor electrical distribution, temporary construction sites, and street lighting applications. Featuring concentric-stranded aluminum conductors with polyethylene (PE) or cross-linked polyethylene (XLP) insulation, this cable meets ASTM and ANSI/ICEA S-76-474 standards. Rated for 600V operation, it delivers reliable performance in harsh environments with temperature resistance up to 75°C (PE) or 90°C (XLP), making it ideal for overhead power delivery and temporary service installations.
Key Features
-
Aerial Durability: Reinforced aluminum conductors withstand tension and environmental stress.
-
Temperature Resilience: XLP insulation supports 90°C continuous operation for high-load applications.
-
Versatile Neutral Options: Neutral messenger available in 6201 aluminum alloy, AAC, or ACSR configurations.
-
Compliance Assurance: Meets ASTM B-230, B-231, B-232, B-399, B-901, and ANSI/ICEA S-76-474.
-
Weather Resistance: PE/XLP insulation protects against UV, moisture, and abrasion.

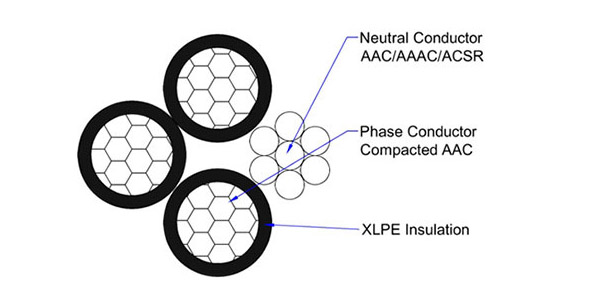

Construction Details
| Component | Specification |
|---|---|
| Conductor | Concentrically stranded, compressed 1350-H19 aluminum (ASTM B-230/B-231). |
| Insulation | Polyethylene (PE) or cross-linked polyethylene (XLP). |
| Neutral Messenger | 6201 aluminum alloy, AAC, or ACSR (ASTM B-232/B-399 compliant). |
| Voltage Rating | 120V (aerial) / 600V (general). |
| Temperature Range | PE: -40°C to +75°C; XLP: -40°C to +90°C. |
| Stranding | Compressed round stranded (ASTM B-901). |
Technical Specifications
-
Standards Compliance: ASTM B-230, B-231, B-232, B-399, B-901; ANSI/ICEA S-76-474.
-
Conductor Sizes: 6 AWG to 1000 kcmil (customizable).
-
Insulation Thickness: Meets ANSI/ICEA requirements for voltage rating.
-
Tensile Strength: Reinforced neutral messenger supports aerial spans up to 300 ft.
-
Environmental Resistance: UV-stable, moisture-proof, and abrasion-resistant.
Applications
SDW Service Drop Cable is engineered for:
-
Temporary Construction Sites: Aerial power distribution for tools and lighting.
-
Street Lighting: Overhead wiring for municipal and commercial lighting systems.
-
Outdoor Power Networks: Farmsteads, rural electrification, and renewable energy projects.
-
Emergency Power: Temporary installations for disaster recovery or events.
-
Industrial Facilities: Overhead feeds to machinery in open-air plants.
Installation Guidelines
-
Span Length: Limit aerial spans to ≤300 ft with proper pole support.
-
Bending Radius: Minimum 10x cable diameter during installation.
-
Clearance: Maintain NEC-recommended clearance from obstacles and ground.
-
Neutral Grounding: Bond neutral messenger to grounding system per local codes.
-
Prohibited Uses: Not for direct burial or continuous submersion in water.
Why Choose SDW Service Drop Cable?
-
Cost Efficiency: Aluminum conductors reduce material costs vs. copper.
-
Longevity: XLP insulation extends service life in high-temperature environments.
-
Flexibility: Multiple neutral configurations adapt to project requirements.
-
Safety Compliance: Meets ASTM and ANSI/ICEA standards for reliable performance.
-
Easy Deployment: Lightweight design simplifies aerial installation.
