Product Overview
Bus Drop Cable is a specialized electrical cable designed for connecting stationary equipment to busways in industrial and commercial settings. Rated for 600V and continuous operation at 60°C, it features stranded copper conductors, color-coded PVC insulation, and a durable gray PVC jacket. Compliant with NEC 364-8 and UL standards, this cable provides reliable power distribution while resisting grease, oils, and lubricants commonly found in machinery environments.
Key Features
-
Oil & Chemical Resistance: Gray PVC jacket protects against grease, oils, and industrial fluids.
-
Flexible Design: Stranded copper conductors ensure easy routing and termination.
-
Code Compliance: UL Listed and meets NEC 364-8 for branch wiring from busways.
-
Color-Coded Insulation: Simplified phase identification for quick installations.
-
Round Construction: Filler materials maintain cable roundness for secure conduit placement.

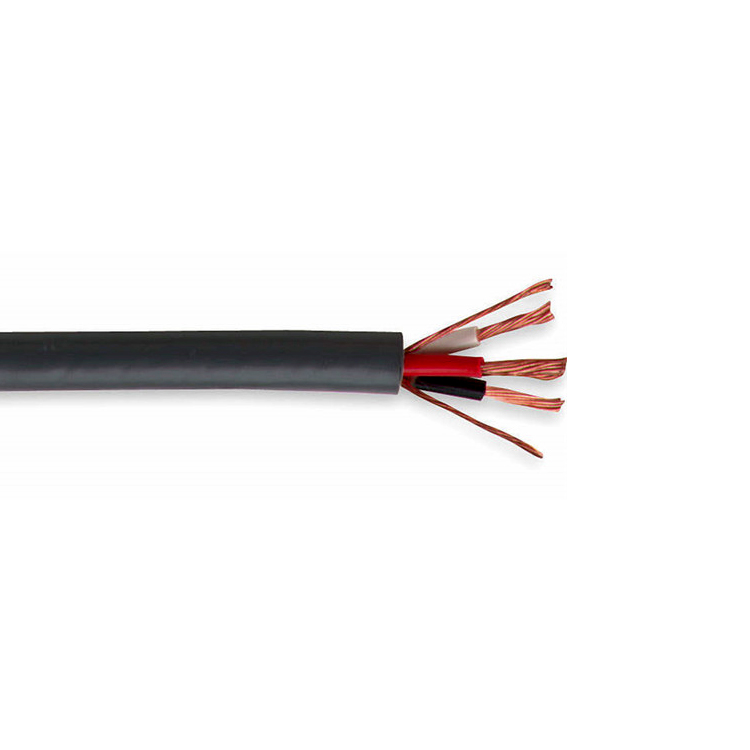

Construction Details
| Component | Specification |
|---|---|
| Conductor | Bare stranded copper (ASTM compliant). |
| Insulation | Color-coded PVC (polyvinyl chloride). |
| Filler | Non-conductive materials to ensure round cable profile. |
| Ground Wires | Stranded copper, positioned between insulated conductors. |
| Jacket | Gray PVC, oil and abrasion resistant. |
| Voltage Rating | 600V AC. |
| Temperature Range | Up to 60°C (continuous operation). |
Technical Specifications
-
Standards Compliance: NEC 364-8, UL Listing.
-
Conductor Sizes: Customizable per application (standard sizes available).
-
Insulation Thickness: Meets UL requirements for voltage rating.
-
Flame Resistance: Self-extinguishing PVC per UL VW-1 test.
-
Environmental Resistance: Oil, grease, and mild chemical resistant.
Applications
Bus Drop Cable is engineered for:
-
Industrial Machinery: Power connections for CNC machines, presses, and conveyors.
-
Manufacturing Facilities: Busway drops to assembly lines and robotic systems.
-
Commercial Buildings: Electrical distribution in HVAC systems and lighting panels.
-
Oil & Gas Plants: Equipment in environments exposed to lubricants and hydraulic fluids.
-
Data Centers: Auxiliary power feeds for server racks and UPS systems.
Installation Guidelines
-
Bending Radius: Minimum 5x cable diameter to prevent insulation damage.
-
Temperature Limits: Do not exceed 60°C during continuous operation.
-
Securing: Use UL-listed clamps or ties in compliance with NEC spacing requirements.
-
Grounding: Connect stranded ground wires to equipment grounding points.
-
Prohibited Uses: Not for direct burial, wet locations, or flexible/mobile applications.
Why Choose Bus Drop Cable?
-
Reliability: UL certification ensures consistent performance and safety.
-
Durability: PVC jacket withstands harsh industrial environments.
-
Ease of Use: Color-coded insulation simplifies wiring and reduces errors.
-
Cost Efficiency: Long service life with minimal maintenance requirements.
-
Compliance: Meets NEC and UL standards for code-approved installations.
