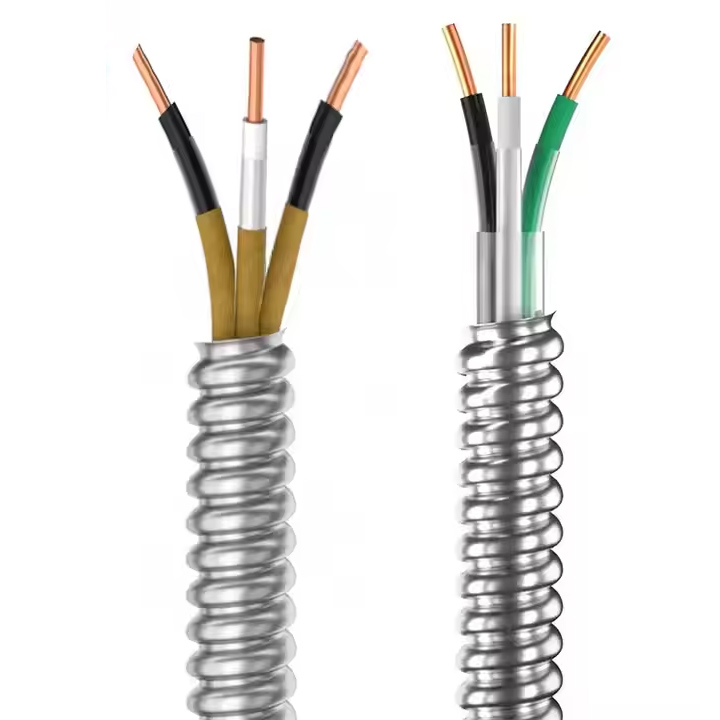

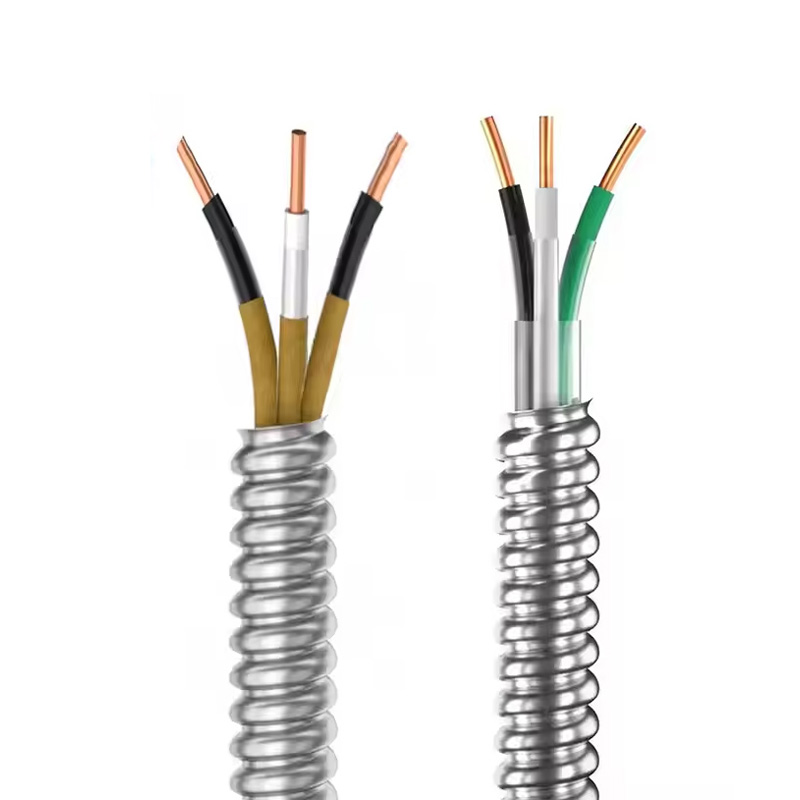

Metal-Clad Cable Certified for Canada Type AC90 | XLPE Insulated | 600V Interlocked Steel Armor

Product Overview

Type AC90 Metal-Clad (MC) Cable is a CSA-certified armored cable designed for reliable power distribution in dry commercial, industrial, and institutional environments. Combining interlocked steel armor with XLPE-insulated copper conductors, this cable meets stringent Canadian standards (C22.2 No. 51) and delivers exceptional mechanical protection, cold resistance (-40°C), and high-temperature performance (90°C). Ideal for concealed or exposed wiring in cable troughs, ventilated pathways, and ceiling fixtures, it ensures compliance with UL, RoHS, and hazardous location flame tests (FT4).

Key Features

• Interlocked Steel Armor: Heavy-duty steel tape provides robust physical protection and grounding via a bare copper bonding wire.

• XLPE Insulation (RW90): Low-temperature cross-linked polyethylene insulation ensures flexibility and durability in extreme cold (-40°C).

• CSA Certification: Compliant with C22.2 No. 51, UL C22.2 No. 131, No. 38, and No. 2256.

• Hazardous Location Rating: UL FT4 flame test certified for vertical tray fire resistance (70,000 Btu/hr).

• RoHS Compliance: Lead-free and environmentally safe construction.

• Direct Burial Option: Available with SUN RES outer jacket upon request.

Construction Details

Technical Specifications

• Standards Compliance: CSA C22.2 No. 51, UL C22.2 No. 131/38/2256, RoHS, FT4 Flame Test.

• Conductor Sizes: 2, 3, or 4 solid copper conductors (custom sizes available).

• Insulation: RW90-rated XLPE for cold resistance and thermal stability.

• Optional Jackets: SUN RES UV-resistant outer/inner jackets (request for direct burial).

• Flame Retardancy: Meets FT4/IEEE 1202 vertical flame propagation standards.

Applications

Type AC90 Cable is engineered for:

• Commercial/Industrial Wiring: Concealed or exposed installations in dry locations.

• Cable Trays & Ventilated Pathways: Approved for use in cable troughs and flexible raceways.

• Ceiling Fixtures: Certified for lighting and ceiling-mounted systems.

• Hazardous Locations: UL FT4-rated for vertical flame resistance in risk environments.

• Outdoor Use: Direct burial capability with SUN RES jacket (upon request).

• Cold Environments: Reliable performance down to -40°C with proper handling.

Installation Guidelines

• Bending Radius: Minimum 7x cable diameter to prevent armor deformation.

• Temperature Limits: Install at ≥ -40°C using cold-weather handling procedures.

• Grounding: Bond armor via the integrated bare copper wire per CSA/NEC standards.

• Prohibited Uses: Avoid wet locations unless equipped with SUN RES jackets.

• Direct Burial: Use SUN RES-jacketed cables for underground applications.

Why Choose Type AC90 Metal-Clad Cable?

• Durability: Steel armor resists impact, crushing, and environmental stress.

• Cold Flexibility: XLPE insulation maintains pliability in extreme cold.

• Regulatory Compliance: Meets CSA, UL, and RoHS requirements for Canadian markets.

• Versatility: Suitable for power, lighting, and fixed wiring in commercial/industrial settings.
