MC Cable with THHN Ground | Lightweight Aluminum Armor | 600V THHN/THWN Conductors

UL Certified commercial11
Description

MC Cable with THHN Ground | Lightweight Aluminum Armor | 600V THHN/THWN Conductors-Picture1

Product Overview

MC Cable with THHN Ground is a high-performance, cost-effective armored cable designed for power distribution and control circuits in commercial, industrial, and multi-residential settings. Featuring lightweight aluminum interlocked armor and UL-listed THHN/THWN copper conductors, this cable delivers durability, fire resistance, and compliance with NEC, UL, and IEEE standards. Its integrated green insulated grounding conductor ensures safe fault-current management, while the aluminum armor reduces weight by up to 45% compared to steel-clad alternatives.

Key Features

  • Lightweight Aluminum Armor: Interlocked aluminum construction provides robust mechanical protection with reduced weight for easier handling.

  • THHN/THWN Copper Conductors: Rated 90°C dry/75°C wet, available in 14 AWG to 2 AWG sizes for versatile power and control applications.

  • Integrated Grounding: Includes a green-insulated copper grounding conductor for NEC compliance.

  • Fire & Hazard Resistance: Meets FT4/IEEE 1202 flame test (70,000 Btu/hr) and UL firestop system certifications (1-3 hours).

  • Installation Efficiency: Saves up to 50% labor costs vs. conduit systems; reverse-wound on reels for pull-friendly deployment.

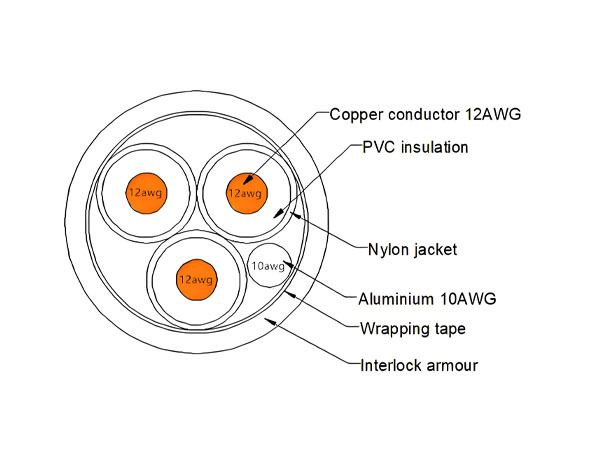

Construction Details

Component Specification
Armor Interlocked lightweight aluminum (UL 1569 compliant).
Conductors Soft-drawn copper, THHN/THWN insulation (90°C dry / 75°C wet rating).
Grounding Conductor Green-insulated copper (sized per NEC requirements).
Voltage Rating 600V AC.
Temperature Range -40°C to 90°C (dry) / -40°C to 75°C (wet).
Flame Test Compliance FT4/IEEE 1202 (Vertical Tray Flame Test).

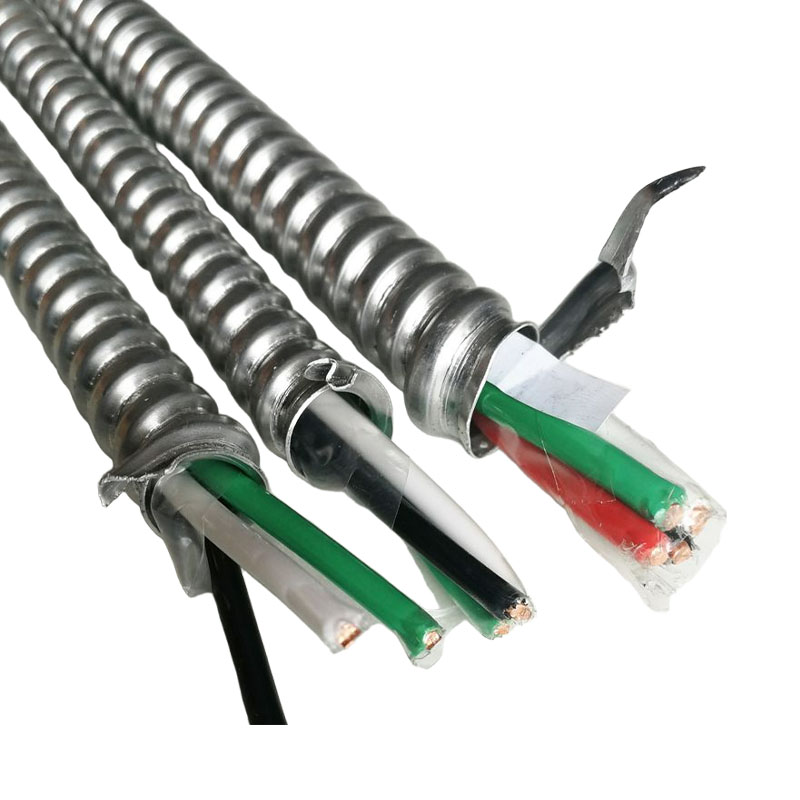

MC Cable with THHN Ground | Lightweight Aluminum Armor | 600V THHN/THWN Conductors-Picture2

Technical Specifications

  • Standards Compliance: UL 83, UL 1569, UL 1685, NEC, FT4/IEEE 1202, Federal Spec A-A59544.

  • Conductor Sizes: 14 AWG to 2 AWG.

  • Firestop Systems: UL-Classified for 1, 2, and 3-hour through-penetration systems (e.g., W-J-3037, C-AJ-3140).

  • Environmental Suitability: Dry and damp locations; rated for hazardous areas (Class I Div. 2, Class II Div. 2, Class III Div. 1).

Applications

MC Cable with THHN Ground is engineered for:

  • Commercial/Industrial Power: Branch circuits, feeders, and service entrances.

  • Hazardous Locations: Approved for Class I Div. 2, Class II Div. 2, and Class III Div. 1 installations.

  • Air-Handling Spaces: Compliant with NEC 300.22(C) for environmental air ducts.

  • Data Centers: Under raised floors for IT equipment (NEC 645.5(D)).

  • Assembly Areas & Theaters: Meets NEC 518.4 (Places of Assembly) and NEC 520.5 (Theaters).

  • Fire-Rated Systems: UL-listed for 1-3 hour firestop penetrations.

Installation Guidelines

  • Bending Radius: Minimum 7x cable diameter to maintain armor integrity.

  • Pulling: Reverse-wound on reels—pull from the inside of coils for smooth deployment.

  • Securing: Use NEC-compliant clamps at ≤ 4.5 ft intervals.

  • Grounding: Bond armor via the integrated green grounding conductor.

  • No Anti-Short Bushings Required: Compliant with UL and NEC standards.

  • Prohibited Uses: Avoid direct burial, wet locations, or corrosive environments unless specified.

Why Choose MC Cable with THHN Ground?

  • Cost Savings: Reduces labor and material costs vs. traditional conduit systems.

  • Safety: Fire-resistant design with UL-certified firestop compatibility.

  • Versatility: Suitable for power, lighting, control, and signal circuits.

  • Lightweight Design: Easier to handle and install than steel-armored cables.
