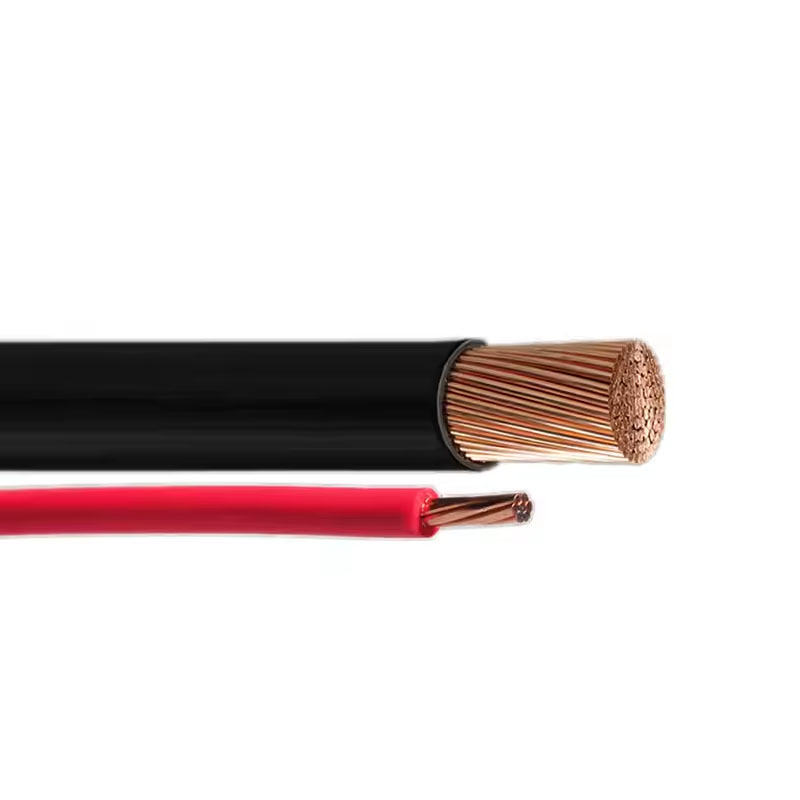

Product Overview
Copper RW90 600V XLPE Insulation Cable is a versatile, high-performance power distribution cable designed for both wet and dry environments. Featuring cross-linked polyethylene (XLPE) insulation and ASTM B800/B801-compliant stranded copper conductors, this cable meets stringent Canadian standards (CUL 44) and delivers exceptional thermal stability, abrasion resistance, and UV protection. Ideal for industrial, commercial, and outdoor installations, it operates reliably at temperatures up to 90°C with a 600V rating, ensuring safe and efficient power delivery in harsh conditions.
Key Features
-
XLPE Insulation: Heat, moisture, and abrasion-resistant for durability in wet/dry locations.
-
UV Resistance: Sunlight-resistant design for outdoor or exposed applications.
-
CSA Compliance: Certified to CUL 44 and Canadian Electrical Code (CEC) standards.
-
Flexible Conductors: Class B stranded soft-drawn copper ensures easy handling and installation.
-
Wide Temperature Range: Operates from -40°C to +90°C, suitable for extreme climates.

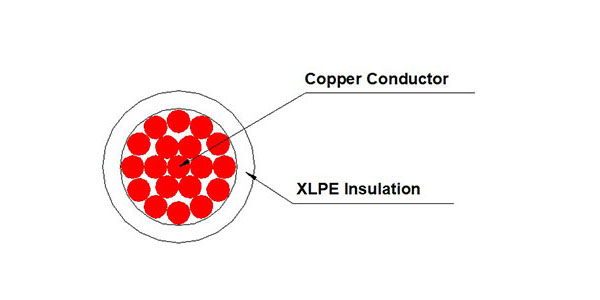

Construction Details
| Component | Specification |
|---|---|
| Conductor | Class B stranded bare copper (ASTM B800/B801 compliant). |
| Insulation | Cross-linked polyethylene (XLPE), RW90-rated (90°C). |
| Voltage Rating | 600V AC. |
| Temperature Range | -40°C to +90°C (operating). |
| Environmental Resistance | UV-resistant, moisture-proof, and abrasion-resistant. |
Technical Specifications
-
Standards Compliance: CUL 44, Canadian Electrical Code, ASTM B800/B801.
-
Conductor Sizes: Available in standard AWG sizes (customizable upon request).
-
Insulation Thickness: Meets RW90 requirements for thermal and mechanical protection.
-
Voltage Rating: 600V AC (phase-to-phase).
-
Flame Performance: Self-extinguishing properties per Canadian standards.
Applications
Copper RW90 XLPE Cable is engineered for:
-
Industrial Power Distribution: Feeders, branch circuits, and machinery wiring.
-
Outdoor Installations: Exposed wiring, solar farms, and outdoor lighting systems (UV-resistant).
-
Wet Locations: Pump stations, HVAC systems, and underground conduits (with proper jacketing).
-
Commercial Buildings: Dry/wet environments, including basements and parking garages.
-
Renewable Energy: Solar panel interconnects and wind turbine cabling.
Installation Guidelines
-
Bending Radius: Minimum 6x cable diameter to avoid insulation damage.
-
Temperature Limits: Install at ≥ -40°C with cold-weather handling procedures.
-
UV Exposure: Suitable for direct sunlight but recommend conduit use in prolonged outdoor exposure.
-
Grounding: Follow CEC/NEC guidelines for proper grounding practices.
-
Prohibited Uses: Not rated for direct burial unless additional protective jacketing is applied.
Why Choose Copper RW90 XLPE Cable?
-
Durability: XLPE insulation resists cracking, moisture, and chemical degradation.
-
Safety: Certified for Canadian markets with flame-retardant properties.
-
Cost Efficiency: Long service life reduces maintenance and replacement costs.
-
Versatility: Performs reliably in extreme temperatures and harsh environments.
- Copper RW90 600V XLPE Insulation Cable
Size AWG Stranding Conductor Diameter (in) Insulation Thickness (in) Overall Diameter (in) 14 7 0.073 0.03 0.133 12 7 0.092 0.03 0.158 10 7 0.116 0.03 0.18 8 7 0.146 0.045 0.24 6 7 0.184 0.045 0.28 4 7 0.232 0.045 0.328 3 7 0.26 0.045 0.355 2 7 0.292 0.045 0.38 1 7 0.332 0.055 0.434 1/0 19 0.373 0.055 0.473 2/0 19 0.419 0.055 0.517 3/0 19 0.47 0.055 0.567 4/0 19 0.528 0.055 0.623 250 37 0.575 0.065 0.705 300 37 0.63 0.065 0.76 350 37 0.681 0.065 0.811 400 37 0.728 0.065 0.858 500 37 0.813 0.065 0.943
