Product Overview
The UL 4703 Solar PV Cable is a premium single-conductor photovoltaic wire engineered for solar energy systems, offering reliable performance in both grounded and ungrounded photovoltaic (PV) applications. Certified for 600V, 1000V, and 2000V AC/DC systems, this cable combines exceptional environmental resistance with high-temperature tolerance, making it ideal for solar panel interconnections, balance of system (BOS) components, and demanding outdoor installations.
Key Features & Benefits
UL 4703 Certified – Compliant with UL 4703, UL 44 (RHW-2), and UL 854 (USE-2) standards for safety and durability.
Wide Voltage Range – Supports 600V, 1000V, or 2000V systems, adaptable to residential, commercial, and utility-scale solar projects.
Extreme Temperature Resistance – Operates in -40°C to +150°C (dry) and -40°C to +90°C (wet) conditions.
UV/Ozone Resistant – Cross-linked polyolefin (XLPO) insulation and sunlight-stabilized jacket ensure longevity in harsh outdoor environments.
Flame Retardant – VW-1 rated for vertical flame resistance, minimizing fire risks in PV arrays.
RoHS & IEC 62930 Compliant – Eco-friendly, free from hazardous substances.
Applications
-
PV Module Interconnections: Junction box wiring, panel-to-panel connections.
-
Balance of System (BOS): Inverters, combiners, charge controllers, and energy storage systems.
-
Outdoor/Indoor Routing: Direct burial, conduit, or exposed installations (code-compliant).
-
Solar Farms & Rooftops: Compatible with large-scale PV plants and residential solar setups.
Technical Specifications
Electrical Performance
-
Voltage Rating: 600V, 1000V, or 2000V AC/DC (select as per system design).
-
Insulation Resistance: ≥20 MΩ·km at 20°C.
-
Dielectric Strength: 6 kV AC withstand (5 minutes, no breakdown).
Conductor Options
-
Copper: 18 AWG – 2000 kcmil (stranded, tinned for corrosion resistance).
-
Aluminum/Copper-Clad Aluminum: 12 AWG – 2000 kcmil (lightweight, cost-effective).
Environmental & Mechanical Properties
-
Temperature Range:
-
Dry: -40°C to +150°C (copper) / +125°C (aluminum).
-
Wet: -40°C to +90°C.
-
-
Flame Resistance: Passes VW-1 vertical flame test.
-
UV Stability: Exceeds 720 hours of accelerated weathering (ASTM G154).
-
Cold Bend Test: Flexible at -40°C (no cracking).
Construction Details
-
Conductor:
-

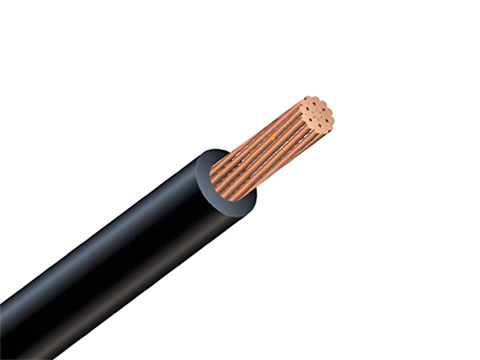

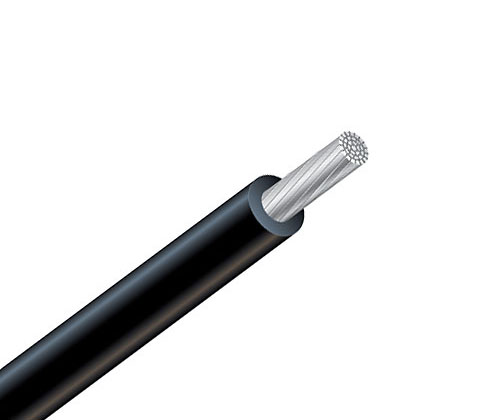

High-purity stranded copper (tinned or bare) or aluminum/copper-clad aluminum.
-
Low DC resistance for efficient power transmission.
-
-
Insulation:
-
Halogen-free, cross-linked polyolefin (XLPO) or thermoset material.
-
Resists heat, moisture, and chemical exposure (oil, acid, alkali).
-
-
Jacket:
-
Abrasion-resistant, sunlight-stabilized outer layer.
-
Flame-retardant additives for enhanced safety.
-
Compliance & Certifications
-
UL Standards: UL 4703 (Photovoltaic Wire), UL 44 (RHW-2), UL 854 (USE-2).
-
Environmental: RoHS 2.0, IEC 62930 (PV system compliance).
-
Safety: VW-1 flame rating, NEC Article 690 compliant.
Packaging & Ordering
-
Standard Lengths: 500 ft, 1000 ft, or custom spool sizes.
-
Color Options: Black, red, or custom colors (request for availability).
-
Certifications: UL, RoHS, and TÜV test reports provided upon request.
Why Choose UL 4703 Solar PV Cable?
Long Service Life: Engineered for 25+ years in extreme weather conditions.
Easy Installation: Stranded design ensures flexibility for complex routing.
Cost-Effective: Aluminum/copper-clad options reduce project costs without compromising performance.
Global Compliance: Meets NEC, IEC, and UL standards for worldwide deployment.
FAQs
Q: Can this cable be used for direct burial in solar farms?
A: Yes! The UV-resistant, moisture-proof jacket complies with direct burial requirements (check local codes).
Q: What distinguishes UL 4703 from USE-2 cables?
A: UL 4703 offers higher temperature ratings (+150°C dry) and superior flexibility, optimized for PV systems.
Q: Is tinned copper necessary for coastal installations?
A: Yes. Tinned copper resists saltwater corrosion, ideal for offshore or high-humidity environments.
