Product Overview

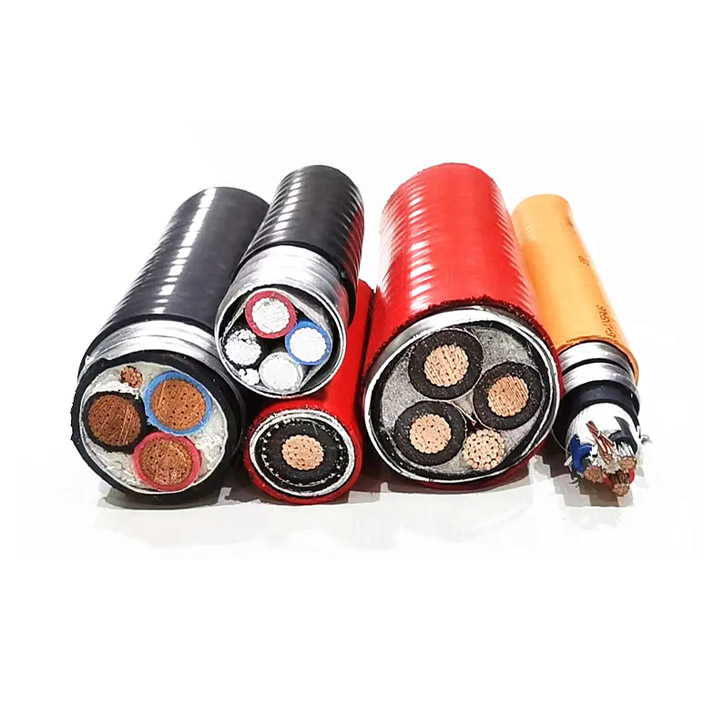

The TECK90 Armored Cable is a heavy-duty, multi-conductor cable designed for harsh industrial environments. Certified to CSA C22.2 No. 131 and CSA C22.2 No. 38, it combines interlocked aluminum armor with XLPE insulation, offering superior resistance to moisture, sunlight, and extreme temperatures.
Key Features
-
CSA-Certified: Complies with CSA C22.2 No. 131 (TECK90) and No. 38 (RW90).
-
Voltage Rating: 600V or 1000V for flexible power distribution.
-
Temperature Range: -25°C to 90°C (cold bend and high-temp resistant).
-
Conductor Options: Stranded copper or aluminum (Class B).
-
Environmental Resistance: UV, oil, moisture, and chemical-resistant PVC jacket.
-
Flame Retardancy: FT4 flame test approved.
Technical Specifications
| Parameter | Details |
|---|---|
| Voltage Rating | 600V or 1000V |
| Conductor | Stranded Copper (Class B) or Aluminum |
| Insulation | RW90 XLPE (Cross-Linked Polyethylene) |
| Armor | Aluminum Interlocked Armor (AIA) or Steel Tape |
| Jacket | UV-Resistant PVC (Black) |
| Temperature Range | Operating: -25°C to 90°C |
| Certifications | CSA C22.2 No. 131, CSA C22.2 No. 38, FT4 |
Applications
Heavy Industry
-
Steel Mills & Refineries: Power and control circuits in high-heat zones.
-
Chemical Plants: Corrosion-resistant wiring for hazardous areas.
-
Mining Operations: Durable power distribution in underground shafts.
Commercial & Infrastructure
-
Generating Stations: High-voltage feeder lines.
-
Food Processing: Moisture-resistant lighting and motor circuits.
Installation Guidelines
Approved Uses
-
Exposed/concealed wiring in wet/dry locations.
-
Ventilated/non-ventilated cable trays and ladder troughs.
-
Outdoor installations with direct sunlight exposure.
Prohibited Uses
-
❌ Direct burial without additional conduit.
-
❌ Temperatures exceeding 90°C.
Key Notes
-
Bending Radius: Follow CSA guidelines for aluminum armor (typically 12x cable diameter).
-
Grounding: Use included bare copper bonding conductor for safety.
Performance Advantages
-
Durability: Interlocked armor protects against physical damage and rodents.
-
Safety: FT4 flame rating prevents fire spread in vertical installations.
-
Flexibility: XLPE insulation maintains integrity in extreme cold (-25°C).
-
Cost Efficiency: Aluminum conductors reduce project costs for long runs.
FAQs
Q: Can TECK90 be used outdoors without conduit?
A: Yes. Its UV-resistant PVC jacket is rated for direct sunlight exposure.
Q: What’s the difference between AIA and steel tape armor?
A: AIA offers lighter weight and corrosion resistance; steel tape provides higher crush resistance.
Q: Is this cable suitable for Canadian mining applications?
A: Yes. It meets CSA standards for hazardous and wet environments.
Ordering Options
-
Conductor: Copper or Aluminum.
-
Voltage: 600V or 1000V.
-
Configuration: 2–4 conductors (black/white/red/blue).
