Product Overview

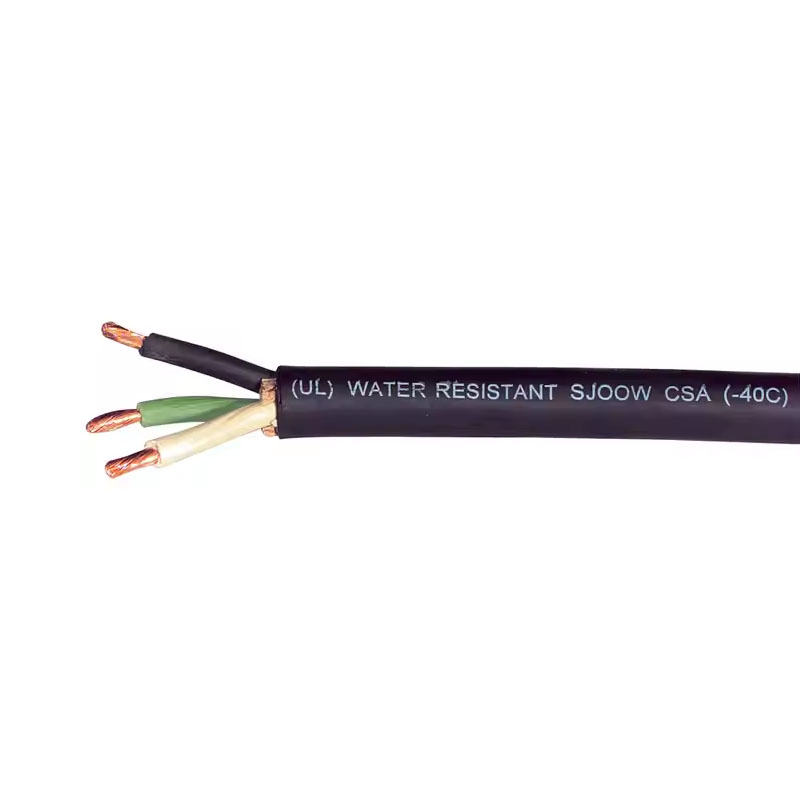

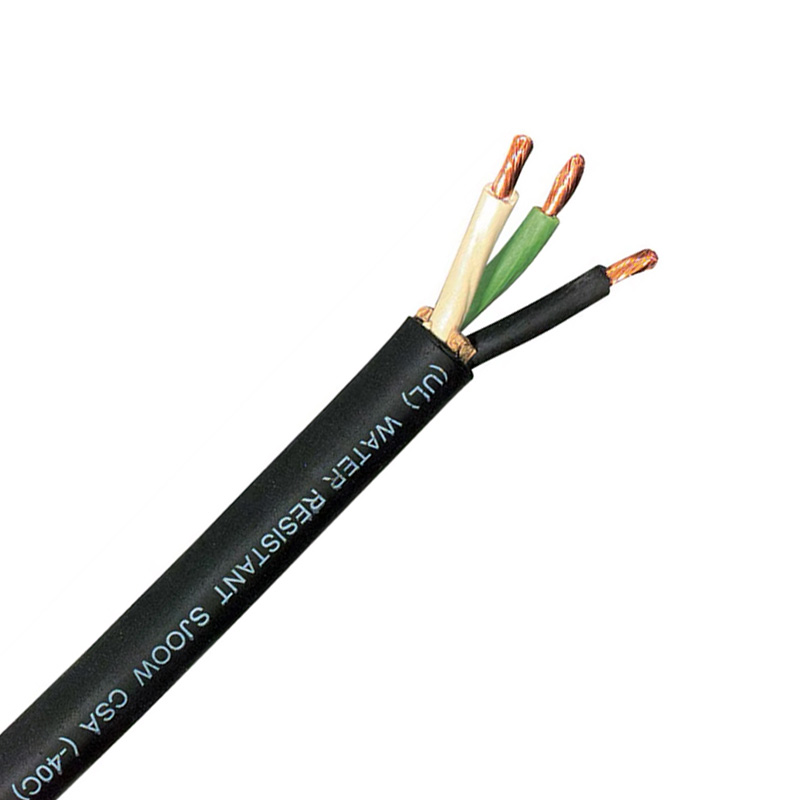

The SJOW/SJOOW Flexible Cords are versatile, heavy-duty cables designed for portable equipment and industrial tools. Certified to UL 62 and CSA C22.2 No. 49, these cords combine ethylene-propylene rubber (EPR) insulation with a durable CPE jacket, ensuring reliability in harsh environments.
Key Features
-
Dual Certification: Complies with UL 62 (USA) and CSA C22.2 No. 49 (Canada).
-
300V Rating: Safe for portable tools, appliances, and small motors.
-
Temperature Range: -40°C to 105°C (cold-flex and high-temp resistant).
-
Conductor: Stranded bare copper (18–2 AWG, ASTM B-174 compliant).
-
Environmental Resistance: Oil, water, and abrasion-resistant CPE jacket.
-
Flame Retardancy: FT1/FT2 flame test approved.
Technical Specifications
| Parameter | Details |
|---|---|
| Voltage Rating | 300V |
| Conductor | Annealed Stranded Copper (18–2 AWG) |
| Insulation | Ethylene-Propylene Rubber (EPR) |
| Jacket | Black CPE (Oil/Water-Resistant) |
| Temperature Range | Operating: -40°C to 105°C |
| Certifications | UL 62, CSA C22.2 No. 49, FT1/FT2 Flame Test |
Applications
Industrial & Workshop Use
-
Portable Tools: Drills, grinders, and welding machines.
-
Small Motors: Pumps, fans, and HVAC equipment.
-
Temporary Power: Generators and battery chargers on job sites.
Commercial & Residential
-
Appliance Wiring: Portable heaters, lighting, and kitchen equipment.
-
Outdoor Equipment: Agricultural tools and DIY projects.
Installation Guidelines
Approved Uses
-
NEC Article 400-compliant installations.
-
Wet, oily, or high-movement environments.
-
Indoor/outdoor portable equipment.
Prohibited Uses
-
❌ Permanent wiring (use fixed cables instead).
-
❌ Temperatures exceeding 105°C.
Key Notes
-
Bending Radius: Follow UL/CSA guidelines to avoid jacket damage.
-
Storage: Coil loosely to retain flexibility.
Performance Advantages
-
Durability: CPE jacket resists oil, chemicals, and abrasion.
-
Flexibility: Maintains pliability in extreme cold (-40°C).
-
Safety: Flame-retardant and low-smoke emission.
-
Cost-Effective: Reliable performance for high-use environments.
FAQs
Q: What’s the difference between SJOW and SJOOW?
A: SJOOW has an oil-resistant outer jacket, while SJOW is oil-resistant on both insulation and jacket.
Q: Can these cords be used outdoors?
A: Yes. The CPE jacket is UV- and weather-resistant.
Q: Are these cords suitable for wet locations?
A: Yes. They are water-resistant but not designed for prolonged submersion.
Ordering Options
-
Conductor Size: 18 AWG to 2 AWG.
-
Configuration: 2–5 conductors (black/white/green/red/orange).
-
Length: Standard 250ft reels or custom cuts.
Bulk discounts for industrial suppliers!
