Specifications
- Model: PV1-F / H1Z2Z2-K (EU PV Cable Standard)
- Rated Voltage:
- AC: 1kV
- DC: 1.5kV

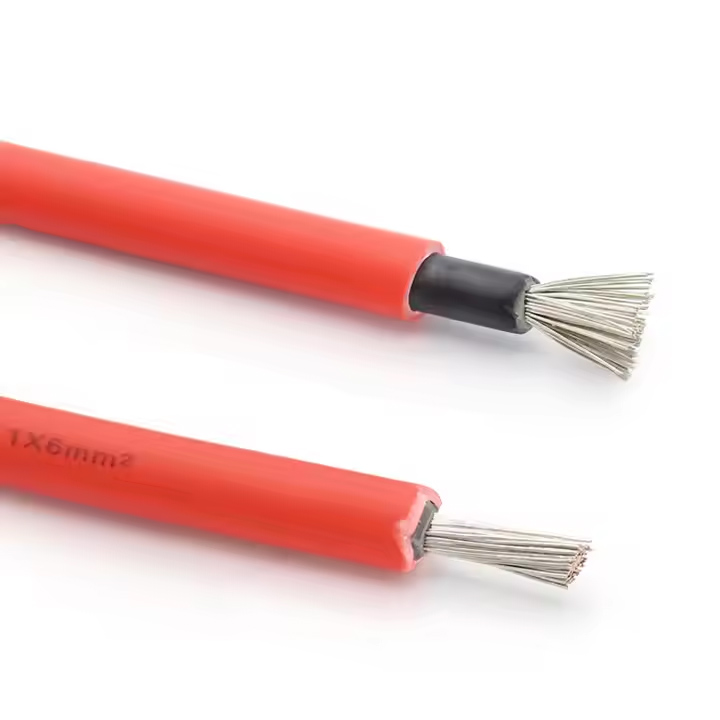

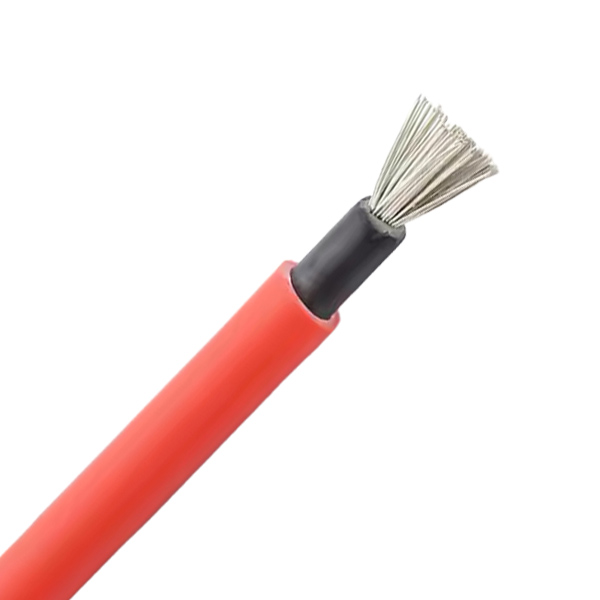

- Conductor:
- Material: Tinned Copper
- Structure: Stranded (Class 5/6 Flexible)
- Cross-Section: 4mm², 6mm², 10mm² (Customizable)
- Insulation: XLPE (Cross-Linked Polyethylene) or LSZH (Low Smoke Zero Halogen)
- Sheath:
- Material: UV-Resistant XLPO (Cross-Linked Polyolefin)
- Color: Standard Black/Red (Custom Colors Available)
Electrical Performance
- Operating Temperature: 90°C (Continuous), 120°C (Short-Circuit)
- Bending Radius: 5× Cable OD (Fixed), 6× Cable OD (Flexible)
- Voltage Test: 6.5kV AC / 15min (EN 50618 Compliant)
- Insulation Resistance: ≥ 20 MΩ·km (@20°C)
Mechanical & Environmental
- Weather Resistance:
- UV Stability: Passed EN 50618 & TÜV Aging Tests
- Ozone Resistance: IEC 60811-2-1 Certified
- Flame Rating:
- IEC 60332-1 (Single Vertical Flame Retardant)
- LSZH (IEC 60754 & IEC 61034 Compliant)
- Temperature Range: -40°C to +90°C (Extreme Climate Suitable)
Certifications & Standards
- International:
- EN 50618 (EU PV Cable Standard)
- TÜV 2 PfG 1169 (Germany)
- IEC 62930 (Global PV Cable Standard)
- RoHS & REACH (Environmental)
- Regional:
- CE (EU)
- UKCA (UK)
Typical Applications
- Interconnection of Solar PV Modules (DC Side)
- PV Arrays to Inverters
- Rooftop/Ground-Mounted Solar Farms
6. Comparison with Other Standards
| Feature | PV1-F/H1Z2Z2-K | UL 4703 PV Wire |
|---|---|---|
| Voltage | 1kV AC / 1.5kV DC | 600V/1kV/2kV DC |
| Conductor | Tinned Copper (Class 5/6) | Bare/Tinned Copper |
| Standard | EN 50618 / TÜV | UL 4703 / NEC 690 |
| Market | Europe, Middle East, Asia | Americas |
