Product Description
|
Product Name:
|
Solar Cable
|
|
Production Specification:
|
2.5mm2, 4mm2, 6mm2, 10mm2
|
|
Conductor Material:
|
Copper/Tinned Copper
|
|
Insulation Material:
|
XLPE(XLPO)
|
|
Color:
|
Red/Black/White
|
|
Temperature range:
|
-40℃~90℃
|
|
Rated Voltage:
|
AC0.6/1KV, DC1.0/1.8KV
|
Advantage:

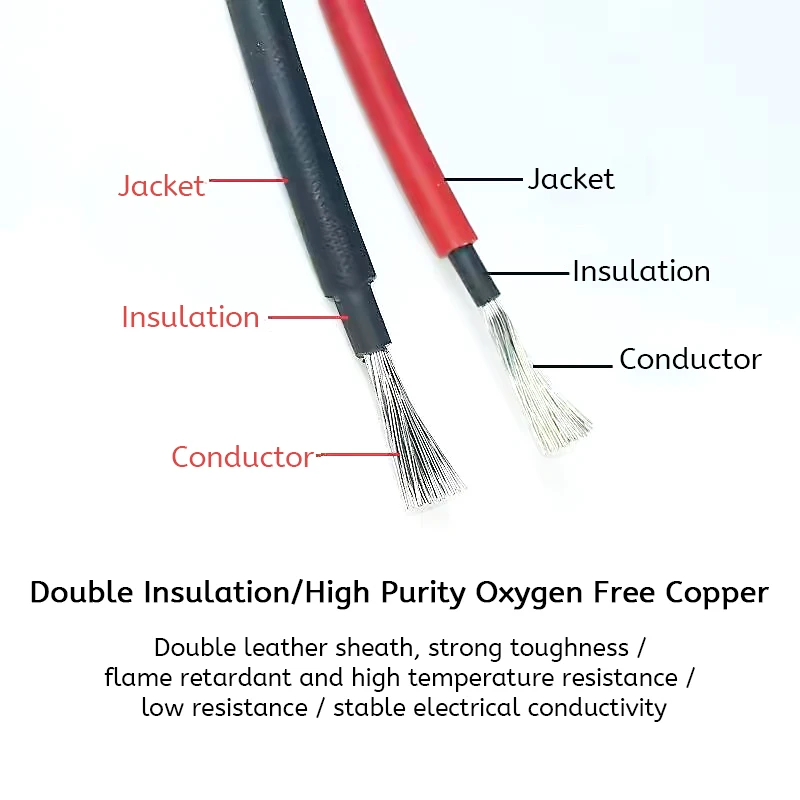

·Dual wall insulation.Electron beam cross-linked
·Excellent resistance to U.V,oil,greases,oxygen and ozone
·Excellent resistance to abrasion
·Halogen free, flame retardant,low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carring capacity
·TUV,CE approved
·Excellent resistance to U.V,oil,greases,oxygen and ozone
·Excellent resistance to abrasion
·Halogen free, flame retardant,low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carring capacity
·TUV,CE approved
Technical Parameter
|
Size
|
Cross Section
|
Conductor
Structure |
Outer
Diameter |
Max. DC Resistance
at 20℃ |
Rated Voltage
|
Rated
Current |
|
mm2
|
mm
|
mm
|
Ω/km
|
V
|
A
|
|
|
1x2.5mm2
|
2.5mm2
|
49xΦ0.25
|
5.1
|
8.06
|
1000/1500
|
30
|
|
1x4.0mm2
|
4.0mm2
|
56xΦ0.285
|
6.1
|
4.97
|
1000/1500
|
50
|
|
1x6.0mm2
|
6.0mm2
|
78xΦ0.3
|
6.4
|
3.52
|
1000/1500
|
70
|
|
1x10mm2
|
10mm2
|
74xΦ0.4
|
7.3
|
2.12
|
1000/1500
|
95
|
|
1x16mm2
|
16mm2
|
224xΦ0.3
|
10.2
|
1.24
|
1000/1500
|
132
|
|
Size
|
Cross Section
|
Conductor
Structure |
Outer
Diameter |
Max. DC Resistance
at 20℃ |
Rated Voltage
|
Rated
Current |
|
mm2
|
mm
|
mm
|
Ω/km
|
V
|
A
|
|
|

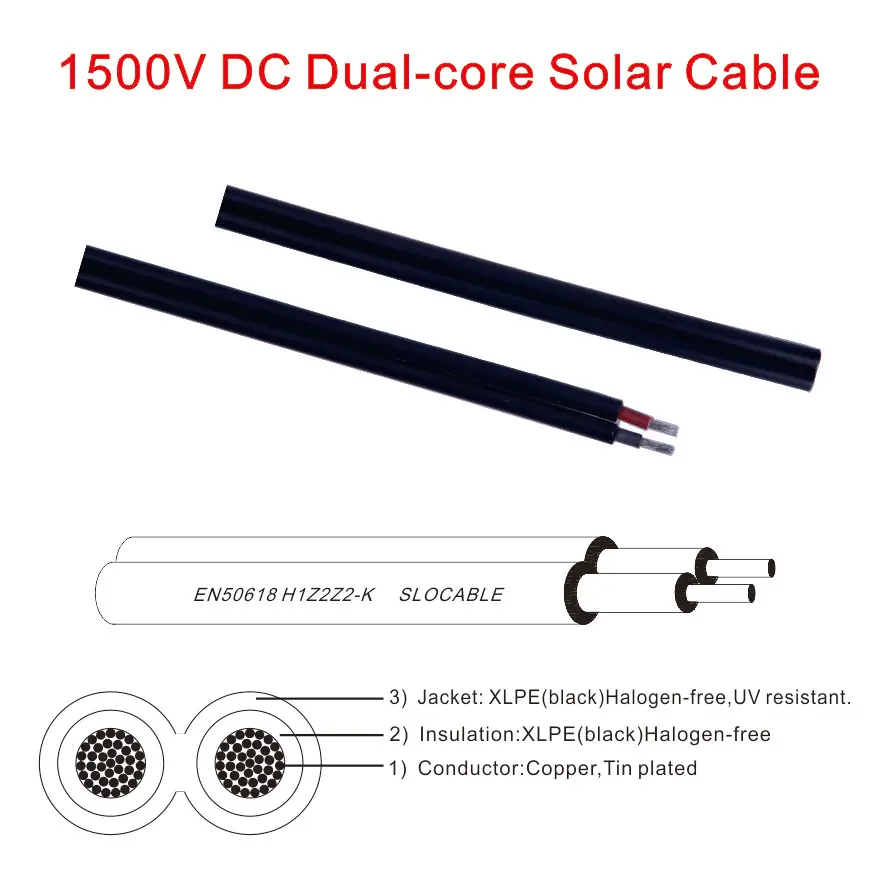

2x2.5mm2
|
2.5mm2
|
49xΦ0.25
|
5.1x10.9
|
8.06
|
1000/1500
|
30
|
|
2x4.0mm2
|
4.0mm2
|
56xΦ0.285
|
6.1x12.3
|
4.97
|
1000/1500
|
50
|
|
2x6.0mm2
|
6.0mm2
|
78xΦ0.3
|
6.4x12.9
|
3.52
|
1000/1500
|
70
|

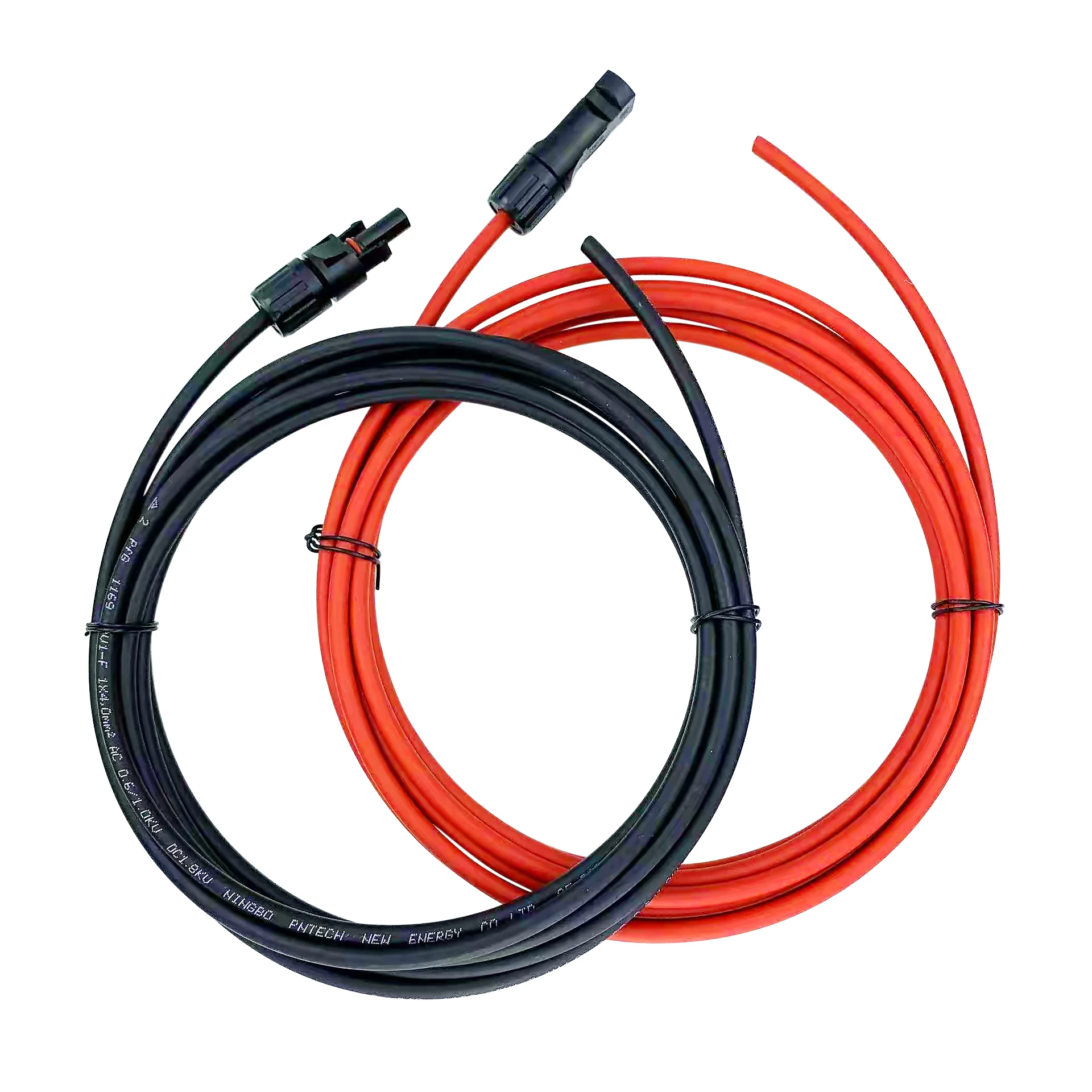

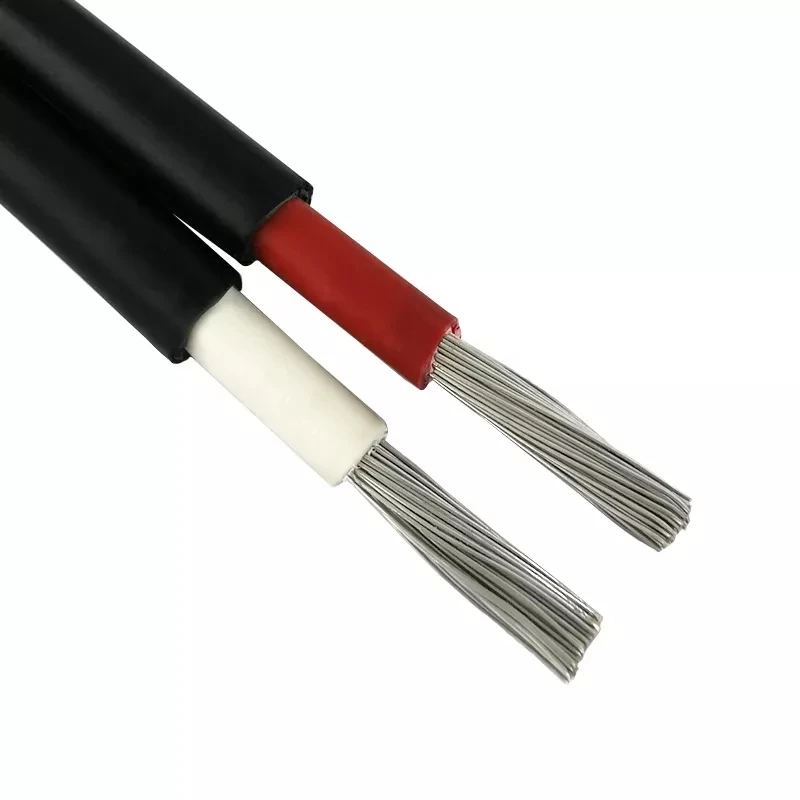

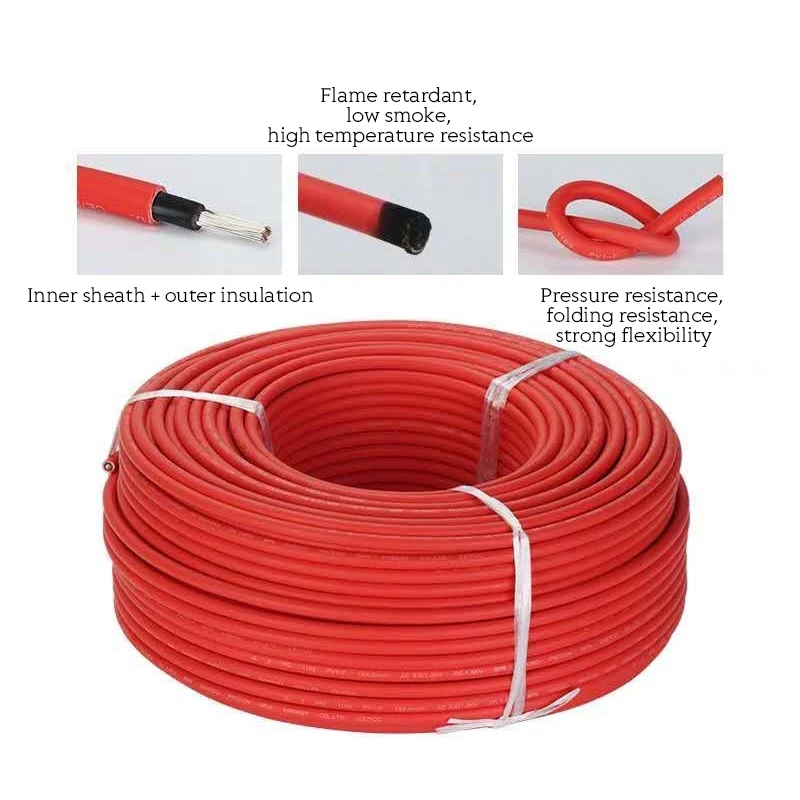

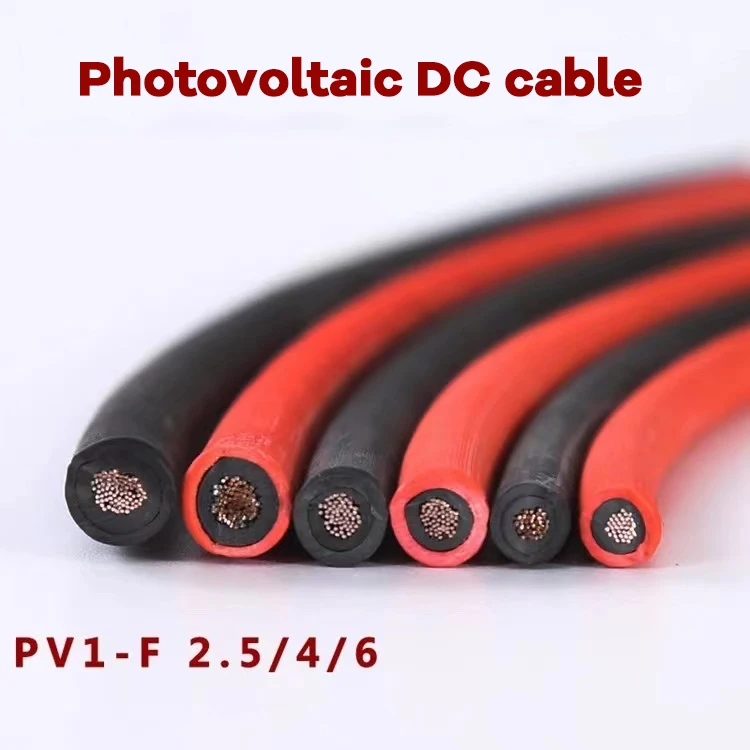

Products Show
