Fire Alarm Cable Multi-Paired, Unshielded, Non-Plenum CSA FAS105, FPL (UL), NEC Type PLTC

CSA-Approved UL/CUL5



Description

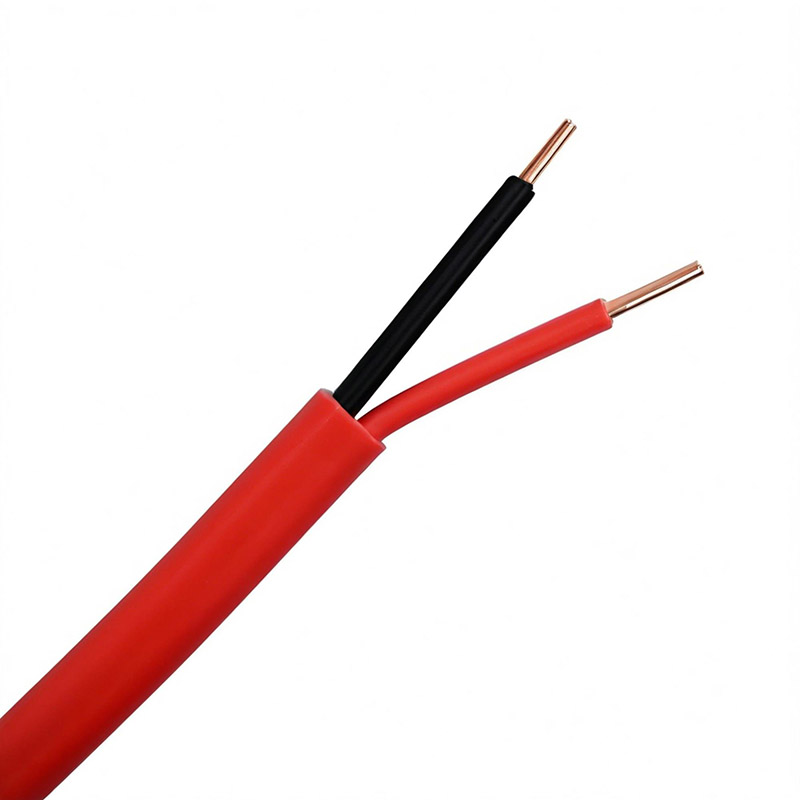

Fire Alarm Cable Multi-Paired, Unshielded, Non-Plenum CSA FAS105, FPL (UL), NEC Type PLTC-Picture1

PRODUCT OVERVIEW

This Multi-Paired Unshielded Fire Alarm Cable is engineered to deliver robust performance in fire detection and emergency communication systems. Compliant with CSA FAS105, UL FPL, and NEC Type PLTC standards, it ensures reliable signal transmission for fire alarms, smoke detectors, burglar alarms, and voice evacuation systems. The cable features UV-resistant, flame-retardant construction with a high-temperature rating, making it suitable for both indoor and outdoor installations.

KEY FEATURES

  • Certified Safety: Meets UL 70,000 BTU Vertical Tray Flame Test and CSA FT4 Vertical Flame Test.

  • Durability: UV-resistant jacket withstands harsh environmental conditions (1,000+ hours sunlight exposure).

  • High-Temperature Tolerance: Operational range from -20°C to +105°C.

  • RoHS & CE Compliant: Adheres to EU environmental and safety directives (2011/65/EU, 2006/95/EC).

  • Voltage Rating: 300V for stable low-voltage applications.

COMPLIANCE & CERTIFICATIONS

  • UL Standards: NEC Article 725 (PLTC), NEC Article 760 (Type FPL).

  • CSA Certification: FAS105, C22.2 No. 208-03 (Weather Resistant).

  • Flame Performance: Passes UL Vertical Tray Flame Test and CSA FT4 Flame Test.

  • Environmental Compliance: RoHS, CE Low Voltage Directive (LVD).

PRIMARY APPLICATIONS

  • Fire Alarm Systems: Central control panels, smoke detectors, and manual pull stations.

  • Emergency Communications: Voice evacuation and public address systems.

  • Security Infrastructure: Burglar alarms and access control circuits.

  • Building Safety: Fire protection circuits in commercial, industrial, and residential buildings.

  • Installation Environments: Conduits, trays, or direct burial (non-plenum spaces).

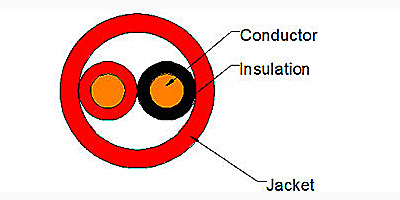

CONSTRUCTION DETAILS

1. Conductor

  • Material: Fully annealed solid bare copper (ASTM B3 compliant).

  • Sizes: 22 AWG or 18 AWG options for flexible design needs.

  • Configuration: Precision-twisted pairs to minimize crosstalk.

2. Insulation

  • Material: Premium color-coded PVC for easy identification.

  • Color Code: Compliant with Fire Alarm Cable standards.

3. Jacket

  • Material: UV-resistant, flame-retardant PVC.

  • Color: Standard red for quick visual identification in emergency systems.

Fire Alarm Cable Multi-Paired, Unshielded, Non-Plenum CSA FAS105, FPL (UL), NEC Type PLTC-Picture2

TECHNICAL PARAMETERS

Parameter Specification
Voltage Rating 300V
Temperature Range -20°C to +105°C
Conductor Options 22 AWG / 18 AWG
Flame Retardancy UL 70,000 BTU / CSA FT4 Certified
Standards UL, CSA, NEC, RoHS, CE

ENVIRONMENTAL & INSTALLATION SPECIFICATIONS

  • UV Resistance: Certified for outdoor use with sunlight-resistant jacket.

  • Flexibility: Suitable for tray, conduit, or exposed runs (non-plenum areas).

  • Chemical Resistance: PVC jacket resists oils, moisture, and abrasion.

WHY CHOOSE THIS CABLE?

  • Reliability: Engineered for mission-critical fire safety systems.

  • Compliance: Exceeds industry standards for flame spread and environmental resilience.

  • Versatility: Ideal for mixed-use facilities requiring voice/data integration.
