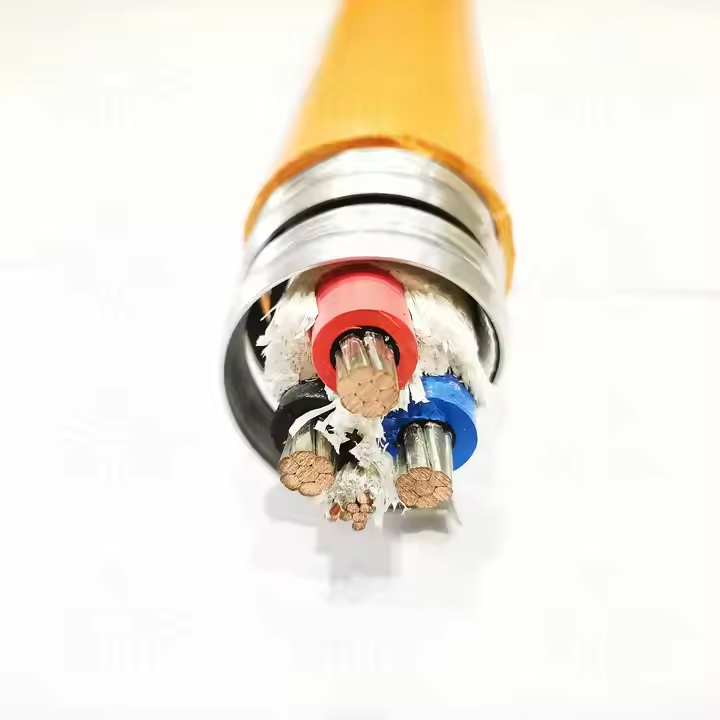

CSA TECK90 (Copper, XLPE, Aluminum Armor, FT4, Sun-Resistant, Direct Burial)-Picture1CSA TECK90 (Copper, XLPE, Aluminum Armor, FT4, Sun-Resistant, Direct Burial)-Picture1

Product Name:

CSA TECK90 Power Cable – Copper Conductor, XLPE Insulation, Aluminum Interlocked Armor (AIA), FT4 Flame Rated, Sunlight Resistant, Direct Burial, -40°C to 90°C, HL/AG14 Rated

Key Features:

✔ Conductor: Bare annealed copper (ASTM B8), RW90-rated (XLPE insulation)
✔ Armor: Aluminum Interlocked Armor (AIA) (Standard) | Steel Interlocked Armor (SIA) (Optional)
✔ Jacket: FR LAG PVC (AG14-rated), inner & outer black, oil/gasoline resistant
✔ Flame Rating: FT4 (IEEE 1202/CSA FT4), passes IEEE 383 (70,000 BTU) & ICEA T-29-520 (210,000 BTU)
✔ Temperature Range: -40°C to 90°C (wet/dry)
✔ Voltage Rating: 600V / 1000V / 5000V
✔ Installation: Direct burial (concrete encasement compatible), sunlight resistant
✔ Standards:

  • UL 1569 (US/Canada)
  • C(UL) TECK90 (Certified for Canada)
  • ICEA S-95-658 / NEMA WC-70
  • RoHS Compliant

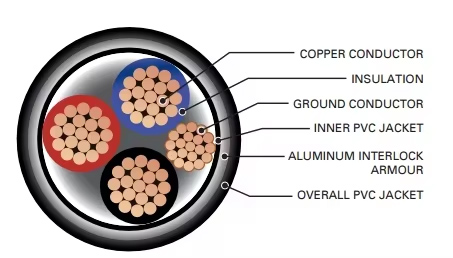

Construction:

  1. Stranded bare copper conductors (14 AWG – 1000 kcmil)
  2. XLPE insulation (RW90-rated)
  3. Polyester separator tape
  4. FR LAG PVC inner jacket
  5. Aluminum interlocked armor (AIA) (or optional steel armor, SIA)
  6. FR LAG PVC outer jacket

CSA TECK90 (Copper, XLPE, Aluminum Armor, FT4, Sun-Resistant, Direct Burial)-Picture2

Applications:

  • Industrial power distribution
  • Underground (direct burial) installations
  • Cable trays, conduits, and exposed runs
  • Harsh environments (oil, sunlight, moisture resistance)
