Teck 90 Cable (2×12+12 AWG) – Canadian Market Specification
CUL Listed | Aluminum Interlocked Armor | 600V Rating | CSA C22.2 No. 131-16 Compliant
1. Key Features
- Certification: CUL (Canada UL) + CSA Standard
- Voltage Rating: 600V
- Conductor Configuration: 2×12 AWG (phase) + 1×12 AWG (ground)
- Armor Type: Aluminum Interlocked Armor (AIA)
- Temperature Range: -40°C to +90°C (wet/dry)
- Jacket Color: Black (standard), other colors optional

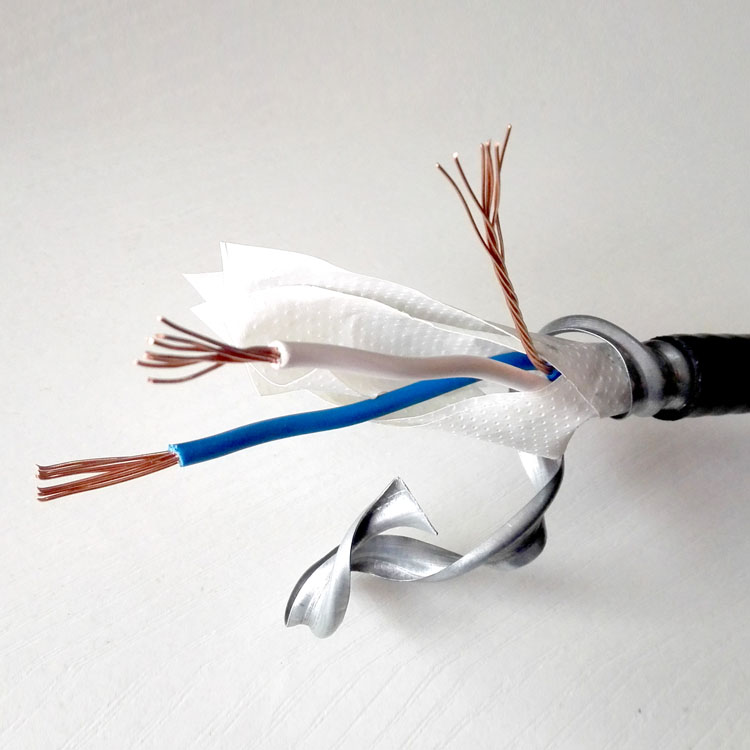

2. Construction Details
| Layer | Material/Specification |
|---|---|
| Conductors | 12 AWG stranded copper (Class B) |
| Insulation | XLPE (Cross-Linked Polyethylene) |
| Grounding Conductor | 12 AWG bare copper (CSA compliant) |
| Inner Jacket | PVC (oil-resistant) |
| Armor | Aluminum Interlocked (AIA) |
| Outer Jacket | Black PVC (sunlight-resistant) |
3. Electrical & Mechanical Properties
- Voltage Rating: 600V AC
- Ampacity: 25A (90°C in free air, per CEC Table 2)
- Bending Radius: Min. 7× cable diameter
- Crush Resistance: ≥2000 lbs/ft (per CSA testing)
- Flame Rating: FT4 (CSA FT1 optional)
4. Canadian Market Compliance
- Standards:
- CSA C22.2 No. 131-16 (Type Teck 90)
- CEC (Canadian Electrical Code) Part I
- Approvals:
- CUL Listed (LR No. XXXXXX)
- RoHS compliant
5. Typical Applications
- Industrial: Oil & gas, mining, pulp/paper plants
- Commercial: Service entrance feeders, panel wiring
- Installation: Cable trays, direct burial, exposed/concealed
6. Packaging & Identification
- Drum Length: 100m, 250m, or custom
- Marking:
- "Teck 90 600V 2×12+12 AWG CUL" printed on jacket
- Ground conductor identified by green stripe (if insulated)
