TECK 90 Cable Technical Specification
Rated up to 5000V | Copper/Aluminum Conductors | XLPE Insulation
1. Product Overview
- Voltage Rating: 600V / 1000V / 5000V
- Conductor Options:
- Copper: 14 AWG – 2000 kcmil
- Aluminum: 12 AWG – 2000 kcmil
- Insulation: Thermoset or thermoplastic
- Temperature Range: -40°C to +90°C

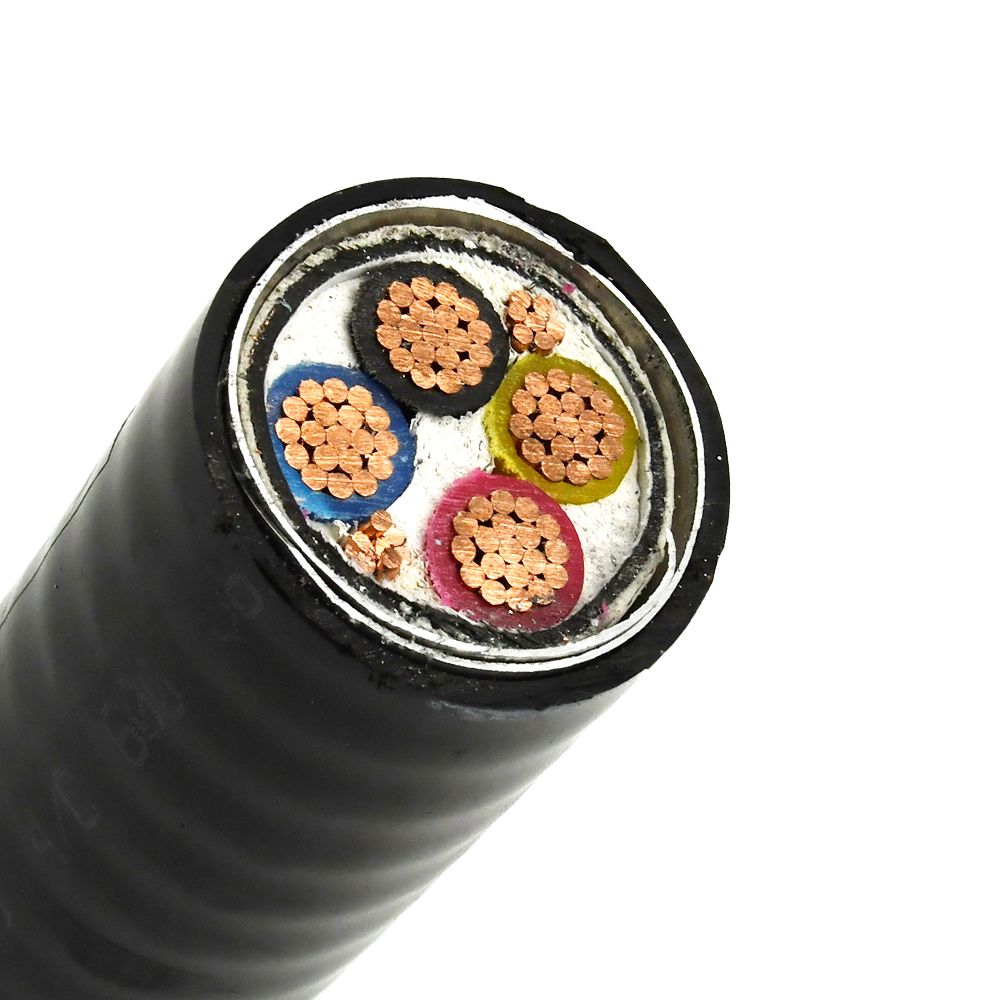

2. Construction Details
| Component | Specification |
|---|---|
| Conductor | Class B stranded copper |
| Insulation | XLPE (Cross-Linked Polyethylene) |
| Color Coding | 2/C: Black/White 3/C: Red/Black/Blue 4/C: Red/Black/Blue/White 5/C+: Black with numbering |
| Grounding | Uninsulated Class B stranded conductor |
| Assembly | Fillers + binder tape |
| Inner Jacket | PVC |
| Armor | Aluminum Interlocked Armour (AIA) |
| Outer Jacket | Black PVC (custom colors available) |
3. Dimensional Data
| Conductor Size (AWG) | Cores | Grounding Size (AWG) | Inner Jacket (in) | Armor (in) | Outer Jacket (in) |
|---|---|---|---|---|---|
| 14 | 2 | 14 | 0.361 | 0.565 | 0.651 |
| 14 | 3 | 14 | 0.382 | 0.592 | 0.672 |
| 12 | 2 | 12 | 0.396 | 0.606 | 0.680 |
4. Key Features
✔ High Voltage: Suitable for 5000V applications
✔ Flexible Armor: AIA for mechanical protection
✔ Wide Temp Range: -40°C to +90°C operation
✔ Color-Coded: Easy phase identification
