Product Overview

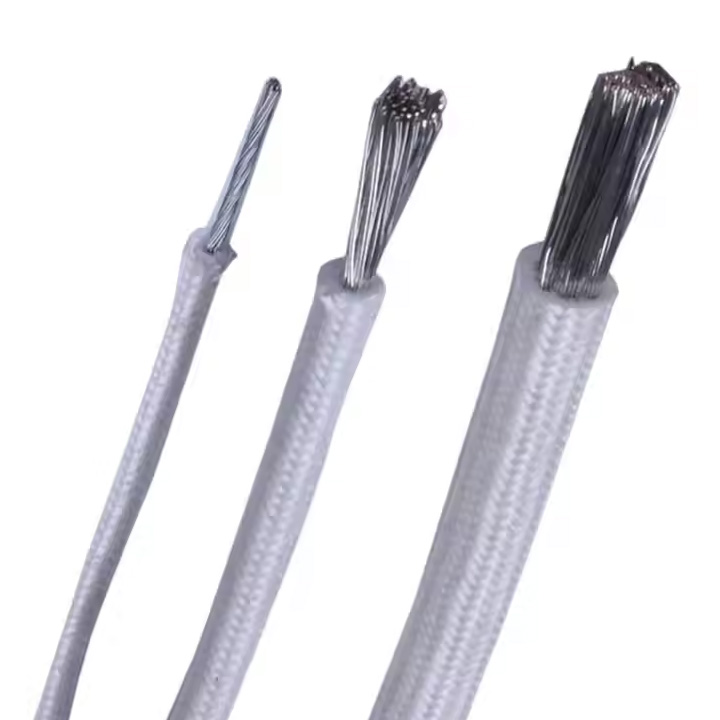

Engineered for extreme thermal environments, our Silicone Fiberglass Braided Cable delivers unmatched 300°C continuous heat resistance. Featuring oxygen-free tinned copper conductors, silicone insulation, and reinforced fiberglass braiding, this cable is the optimal solution for industrial ovens, heating equipment, and high-temperature appliances where standard wires fail.
Key Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 300V/500V AC |
| Temp Range | -60°C to +300°C Continuous |
| Conductor | Tinned Oxygen-Free Copper |
| Insulation | Silicone Rubber |
| Certification | RoHS, REACH Compliant |
Construction & Technical Data
| Size (mm²) | Conductor Structure | Ø Conductor (mm) | Insulation Thickness (mm) | Fiberglass Thickness (mm) | Ø Finished (mm) | Max Resistance 20°C (Ω/km) |
|---|---|---|---|---|---|---|
| 4 | 56/0.30 | 2.7 | 0.65 | 0.25 | 4.5 | 5.09 |
| 6 | 84/0.30 | 3.3 | 0.7 | 0.25 | 5.2 | 3.39 |
| 10 | 84/0.40 | 4.6 | 0.8 | 0.25 | 6.9 | 1.95 |
| 16 | 126/0.40 | 5.8 | 0.9 | 0.25 | 8.1 | 1.24 |
| 25 | 196/0.40 | 7.3 | 1.0 | 0.30 | 9.9 | 0.795 |
| 35 | 276/0.40 | 8.6 | 1.1 | 0.30 | 11.4 | 0.565 |
| 50 | 396/0.40 | 10.7 | 1.2 | 0.30 | 13.7 | 0.393 |
| 70 | 360/0.50 | 12.4 | 1.2 | 0.30 | 15.4 | 0.277 |
(Custom sizes 0.3mm² to 240mm² available)
Triple-Layer Construction
-
Conductor:
-
Oxygen-free copper strands (tin-plated)
-
Prevents oxidation at high temperatures
-
Optimized stranding for flexibility
-
-
Insulation:
-
High-grade silicone rubber
-
Maintains flexibility at 300°C
-
Excellent dielectric properties
-
-
Protection:
-
Woven fiberglass braid
-
Abrasion and mechanical damage resistance
-
Additional thermal barrier
-
Critical Performance Features
-
Extreme Heat Endurance
Continuous operation at 300°C (572°F) - exceeds standard silicone cables -
Thermal Shock Resistance
Withstands rapid temperature cycling (-60°C to 300°C) -
Non-Toxic & Odorless
Safe for food processing and household appliances -
Flame Retardant
Self-extinguishing properties (UL94 V-0 equivalent) -
Chemical Resistance
Withstands oils, solvents, and steam
Industrial Applications
-
Heating Systems: Industrial ovens, pizza ovens, kilns, furnaces
-
Appliance Manufacturing: Toasters, coffee makers, HVAC systems
-
Automotive: Engine bay wiring, exhaust sensors, turbochargers
-
Lighting: Halogen fixtures, stage lighting, grow lights
-
Energy: Solar thermal systems, boiler controls
-
Manufacturing: Plastic injection molding, die-casting machines
Engineering Advantages
-
Extended Service Life
5x longer lifespan than PVC cables at 150°C+ environments -
Abrasion Resistance
Fiberglass braid protects against mechanical wear -
Easy Installation
Maintains flexibility even at sub-zero temperatures -
Safety Compliance
Meets IEC 60317-48 for high-temperature insulation
Selection Guide
| Application | Recommended Size | Temp Requirement |
|---|---|---|
| Oven Heating Elements | 4-6mm² | 200-300°C |
| Industrial Furnace Wiring | 10-16mm² | 250-300°C |
| Motor Connections | 25-35mm² | 150-200°C |
| Power Feeds | 50-70mm² | 150-250°C |

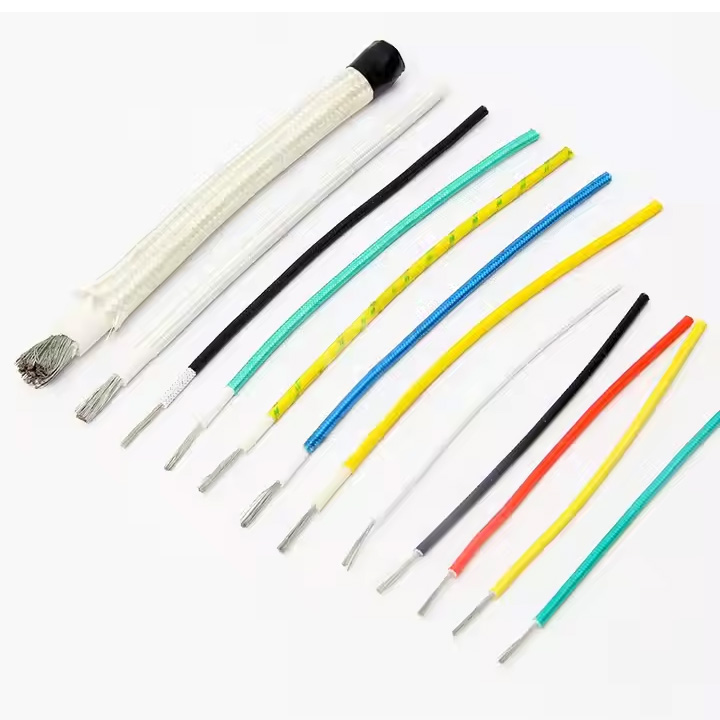

Custom lengths, colors, and termination options available
