Product Overview
Low Smoke Zero Halogen (LSZH) armored cables with copper conductors, XLPE insulation, steel/aluminum wire armor, and LSZH sheathing. Designed for 600/1000V power distribution in high-risk environments where fire safety and toxic fume prevention are critical. Complies with international fire safety standards.
Key Standards
-
Primary: BS 6724, IEC 60502-1
-
Fire Safety:
-
Halogen Gas Emission: IEC 60754-1/2 (≤0.5% HCl)
-
Smoke Density: IEC 61034-1/2 (≥60% light transmission)
-
Flame Propagation: IEC 60332-1
-

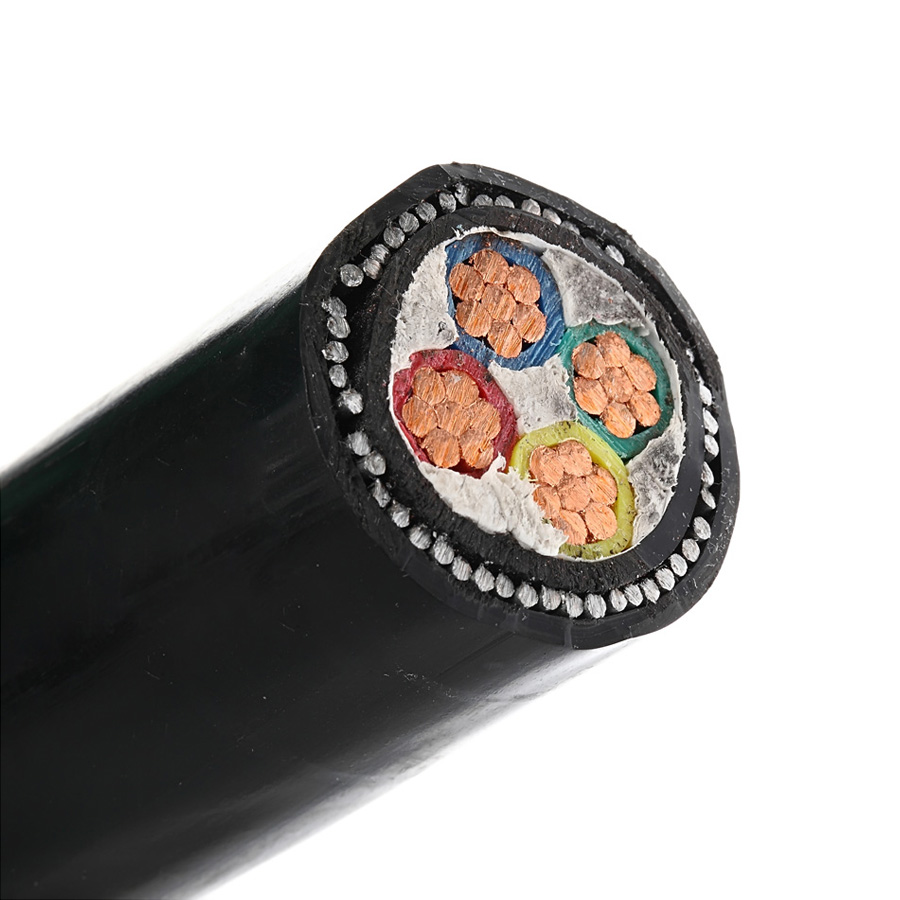

Construction Layers
| Layer | Material & Specification |
|---|---|
| Conductor | Class 2 stranded copper (IEC 60228) |
| Insulation | XLPE (Cross-Linked Polyethylene) |
| Bedding | LSZH Compound |
| Armor | Single-Core: AWA (Aluminum Wire) • Multi-Core: SWA (Steel Wire) |
| Outer Sheath | LSZH Compound • Color: Black |
Technical Parameters
| Parameter | Specification |
|---|---|
| Voltage Rating | 600/1000V (U₀/U) |
| Temp. Range | -20°C to +90°C (Installation: ≥0°C) |
| Min. Bending Radius | ≤16mm²: 6×OD • ≥25mm²: 8×OD |
| Short-Circuit Temp. | +250°C (max 5s) |
| Fire Safety | Halogen-free • Low smoke density • Flame-retardant |
Applications
-
Critical Infrastructure: Tunnels, subways, hospitals, high-rises
-
Industrial Zones: Oil refineries, chemical plants, power stations
-
Installation Methods: Direct burial • Cable ducts • Trays • Indoor/outdoor
-
Key Use Cases:
-
Main power feeds in fire-risk zones
-
Emergency lighting circuits
-
Backup power systems
-
Engineering Selection Data
Single-Core (AWA Armor):
| Cores × mm² | Cond. Ø (mm) | XLPE Insul. (mm) | Armor Ø (mm) | Sheath (mm) | OD (mm) |
|---|---|---|---|---|---|
| 1×4 | 2.3 | 0.7 | 0.8 | 1.8 | 10.9 |
| 1×25 | 5.6 | 0.9 | 0.8 | 1.8 | 14.6 |
| 1×95 | 11.0 | 1.1 | 1.6 | 1.8 | 22.0 |
| 1×240 | 17.5 | 1.7 | 1.6 | 1.9 | 29.9 |
| 1×500 | 25.2 | 2.2 | 2.0 | 2.3 | 40.5 |
Multi-Core (SWA Armor):
| Cores × mm² | Cond. Ø (mm) | XLPE Insul. (mm) | Armor Ø (mm) | Sheath (mm) | OD (mm) |
|---|---|---|---|---|---|
| 2×1.5 | 1.4 | 0.7 | 0.8 | 1.8 | 12.8 |
| 2×16 | 4.5 | 0.7 | 1.25 | 1.8 | 19.9 |
| 2×70 | 9.4 | 1.1 | 2.0 | 2.0 | 33.2 |
| 2×185 | 15.3 | 1.6 | 2.5 | 2.6 | 49.9 |
| 2×400 | 22.6 | 2.0 | 2.5 | 3.1 | 67.7 |
Note: OD = Overall Diameter • Full size tables available in datasheet
Core Identification
-
1-Core: Brown
-
2-Core: Brown + Blue
-
3-Core: Brown + Black + Grey
-
4/5-Core: Color-coded per BS 6724 or numbered white cores
Installation Notes
-
Bending Radius: Strictly follow 6×OD (≤16mm²) / 8×OD (≥25mm²) rules.
-
Pulling Tension: Use rollers – max 50N/mm² conductor stress.
-
Corrosion: For direct burial, ensure soil pH 5.5–9.0.
-
Fire Zones: Mandatory in EN 50575 Euroclass B2ca-s1,d1,a1 installations.
-
Compliance: Install per IEC 60364 & BS 7671 regulations.
⚠️ Critical: Armor must be grounded at both ends per IEC 60364-4-41.
