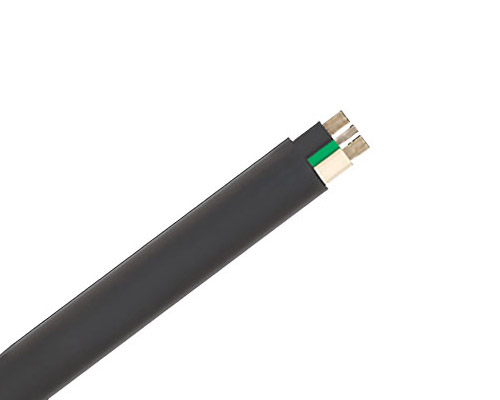

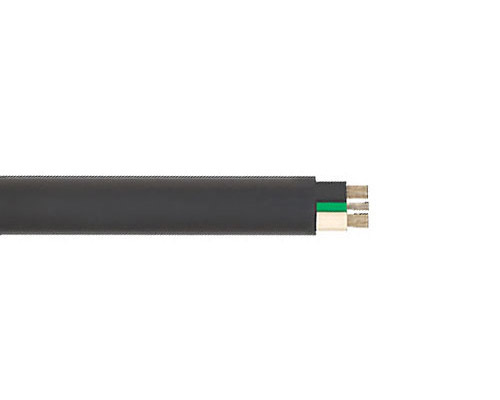

Heavy-Duty EPR/CPE Type G Portable Cable 2000V - Flame Retardant, Flat Parallel Design with Secure Grounding
Product Overview
The Type G Power Cable is a heavy-duty, flat parallel portable cable engineered for DC mining equipment and industrial applications requiring robust grounding and extreme durability. Rated for 2000 volts and 90°C, this cable combines EPR insulation, a CPE jacket, and a secure grounding system to deliver reliable power transmission in harsh, high-stress environments. Compliant with ICEA S-75-381 and MSHA flame-test standards, it ensures safety and performance in underground mines, quarries, and heavy machinery operations.
Key Features
-
Voltage Rating: 2000V for high-power DC applications.
-
Temperature Rating: 90°C continuous operation in dry/wet conditions.
-
Flat Parallel Design: Resists crushing, runover damage, and simplifies installation in tight spaces.
-
Secure Grounding: Green elastomer-covered grounding conductor maintains position in the flat assembly.
-
Flame Retardant: MSHA-certified for fire safety in hazardous environments.
-
Durability: Extra-heavy-duty CPE jacket resists abrasion, oil, chemicals, and mechanical stress.
Construction Details
Conductor
-
Material: Coated annealed copper (4 AWG to 4/0 AWG).
-
Stranding: Rope-lay-stranded per ASTM B172 for superior flexibility and fatigue resistance.
-
Configuration: Two insulated power conductors (black and white EPR) + one grounding conductor.
Insulation
-
Material: Ethylene Propylene Rubber (EPR).
-
Benefits: High thermal stability, moisture resistance, and electrical integrity.
Grounding Conductor
-
Material: Coated copper, rope-lay-stranded per ASTM B172.
-
Covering: Green elastomer sheath ensures secure placement within the flat cable assembly.
Jacket
-
Material: Lead-cured Chlorinated Polyethylene (CPE).
-
Benefits: Extreme resistance to abrasion, oil, chemicals, and environmental degradation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Rating | 2000V |
| Temperature Range | -40°C to 90°C (wet/dry) |
| Conductor Sizes | 4 AWG to 4/0 AWG |
| Standards | ICEA S-75-381, MSHA Flame Test Certified |
| Flame Rating | MSHA-Approved Flame Retardant |
| Resistance | Oil, Chemicals, Abrasion, Crushing, UV |
Applications
-
DC Mining Equipment: Trailing cables for shovels, drills, and haul trucks.
-
Industrial Machinery: Draglines, cranes, and portable power feeds in rugged environments.
-
Hazardous Locations: Mines, quarries, and construction sites with exposure to oils or chemicals.
-
Temporary Installations: High-flexibility use in dynamic or mobile setups.
Compliance & Certifications
-
ICEA S-75-381: Compliant with portable power feeder standards for mining.
-
MSHA: Certified flame-resistant and approved for underground mining applications.
-
Material Safety: RoHS-compliant, UV-stabilized, and chemically inert.
Engineering Selection Guide
-
High Mechanical Stress: Opt for the flat design and CPE jacket to prevent crushing damage.
-
Grounding Reliability: Secure green elastomer-covered grounding conductor ensures continuous safety.
-
Chemical Exposure: CPE’s oil and chemical resistance extends cable lifespan in contaminated areas.
-
Flexibility Needs: Rope-lay stranding allows repeated bending without conductor fatigue.
