UL MSHA Certified 2000V Trailing Cable – Type G/G-GC| 4 Conductor + Ground Check | Oil & UV Resistant | for Continuous Miners/Shuttle Cars/Drills

UL MSHA Certified 2000V Trailing Cable – Type G/G-GC| 4 Conductor + Ground Check | Oil & UV Resistant | for Continuous Miners/Shuttle Cars/Drills

UL MSHA Certified 2000 Volt Trailing Cable | 4 Conductor + Ground Check | EPR/CPE Oil & UV Resistant | Mining Equipment Power

Product Overview

This UL and MSHA-certified 2000V mining cable delivers robust power transmission for heavy-duty industrial and mining operations. Engineered with ethylene-propylene rubber (EPR) insulation and a CPE thermosetting jacket, it combines flexibility, oil/UV resistance, and ground-check safety for AC off-track equipment. Ideal for continuous miners, shuttle cars, drills, and conveyors in open-pit, strip, and deep mining environments.


Core Applications

  • Powering mobile mining equipment: miners, shuttle cars, cutting machines, drills, conveyors, and pumps.

  • Surface/open-pit and underground mining power distribution.

  • Industrial applications requiring ground-check monitoring for enhanced safety.

  • UV-exposed environments and oil-prone operational sites.

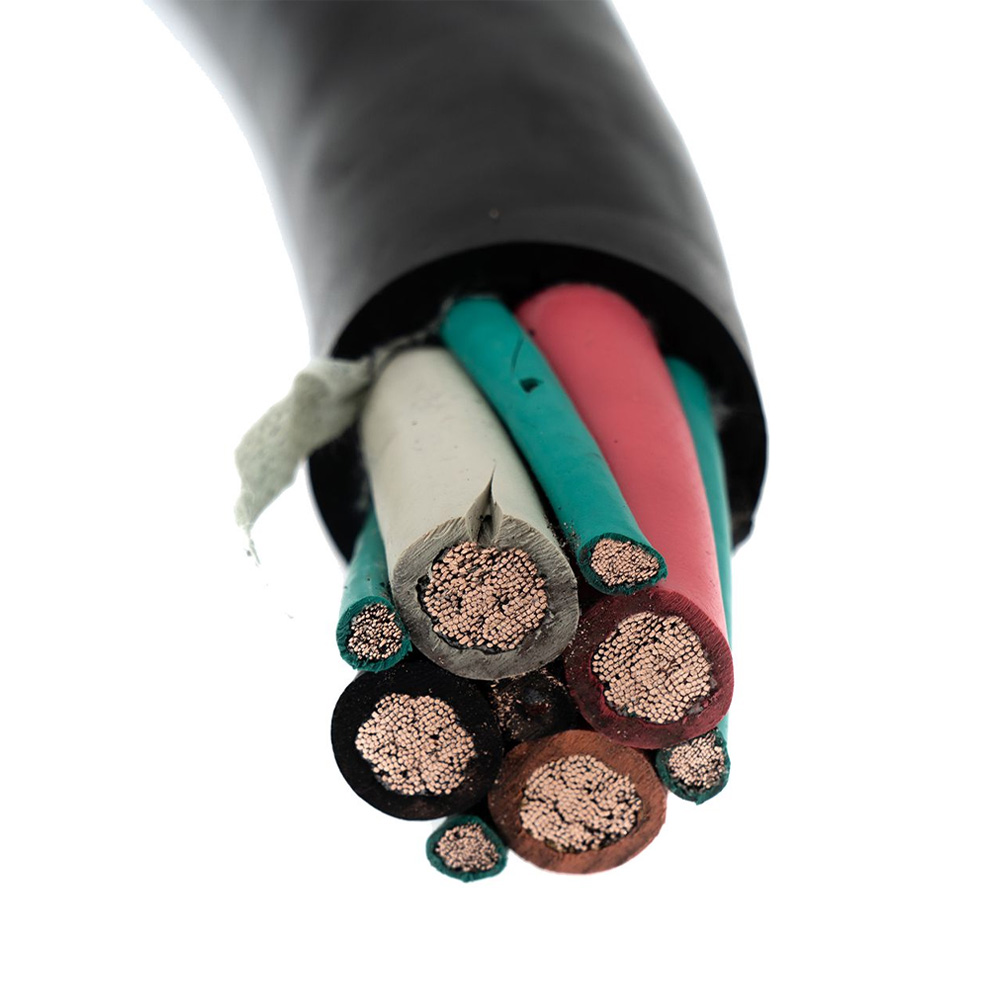

Engineered Construction

  1. Conductors: 4 annealed flexible stranded tin-plated copper cores (color-coded: black/white/red/orange).

  2. Separator: Tape barrier between conductors and insulation.

  3. Insulation: Ethylene-propylene rubber (EPR) for high thermal stability (90°C rating).

  4. Grounding: 4 green EPR-insulated tinned copper conductors (dedicated ground-check circuit).

  5. Assembly: Power/ground cores cabled into a round configuration.

  6. Filler: Rubber-filled binder tape for structural integrity.

  7. Jacket: Heavy-duty black CPE thermosetting compound (oil/UV/abrasion resistant).


Key Performance Features

  • Voltage: 2000V

  • Certifications: UL Listed (File E482608), MSHA Approved

  • Temperature: 90°C conductor / 30°C ambient (ampacity rated)

  • Resistance: Oil, UV, abrasion, and tear resistant

  • Safety: Integrated ground-check conductors for fault monitoring


Technical Specifications (90°C Conductor / 30°C Ambient)

Phase Size Phase Stranding Ground Size Insul. Thick. (mm) Diam. (mm) Weight (kg/km) Ampacity (A)
4×8 AWG 133 4×12 AWG 1.52 24.9 1010 52
4×6 AWG 259 4×12 AWG 1.52 28.0 1325 70
4×4 AWG 259 4×10 AWG 1.52 30.9 1825 91
4×3 AWG 259 4×10 AWG 1.52 32.8 2115 106
4×2 AWG 259 4×9 AWG 1.52 36.5 2650 122
4×1 AWG 259 4×8 AWG 2.03 40.4 3250 142
4×1/0 AWG 266 4×7 AWG 2.03 43.3 3885 164
4×2/0 AWG 342 4×6 AWG 2.03 47.1 4845 190

Engineering Selection Advantages

  • Safety Compliance: Dual UL/MSHA certification meets mining regulatory requirements.

  • Durability: CPE jacket resists oils, sunlight, and mechanical stress for extended service life.

  • Flexibility: Stranded tinned copper conductors withstand repetitive bending and motion.

  • Clarity: Color-coded phases and green ground wires simplify installation and maintenance.

  • Ampacity Optimization: Balanced current-carrying capacity across 8 size configurations.
