Waterproof Submersible Pump Cable - UL 83 THHN Flat Flexible Copper, PVC/Nylon Jacket for Deep Well & Industrial Pumps
Product Overview

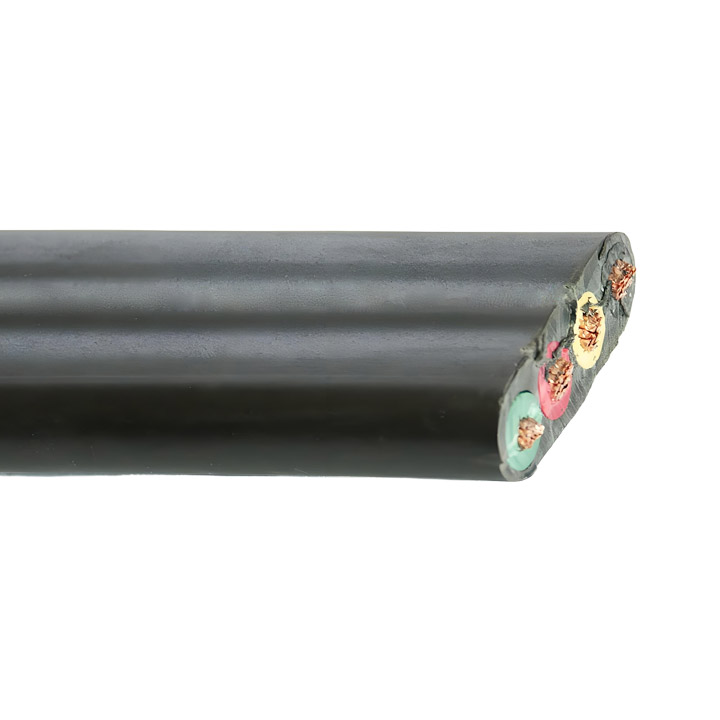

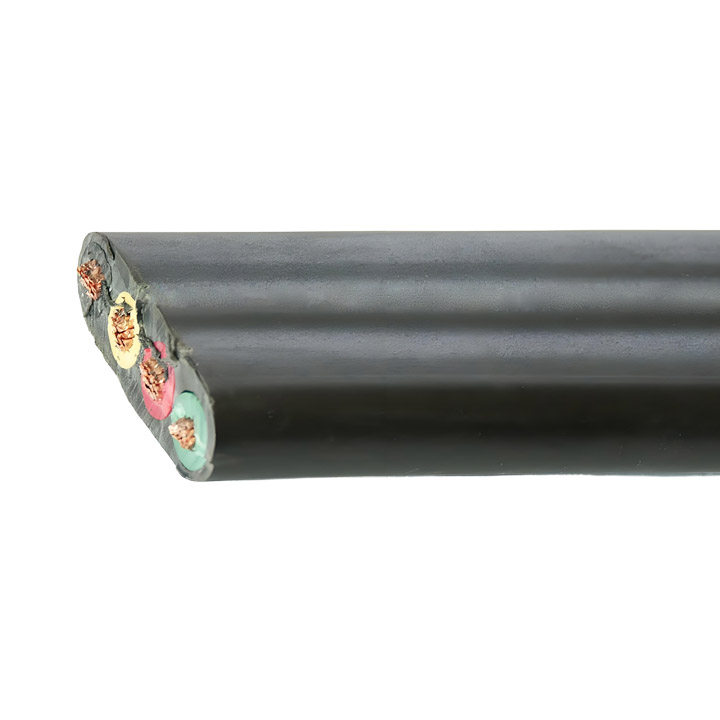

The Submersible Pump Cable is a specialized, high-flexibility cable designed for deep well submersible water pumps and other submerged applications. Engineered to withstand constant immersion, high pressure, and harsh environmental conditions, this cable features UL 83 Type THHN compliance, extra-flexible copper conductors, and a flat parallel design for seamless installation within narrow pump casings. Ideal for permanent underwater use, it ensures reliable power transmission in demanding wet environments.
Key Features
-
Voltage Rating: 600V for robust performance in submersible systems.
-
High Flexibility: Class K stranded copper conductors (413/30 and 168/30) for easy routing in tight spaces.
-
Flat Parallel Design: Space-efficient construction reduces bulk in pump housings.
-
Moisture & Heat Resistance: PVC insulation and nylon jacketing (UL 83 compliant) for durability in wet conditions.
-
Color-Coded Conductors: Black, yellow, red phases with green ground for easy identification.
-
Compliance: Meets UL 83 Type THHN standards for safety and reliability.
Construction Details
Conductor
-
Phase Conductors:
-
Material: Soft-drawn bare copper (ASTM B-3, B-172).
-
Stranding: Class K 413/30 for extreme flexibility.
-
-
Grounding Conductor:
-
Material: Soft-drawn bare copper (ASTM B-3, B-172).
-
Stranding: Class K 168/30 for enhanced durability.
-
-
Color Coding: Black, yellow, red (phases); green (ground).
Insulation & Jacketing
-
Insulation: Heat- and moisture-resistant PVC per UL 83.
-
Inner Jacket: Nylon overlay (UL 83) for abrasion resistance.
-
Outer Jacket: Heavy-duty PVC meeting UL 83 thickness requirements.
-
Cabling: Flat parallel configuration with jacketing molded over and between conductors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Rating | 600V |
| Temperature Range | -40°C to 90°C (dry) / 75°C (wet) |
| Conductor Class | Class K (413/30 phase; 168/30 ground) |
| Standards | UL 83 Type THHN |
| Resistance | Moisture, Abrasion, Oil, Chemicals |
Applications
-
Deep Well Pumps: Permanent wiring within submersible water pump casings.
-
Agricultural Irrigation: Submerged motors and pumping systems.
-
Industrial Water Systems: Sewage pumps, drainage systems, and offshore equipment.
-
Renewable Energy: Geothermal and solar-powered water pumps.
Compliance & Certifications
-
UL 83 Type THHN: Certified for thermal resistance and mechanical durability.
-
Material Safety: RoHS-compliant, free from hazardous substances.
Engineering Selection Guide
-
Submersion Depth: Ensure cable length accommodates well depth and pump movement.
-
Chemical Exposure: PVC/Nylon construction resists oils and mild chemicals.
-
Flexibility Needs: Class K stranding allows tight bends without conductor damage.
-
Safety Compliance: Verify UL 83 and NEC alignment for installation codes.
