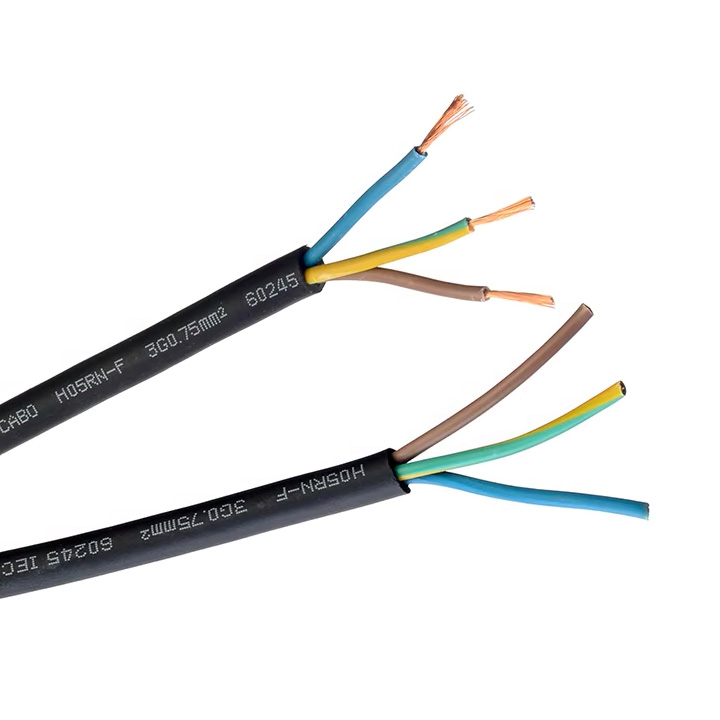

Product Overview
VDE-certified waterproof rubber sheathed cable with triple-layer protection for submerged pump applications. Features ozone-resistant EPDM insulation and CR/PCP rubber sheath compliant with VDE 0282, IEC 60245, and IEC 60811 standards for stator pumps. Operating temperature: -40°C to +90°C.
Technical Specifications
| Parameter | Specification |
|---|---|
| Certification | VDE 0282 Part 4 (H05RN-F) |
| Conductors | 3 Cores (Class 5 fine-stranded copper) |
| Cross-sections | 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
| Voltage Rating | 300/500V AC |
| Temp Range | -40°C to +90°C (Moving Installation) |
| Insulation | EPDM Rubber (IEC 60811-2-1) |
| Sheath | CR/PCP Rubber (IP68) |
| Bending Radius | 4 × Cable Diameter |
| Flame Rating | IEC 60332-1-2 |
| Colors | Brown/Blue/Green-Yellow |
Construction Details
1. Conductor
• Material: Electrolytic copper (Cu ≥99.99%)
• Structure: Class 5 fine-stranding per IEC 60228
• Flexibility: ≥30 bending cycles at 4D radius
2. Insulation
• Material: EPDM (Ethylene Propylene Diene Monomer)
• Thickness: 0.8mm (1.5mm²) per VDE 0282
• Properties: Ozone resistance >168hrs @50pphm
3. Filling
• Tear-resistant textile yarn (axial tension relief)
4. Sheath
• Material: Chloroprene Rubber (CR)
• Thickness: 1.2mm (1.5mm²)
• Protection: IP68 (72hrs @1m depth)
Material Properties
| Component | Key Characteristics | Test Standard |
|---|---|---|
| Copper | Conductivity ≥58 m/Ω·mm² | IEC 60228 |
| EPDM | Tensile strength ≥6.0 MPa | IEC 60811-2-1 |
| CR Sheath | Oil resistance (ΔV ≤+40% after immersion) | IEC 60811-404 |
Application Scenarios
• Stator Pump Wiring
-
Submersible water pumps (domestic/industrial)
-
Borehole pump motor connections
• Fluid Handling Systems
-
Sewage treatment plants
-
Agricultural irrigation systems
• Wet Industrial Environments
-
Food processing machinery
-
Marine equipment cabling
Engineering Selection Guide
| Factor | Calculation Method | Critical Values |
|---|---|---|
| Current Rating | IEC 60512-5-51 Table A.16 | 1.5mm²: 16A @40°C ambient |
| Voltage Drop | ΔU = (1.732 × I × L × cosφ)/(γ × S) | Max 3% @ full load |
| Bending Life | IEC 60811-1-4 | >20,000 cycles @ 4D radius |
| Installation | Min. temp: -5°C |
⚠️ Key Restrictions
• Not for overhead installations
• Avoid sharp edges during routing
• Mandatory IP68 cable glands for terminations
Compliance & Standards
• VDE 0282 Part 4 (H05RN-F)
• IEC 60245-4
• IEC 60811 Series
• RoHS 2/REACH Compliant
Certifications: VDE ▪ CE ▪ UKCA ▪ TÜV
