Flexible Thermoplastic Fixture Wire 600V - UL 66 Flame Retardant PVC for Lighting & Low-Voltage Controls
Product Overview

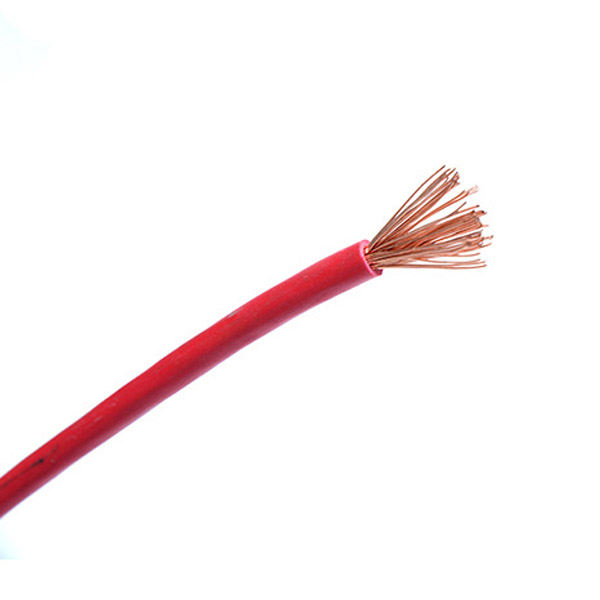

The Thermoplastic Fixture (TF) Wire is a lightweight, flame-retardant cable designed for low-voltage fixture wiring and remote control systems. Rated for 600 volts and operating temperatures up to 60°C, this UL 66-compliant wire combines PVC insulation with flexibility and safety, making it ideal for residential, commercial, and industrial applications where space and reliability are critical.
Key Features
-
Voltage Rating: 600V for low-power electrical systems.
-
Temperature Rating: Up to 60°C for safe operation in enclosed fixtures.
-
Flame Retardant: Self-extinguishing PVC insulation meets UL safety standards.
-
Flexibility: Easy to route in tight spaces and complex installations.
-
Compliance: Meets ASTM B-3, ASTM B-8, and UL 66 standards.

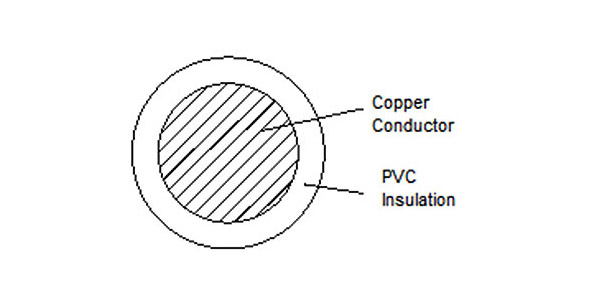

Construction Details
Conductor
-
Material: Soft-drawn copper per ASTM B-3 and ASTM B-8.
-
Stranding: Fine-stranded for enhanced flexibility and ease of installation.
Insulation
-
Material: Flame-retardant PVC (polyvinyl chloride).
-
Benefits: Resists heat, abrasion, and environmental wear while maintaining electrical integrity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Rating | 600V |
| Temperature Range | Up to 60°C (operating) |
| Conductor Material | Soft-drawn copper |
| Standards | UL 66, ASTM B-3, ASTM B-8 |
| Flame Rating | UL-Listed Flame Retardant |
Applications
-
Fixture Wiring: Lighting systems, chandeliers, and ceiling fans.
-
Low-Voltage Controls: Thermostats, security systems, and remote control circuits.
-
Residential & Commercial: Junction boxes, switchboards, and enclosed electrical fixtures.
-
Industrial: Control panels and machinery with low-power signaling requirements.
Compliance & Certifications
-
UL 66: Certified for safety and performance in fixture wiring.
-
ASTM Standards: Compliant with conductor material specifications.
-
Material Safety: RoHS-compliant (upon request).
Engineering Selection Guide
-
Temperature-Sensitive Areas: Use in environments where temperatures do not exceed 60°C.
-
Flame Safety: Prioritize in fire-risk zones requiring self-extinguishing materials.
-
Space Constraints: Ideal for compact installations due to fine-stranded flexibility.
-
Code Compliance: Verify UL 66 and NEC alignment for local regulations.
