S12 RU(c) 250V Offshore Instrument Cable | Collective Screened | NEK 606 | Halogen Free

NEK 606 Offshore Instrumentation and Signal Cable27
Description

Product Overview

The S12 RU(c) 250V Offshore Instrument Cable provides reliable signal transmission for offshore control and instrumentation systems. Featuring collective screening technology and compact design, this NEK 606 compliant cable delivers essential flame retardant and halogen-free performance while ensuring optimal signal integrity in marine environments.

Key Features & Benefits

  • Collective Screening Design: Copper/aluminum backed polyester tape with drain wire provides effective EMI protection

  • Compact & Lightweight: Unarmoured construction reduces weight and installation complexity

  • Enhanced Safety: Flame retardant and halogen-free properties ensure personnel safety

  • Superior Signal Quality: EPR insulation maintains signal integrity in demanding conditions

  • Corrosion Resistant: Tinned copper conductor withstands harsh marine environments

  • Flexible Options: Available in 0.75mm², 1.5mm², and 2.5mm² conductor sizes

Applications

Reliable signal transmission for various offshore systems:

  • Process Control: Sensor networks and measurement devices

  • Safety Systems: Alarm circuits and monitoring devices

  • Automation Control: Valve operation and actuator signals

  • Instrumentation: Data acquisition and signal processing

  • Marine Platforms: Drilling rigs, production facilities, FPSO vessels

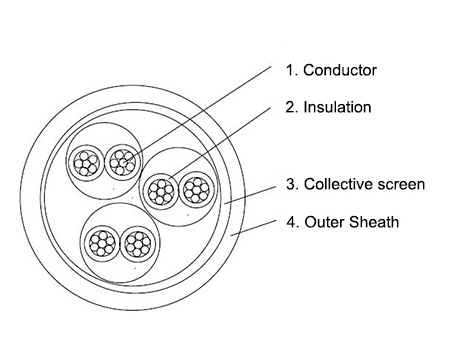

Construction

Efficient construction for reliable performance:

  1. Conductor: Circular tinned stranded copper (0.75/1.5/2.5mm²) per IEC 60228

  2. Insulation: Ethylene Propylene Rubber (EPR)

  3. Collective Screen:

    • Cores twisted as pairs/triples and laid up collectively

    • Screened with copper/aluminum backed polyester tape

    • Tinned copper drain wire for effective grounding

  4. Outer Sheath: Halogen-free thermoset compound, Type SHF2

Specifications

  • Rated Voltage: 250V

  • Conductor Sizes: 0.75mm², 1.5mm², 2.5mm²

  • Screening Type: Collective screening

  • Standards Compliance: NEK 606, IEC 60228

  • Flame Performance: Flame retardant

  • Halogen Content: Halogen-free

  • Sheath Type: SHF2 compound

  • Insulation Material: EPR

  • Installation: Fixed offshore installations
