Product Overview
The S11 RU(i) 250V Offshore Instrument Cable delivers precise signal transmission for critical offshore control and instrumentation systems. Designed with individual pair screening technology and full NEK 606 compliance, this cable ensures superior signal integrity while maintaining essential flame retardant and halogen-free safety standards required for offshore operations.
Key Features & Benefits
-
Individual Pair Screening: Each twisted pair/triple features copper-backed polyester tape screening for optimal EMI protection
-
Enhanced Signal Quality: Advanced screening technology minimizes cross-talk and electromagnetic interference
-
Compact Design: Lightweight construction without additional armour reduces installation complexity
-
Superior Safety Performance: Flame retardant and halogen-free construction ensures personnel protection
-
Corrosion Resistant: Tinned copper conductor provides excellent resistance to marine environments
-
Flexible Configuration: Available in 0.75mm², 1.5mm², and 2.5mm² conductor sizes
Applications
Precision signal transmission for critical offshore systems:
-
Process Control Systems: Sensor connections, measurement devices, and control circuits
-
Safety Instrumentation: Alarm systems, emergency shutdown circuits, and monitoring devices
-
Automation Networks: Valve control, actuator signals, and process automation
-
Communication Systems: Data transmission, signal processing, and control networks
-
Marine Installations: Drilling platforms, production facilities, FPSO vessels

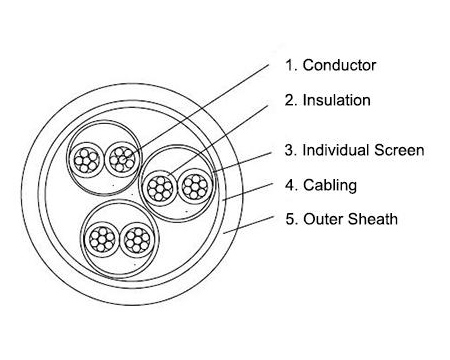

Construction
Optimized construction for reliable signal transmission:
-
Conductor: Circular tinned stranded copper (0.75/1.5/2.5mm²) per IEC 60228
-
Insulation: High-quality Ethylene Propylene Rubber (EPR)
-
Individual Screening:
-
Color-coded cores twisted as pairs/triples
-
Individual screening with copper-backed polyester tape and copper drain wire
-
Each pair/triple wrapped with polyester tape over screen
-
-
Cabling: Screened pairs laid up together and wrapped with polyester tape
-
Outer Sheath: Halogen-free thermoset compound, Type SHF2
Specifications
-
Rated Voltage: 250V
-
Conductor Sizes: 0.75mm², 1.5mm², 2.5mm²
-
Screening Type: Individual pair screening
-
Standards Compliance: NEK 606, IEC 60228
-
Flame Performance: Flame retardant
-
Halogen Content: Halogen-free
-
Sheath Type: SHF2 compound
-
Insulation Material: EPR
-
Temperature Rating: Suitable for offshore temperature ranges
-
Installation: Fixed offshore installations and marine applications
