BS 5308 Part 1 Type 2 PE / CAM / PE / SWA / PVC Instrumentation Cable
Product Overview
The BS 5308 Part 1 Type 2 PE/CAM/PE/SWA/PVC instrumentation cable is designed to carry communication and control signals in a variety of installation types, including those found in the petrochemical industry. The signals can be of analogue, data, or voice type and from a variety of transducers such as pressure, proximity, or microphone.

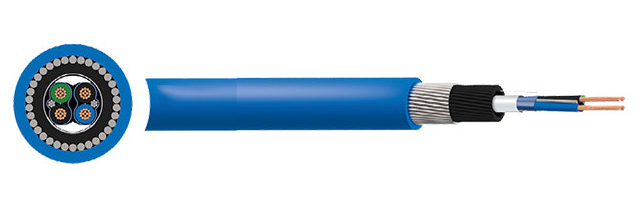

Part 1 Type 2 cables are designed where a greater degree of mechanical protection is required, namely outdoor/exposed or direct burial at suitable depth. The cable features PE insulation, an Al/PET screen with tinned copper drain wire, PE bedding, galvanised steel wire armour (SWA), and a PVC outer sheath.
Features & Benefits
-
Signal Transmission: Designed for communication and control signals, including analogue, data, and voice.
-
Enhanced Mechanical Protection: SWA (Galvanised Steel Wire Armour) provides superior protection for outdoor, exposed, or direct burial installations.
-
PE Insulation: Polyethylene insulation for reliable electrical performance.
-
Al/PET Screen: Aluminium/Polyester tape screen with tinned copper drain wire for effective shielding against interference.
-
PE Bedding: Polyethylene bedding layer under the armour for added protection.
-
PVC Sheath: Polyvinyl Chloride outer sheath for durable environmental protection.
-
Flexible Conductor Options: 0.5mm²–0.75mm²: Class 5 flexible copper conductor; 1mm² and above: Class 2 stranded copper conductor.
-
Voltage Rating: 300/500V.
-
Temperature Range: Fixed: -40°C to +80°C; Flexed: 0°C to +50°C.
-
Minimum Bending Radius: Fixed: 12 x overall diameter.
-
Sheath Colour: Blue, Black.
Typical Applications
-
Petrochemical industry communication and control signals
-
Analogue, data, and voice signal transmission
-
Transducer connections (pressure, proximity, microphone)
-
Outdoor and exposed installations
-
Direct burial at suitable depth
-
Environments requiring a greater degree of mechanical protection
Construction
-
Conductor:
-
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
-
1mm² and above: Class 2 stranded copper conductor
-
-
Insulation: PE (Polyethylene)
-
Screen: Al/PET (Aluminium/Polyester Tape)
-
Drain Wire: Tinned copper
-
Bedding: PE (Polyethylene)
-
Armour: SWA (Galvanised Steel Wire Armour)
-
Sheath: PVC (Polyvinyl Chloride)
-
Sheath Colour: Blue, Black
Technical Specifications
Electrical & Thermal Characteristics
| Parameter | Value |
|---|---|
| Voltage Rating Uo/U | 300/500V |
| Temperature Rating – Fixed | -40°C to +80°C |
| Temperature Rating – Flexed | 0°C to +50°C |
| Minimum Bending Radius – Fixed | 12 x overall diameter |
Conductor Electrical Characteristics
| Nominal Cross Sectional Area (mm²) | Conductor Class | Maximum DC Resistance of Conductor at 20°C (ohms/km) |
|---|---|---|
| 0.5 | 5 | 39 |
| 0.75 | 5 | 26 |
| 1 | 1 | 18.1 |
| 1.5 | 2 | 12.1 |
| 2.5 | 2 | 7.41 |
Electrical Characteristics – Mutual Capacitance, Insulation Resistance & L/R Ratio
| Nominal Cross Sectional Area (mm²) | Maximum Mutual Capacitance (pF/m) | Minimum Insulation Resistance at 20°C – Collective Screen Only (Gohms/km) | Minimum Insulation Resistance at 20°C – 1 Pair, 2 Pairs, 1 Triple Collectively Screened (Gohms/km) | Minimum Insulation Resistance at 20°C – Individually Screened Pairs (Gohms/km) | Maximum L/R Ratio (μH/ohms) |
|---|---|---|---|---|---|
| 0.5 | 75 | 115 | 115 | >5 | 25 |
| 0.75 | 75 | 115 | 115 | >5 | 25 |
| 1 | 75 | 115 | 115 | >5 | 25 |
| 1.5 | 85 | 120 | 120 | >5 | 40 |
| 2.5 | 85 | 120 | 120 | >5 | 65 |
Parameter Table – BS 5308 Part 1 Type 2
| No. of Pairs/Triple | Nominal Cross Sectional Area (mm²) | Nominal Overall Diameter (mm) |
|---|---|---|
| 1P | 0.5 | 11.4 |
| 1P | 0.75 | 11.8 |
| 1P | 1 | 11.8 |
| 1P | 1.5 | 12.9 |
| 1P | 2.5 | 13.7 |
| 1T | 0.5 | 11.7 |
| 1T | 0.75 | 12.1 |
| 1T | 1 | 12.3 |
| 1T | 1.5 | 13.5 |
| 1T | 2.5 | 17.3 |
| 2P (Q) | 0.5 | 12.3 |
| 2P (Q) | 0.75 | 13 |
| 2P (Q) | 1 | 13 |
| 2P (Q) | 1.5 | 14.3 |
| 2P (Q) | 2.5 | 15.3 |
| 5P | 0.5 | 17.9 |
| 5P | 0.75 | 19.3 |
| 5P | 1 | 19.7 |
| 5P | 1.5 | 22.1 |
| 5P | 2.5 | 24.1 |
| 10P | 0.5 | 22.9 |
| 10P | 0.75 | 25.5 |
| 10P | 1 | 24.3 |
| 10P | 1.5 | 28.4 |
| 10P | 2.5 | 32.1 |
| 15P | 0.5 | 26.4 |
| 15P | 0.75 | 28.7 |
| 15P | 1 | 28.1 |
| 15P | 1.5 | 32.2 |
| 15P | 2.5 | 36.4 |
| 20P | 0.5 | 29.1 |
| 20P | 0.75 | 31.6 |
| 20P | 1 | 31.2 |
| 20P | 1.5 | 35.7 |
| 20P | 2.5 | 41 |
P = Pairs, Q = Quad, T = Triple
Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.
Standards & Compliance
The BS 5308 Part 1 Type 2 PE/CAM/PE/SWA/PVC cable is designed and tested in accordance with:
-
BS/PAS 5308
-
BS EN 60228
-
Conductor Class: Class 5 (0.5–0.75mm²); Class 1 (1mm²); Class 2 (1.5–2.5mm²)
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: BS 5308 Part 1 Type 2 PE/CAM/PE/SWA/PVC Instrumentation Cable
-
Voltage Rating: 300/500V
-
Number of Pairs/Triple and Cross-Section: e.g., 1P x 0.5 mm², 5P x 1.5 mm², 10P x 2.5 mm²
-
Conductor: Class 5 flexible copper (0.5–0.75mm²); Class 1 (1mm²); Class 2 stranded copper (1.5–2.5mm²)
-
Insulation: PE
-
Screen: Al/PET
-
Drain Wire: Tinned copper
-
Bedding: PE
-
Armour: SWA (Galvanised Steel Wire Armour)
-
Sheath: PVC, Blue or Black
-
Quantity: Total length in meters
