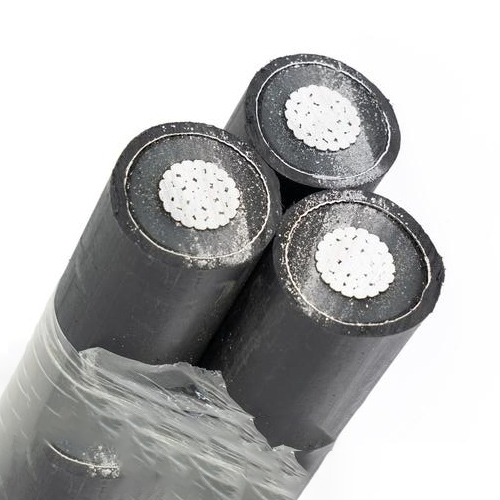

Product Overview
Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. Installed as an uninsulated conductor; however, covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity.
The resulting close‑proximity configuration minimizes the amount of tree wire space and hardware required for line installation; particularly useful in congested areas such as alleyways or tight corridors.
Standards:
15kV – 35kV covered multi‑layer tree wire meets or exceeds all applicable ICEA specifications and the following ASTM specifications:
-
ASTM B230
-
ASTM B231
-
ASTM B232
-
ASTM B398
-
ASTM B399
-
ASTM B400
Specifications
| Property | Details |
|---|---|
| Voltage Level | Medium Voltage (15kV, 25kV, 35kV) |
| Conductors | AAC (1350‑H19), AAAC, or ACSR, concentrically stranded (compressed or full compact) |
| Covering Materials | High‑density track‑resistant polyethylene (HDPE) or Track‑Resistant Crosslinked Polyethylene (XLPE) |
| Optional | Strand shield available |
Construction
Conductors are concentrically stranded, AAC (1350‑H19) (compressed or full compact depending on conductor size), AAAC or ACSR. Available with high‑density track‑resistant polyethylene (HDPE) or Track‑Resistant Crosslinked Polyethylene (XLPE) covering. Strand shield option available.
Technical Parameters – 2‑Layer / 3‑Layer / 4‑Layer Tree Wire Configurations
1. 2‑Layer 15kV ACSR Tree Wire
| Size (AWG or kcmil) | Stranding | Conductor Diameter (mils) | Covering Thickness (mils) | Cable O.D. (mils) | |
|---|---|---|---|---|---|
| Inner Layer | Outer Layer | ||||
| 4 | 6/1 | 250 | 75 | 75 | 550 |
| 2 | 6/1 | 316 | 75 | 75 | 616 |
| 1/0 | 6/1 | 398 | 75 | 75 | 698 |
| 2/0 | 6/1 | 447 | 75 | 75 | 747 |
| 3/0 | 6/1 | 502 | 75 | 75 | 802 |
| 4/0 | 6/1 | 563 | 75 | 75 | 863 |
| 266.8 | 18/1 | 609 | 75 | 75 | 909 |
| 266.8 | 26/7 | 642 | 75 | 75 | 942 |
| 336.4 | 18/1 | 684 | 75 | 75 | 984 |
| 336.4 | 26/7 | 720 | 75 | 75 | 1020 |
| 336.4 | 30/7 | 741 | 75 | 75 | 1041 |
| 397.5 | 18/1 | 743 | 75 | 75 | 1043 |
| 397.5 | 24/7 | 772 | 75 | 75 | 1072 |
| 397.5 | 26/7 | 783 | 75 | 75 | 1083 |
| 477 | 24/7 | 846 | 75 | 75 | 1146 |
| 477 | 26/7 | 858 | 75 | 75 | 1158 |
| 477 | 30/7 | 883 | 75 | 75 | 1183 |
| 556.5 | 18/1 | 879 | 75 | 75 | 1179 |
| 556.5 | 24/7 | 914 | 75 | 75 | 1214 |
| 556.5 | 26/7 | 927 | 75 | 75 | 1227 |
| 636 | 18/1 | 940 | 75 | 75 | 1240 |
| 636 | 24/7 | 977 | 75 | 75 | 1277 |
| 636 | 26/7 | 990 | 75 | 75 | 1290 |
| 795 | 26/7 | 1108 | 80 | 75 | 1428 |
| 795 | 45/7 | 1063 | 80 | 80 | 1383 |
2. 2‑Layer 15kV AAC Tree Wire
| Size (kcmil) | Equivalent AAC (AWG or kcmil) | Stranding | Conductor Diameter (mils) | Covering Thickness (mils) | Cable O.D. (mils) | |
|---|---|---|---|---|---|---|
| Inner | Outer | |||||
| 48.69 | 4 | 7 | 250 | 75 | 75 | 550 |
| 77.47 | 2 | 7 | 316 | 75 | 75 | 616 |
| 123.3 | 1/0 | 7 | 398 | 75 | 75 | 698 |
| 155.4 | 2/0 | 7 | 447 | 75 | 75 | 747 |
| 195.7 | 3/0 | 7 | 502 | 75 | 75 | 802 |
| 246.9 | 4/0 | 7 | 563 | 75 | 75 | 863 |
| 312.8 | 266.8 | 19 | 642 | 75 | 75 | 942 |
| 394.5 | 336.4 | 19 | 720 | 75 | 75 | 1020 |
| 465.4 | 397.5 | 19 | 782 | 75 | 75 | 1082 |
| 559.5 | 477 | 19 | 858 | 75 | 75 | 1158 |
| 652.4 | 556.5 | 19 | 927 | 75 | 75 | 1227 |
| 740.8 | 636 | 37 | 990 | 80 | 80 | 1310 |
3. 2‑Layer 15kV AAAC Tree Wire
| Size (AWG or kcmil) | Stranding | Conductor Diameter (mils) | Covering Thickness (mils) | Cable O.D. (mils) | |
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 1/0 | 7 | 336 | 75 | 75 | 636 |
| 2/0 | 7 | 376 | 75 | 75 | 676 |
| 3/0 | 7 | 423 | 75 | 75 | 723 |
| 4/0 | 7 | 475 | 75 | 75 | 775 |
| 266.8 | 19 | 537 | 75 | 75 | 837 |
| 336.4 | 19 | 603 | 75 | 75 | 903 |
| 397.5 | 19 | 659 | 75 | 75 | 959 |
| 477 | 19 | 722 | 75 | 75 | 1022 |
| 556.5 | 37 | 780 | 75 | 75 | 1080 |
| 636 | 37 | 835 | 75 | 75 | 1135 |
4. 3‑Layer 15kV ACSR Tree Wire (with Conductor Shield)
| Size (AWG or kcmil) | Stranding | Conductor Diameter (mils) | Covering Thickness (mils) | Cable O.D. (mils) | ||
|---|---|---|---|---|---|---|
| Conductor Shield | Inner Layer | Outer Layer | ||||
| 4 | 6/1 | 250 | 15 | 75 | 75 | 580 |
| 2 | 6/1 | 316 | 15 | 75 | 75 | 646 |
| 1/0 | 6/1 | 398 | 15 | 75 | 75 | 728 |
| 2/0 | 6/1 | 447 | 15 | 75 | 75 | 777 |
| 3/0 | 6/1 | 502 | 15 | 75 | 75 | 832 |
| 4/0 | 6/1 | 563 | 15 | 75 | 75 | 893 |
| 266.8 | 18/1 | 609 | 15 | 75 | 75 | 939 |
| 266.8 | 26/7 | 642 | 15 | 75 | 75 | 972 |
| 336.4 | 18/1 | 684 | 15 | 75 | 75 | 1014 |
| 336.4 | 26/7 | 720 | 15 | 75 | 75 | 1050 |
| 336.4 | 30/7 | 741 | 15 | 75 | 75 | 1071 |
| 397.5 | 18/1 | 743 | 15 | 75 | 75 | 1073 |
| 397.5 | 24/7 | 772 | 15 | 75 | 75 | 1102 |
| 397.5 | 26/7 | 783 | 15 | 75 | 75 | 1113 |
| 477 | 24/7 | 846 | 15 | 75 | 75 | 1176 |
| 477 | 26/7 | 858 | 15 | 75 | 75 | 1188 |
| 477 | 30/7 | 883 | 15 | 75 | 75 | 1213 |
| 556.5 | 18/1 | 879 | 20 | 75 | 75 | 1219 |
| 556.5 | 24/7 | 914 | 20 | 75 | 75 | 1254 |
| 556.5 | 26/7 | 927 | 20 | 75 | 75 | 1267 |
| 636 | 18/1 | 940 | 20 | 75 | 75 | 1280 |
| 636 | 26/7 | 990 | 20 | 75 | 75 | 1330 |
5. 3‑Layer 15kV AAC Tree Wire (with Conductor Shield)
| Size (kcmil) | Equivalent AAC (AWG or kcmil) | Stranding | Conductor Diameter (mils) | Covering Thickness (mils) | Cable O.D. (mils) | ||
|---|---|---|---|---|---|---|---|
| Conductor Shield | Inner Layer | Outer Layer | |||||
| 48.69 | 4 | 7 | 250 | 15 | 75 | 75 | 580 |
| 77.47 | 2 | 7 | 316 | 15 | 75 | 75 | 646 |
| 123.3 | 1/0 | 7 | 398 | 15 | 75 | 75 | 728 |
| 155.4 | 2/0 | 7 | 447 | 15 | 75 | 75 | 777 |
| 195.7 | 3/0 | 7 | 502 | 15 | 75 | 75 | 832 |
| 246.9 | 4/0 | 7 | 563 | 15 | 75 | 75 | 893 |
| 312.8 | 266.8 | 19 | 642 | 15 | 75 | 75 | 972 |
| 394.5 | 336.4 | 19 | 720 | 15 | 75 | 75 | 1050 |
| 465.4 | 397.5 | 19 | 783 | 15 | 75 | 75 | 1113 |
| 559.5 | 477 | 19 | 858 | 15 | 75 | 75 | 1188 |
| 652.4 | 556.5 | 19 | 927 | 20 | 75 | 75 | 1267 |
| 740.8 | 636 | 37 | 990 | 20 | 75 | 75 | 1330 |
6. 3‑Layer 15kV AAAC Tree Wire (with Conductor Shield)
| Size (AWG or kcmil) | Stranding | Conductor Diameter (mils) | Covering Thickness (mils) | Cable O.D. (mils) | ||
|---|---|---|---|---|---|---|
| Conductor Shield | Inner Layer | Outer Layer | ||||
| 1/0 | 7 | 336 | 15 | 75 | 75 | 666 |
| 2/0 | 7 | 376 | 15 | 75 | 75 | 706 |
| 3/0 | 7 | 423 | 15 | 75 | 75 | 753 |
| 4/0 | 7 | 475 | 15 | 75 | 75 | 805 |
| 266.8 | 19 | 537 | 15 | 75 | 75 | 867 |
| 336.4 | 19 | 603 | 15 | 75 | 75 | 933 |
| 397.5 | 19 | 659 | 15 | 75 | 75 | 989 |
| 477 | 19 | 722 | 15 | 75 | 75 | 1052 |
| 556.5 | 37 | 780 | 20 | 75 | 75 | 1120 |
| 636 | 37 | 835 | 20 | 80 | 80 | 1195 |
| 795 | 37 | 932 | 20 | 80 | 80 | 1292 |
7. 3‑Layer 25kV ACSR Tree Wire
| Size (AWG or kcmil) | Stranding | Conductor Diameter (mils) | Covering Thickness (mils) | Cable O.D. (mils) | ||
|---|---|---|---|---|---|---|
| Conductor Shield | Inner Layer | Outer Layer | ||||
| 1/0 | 6/1 | 398 | 15 | 125 | 125 | 928 |
| 2/0 | 6/1 | 447 | 15 | 125 | 125 | 977 |
| 3/0 | 6/1 | 502 | 15 | 125 | 125 | 1032 |
| 4/0 | 6/1 | 563 | 15 | 125 | 125 | 1093 |
| 266.8 | 18/1 | 609 | 15 | 125 | 125 | 1139 |
| 266.8 | 26/7 | 642 | 15 | 125 | 125 | 1172 |
| 336.4 | 18/1 | 684 | 15 | 125 | 125 | 1214 |
| 336.4 | 26/7 | 720 | 15 | 125 | 125 | 1250 |
| 336.4 | 30/7 | 741 | 15 | 125 | 125 | 1271 |
| 397.5 | 18/1 | 743 | 15 | 125 | 125 | 1273 |
| 397.5 | 24/7 | 772 | 15 | 125 | 125 | 1302 |
| 397.5 | 26/7 | 783 | 15 | 125 | 125 | 1313 |
| 477 | 24/7 | 846 | 20 | 125 | 125 | 1386 |
| 477 | 26/7 | 858 | 20 | 125 | 125 | 1398 |
| 477 | 30/7 | 883 | 20 | 125 | 125 | 1423 |
| 556.5 | 18/1 | 879 | 20 | 125 | 125 | 1419 |
| 556.5 | 24/7 | 914 | 20 | 125 | 125 | 1454 |
| 556.5 | 26/7 | 927 | 20 | 125 | 125 | 1467 |
8. 4‑Layer 25kV AAAC Tree Wire (with Conductor Shield)
| Size (kcmil) | Equivalent AAC (AWG or kcmil) | Stranding | Conductor Diameter (mils) | Covering Thickness (mils) | Cable O.D. (mils) | ||
|---|---|---|---|---|---|---|---|
| Conductor Shield | Inner Layer | Outer Layer | |||||
| 48.69 | 4 | 7 | 250 | 15 | 125 | 125 | 780 |
| 77.47 | 2 | 7 | 316 | 15 | 125 | 125 | 846 |
| 123.3 | 1/0 | 7 | 398 | 15 | 125 | 125 | 928 |
| 155.4 | 2/0 | 7 | 447 | 15 | 125 | 125 | 977 |
| 195.7 | 3/0 | 7 | 502 | 15 | 125 | 125 | 1032 |
| 246.9 | 4/0 | 7 | 563 | 15 | 125 | 125 | 1093 |
| 312.8 | 266.8 | 19 | 642 | 15 | 125 | 125 | 1172 |
| 394.5 | 336.4 | 19 | 720 | 15 | 125 | 125 | 1251 |
| 465.4 | 397.5 | 19 | 783 | 15 | 125 | 125 | 1313 |
| 559.5 | 477 | 19 | 858 | 20 | 125 | 125 | 1398 |
| 652.4 | 556.5 | 19 | 927 | 20 | 125 | 125 | 1467 |
| 740.8 | 636 | 37 | 990 | 20 | 125 | 125 | 1530 |
| 927.2 | 795 | 37 | 1108 | 20 | 125 | 125 | 1648 |
