Aluminum Conductor Steel Reinforced (ACSR) Cable – Overhead Power Transmission – BS, IEC, ASTM, DIN, JIS

Overhead Line
Description
Specifications

Product Overview

ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

Standards: Basic design to BS 215‑2 / BS EN 50182 / IEC 61089 / ASTM B 232 / B 232M / DIN 48204 / JIS C 3110 / AS 3607 standards.

Electrical Properties (at 20°C)

Material Density (kg/dm³) Temperature Coefficient (°C⁻¹) Resistivity (Ω·mm²/m) Linear Expansivity (°C⁻¹)
Aluminium 2.703 0.00403 ≤ 0.028264 23 × 10⁻⁶
Galvanised Steel 7.80 – – 11.5 × 10⁻⁶

Service Conditions

Parameter Range
Ambient Temperature -5°C to 50°C
Wind Pressure 80 – 130 kg/m²
Seismic Acceleration 0.12 – 0.05 g
Isokeraunic Level 10 – 18
Relative Humidity 5 – 100%

Specifications

Property Details
ROHS Compliant ✓
Conductor Type Aluminum Conductor Steel Reinforced (ACSR)
Construction Concentric layers of aluminium wires over galvanized steel core
Applications Long span overhead transmission, distribution, messenger wire

Construction

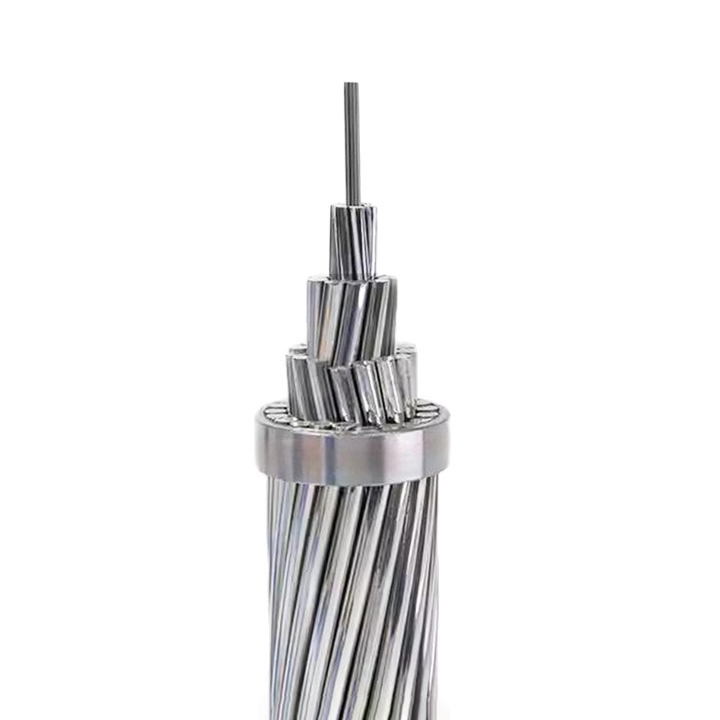

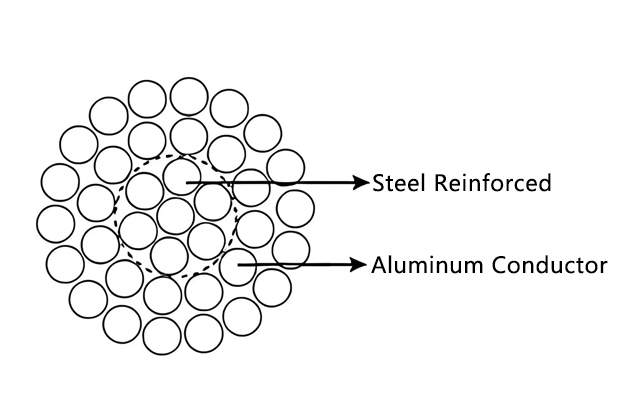

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core are made of galvanized steel and the external layer or layers are of aluminium. Galvanized steel core consists normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.

By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U.T.S. can be obtained by increasing steel content, and a higher current carrying capacity by increasing aluminium content.

ACSR has long been widely used as overhead high tension transmission lines and has an established reputation for economy and dependability.

Technical Parameters

Table 1 – BS 215‑2 (ACSR)

Code Nominal Area (mm²) Stranding Overall Diameter (mm) Weight (kg/km) Rated Strength (kN) Electrical Resistance @20°C (Ω/km)
AL Steel Total AL (No.×mm) Steel (No.×mm) Core Total AL Steel Total
Mole 10 1.77 12.39 6/1.50 1/1.50 1.50 4.5 29 14 43 4.14 2.706
Squirrel 20 3.49 24.43 6/2.11 1/2.11 2.11 6.33 57 28 85 7.88 1.368
Gopher 25 4.38 30.62 6/2.36 1/2.36 2.36 7.08 71 35 106 9.61 1.093
Weasel 30 5.27 36.88 6/2.59 1/2.59 2.59 7.77 87 41 128 11.45 0.9077
Fox 35 6.11 42.77 6/2.79 1/2.79 2.79 8.37 101 48 149 13.2 0.7822
Ferret 40 7.07 49.48 6/3.00 1/3.00 3.0 9.0 117 55 172 15.2 0.6766
Rabbit 50 8.82 61.7 6/3.35 1/3.35 3.35 10.05 145 69 214 18.35 0.5426
Mink 60 10.53 73.71 6/3.66 1/3.66 3.66 10.98 171 84 255 2.18 0.4545
Shunk 60 37.03 100.3 12/2.59 7/2.59 7.77 12.95 178 287 465 5.3 0.4567
Beaver 70 12.47 87.29 6/3.99 1/3.99 3.99 11.97 203 99 302 2.57 0.3825
Horse 70 42.63 116.2 12/2.79 7/2.79 8.37 13.95 203 335 538 61.2 0.3936
Racoon 75 13.2 92.4 6/4.1 1/4.1 4.1 12.3 216 104 320 27.2 0.3622
Otter 80 13.98 97.86 6/4.22 1/4.22 4.22 13.98 226 113 339 28.8 0.3419
Cat 90 15.86 111.3 6/4.5 1/4.5 4.5 15.9 258 128 386 32.7 0.3007
Hare 100 17.5 122.5 6/4.72 1/4.72 4.72 17.5 284 141 425 36.0 0.2733
Dog 100 13.5 118.5 6/4.72 7/1.57 4.71 14.15 288 106 394 32.7 0.2733
Hyena 100 20.4 126.2 7/4.39 7/1.93 5.79 14.57 250 200 450 40.9 0.2712
Leoperd 125 16.8 148.1 8/5.28 7/1.75 5.25 15.81 310 182 492 40.7 0.2184
Coyotte 125 20.1 152.2 26/2.54 7/1.91 5.73 15.89 410 112 522 46.4 0.2187
Congar 125 7.2 137.5 18/3.05 1/3.05 3.05 15.25 361 58 419 29.8 0.2189
Tiger 125 30.6 161.7 30/2.36 7/2.36 7.08 16.52 365 237 602 58 0.2202
Wolf 150 36.8 194.9 30/2.59 7/2.59 7.77 18.13 441 285 726 69.2 0.1828
Dingo 150 8.8 167.5 18/3.35 1/3.35 3.35 16.75 437 69 506 35.7 0.1815
Lynx 175 42.8 226.2 30/2.79 7/2.79 8.37 19.53 507 335 842 79.8 0.1576
Caracal 175 10.2 194.5 18/3.61 1/3.61 3.61 18.05 507 80 587 41.1 0.1563
Panther 200 49.4 261.5 30/3.00 7/3.00 9.0 21.0 586 388 974 92.25 0.1363
Jaguar 200 11.7 222.3 18/3.86 1/3.86 3.86 19.3 580 91 671 46.55 0.1367
Lion 225 55.7 294.2 30/3.18 7/3.18 9.54 22.26 657 438 1095 100.6 0.1212
Bear 250 61.6 325.6 30/3.35 7/3.35 10.05 23.45 728 485 1213 111.1 0.1090
Goat 300 75.7 400 30/3.71 7/3.71 11.13 25.79 894 595 1489 135.7 0.0891
Sheep 350 87.3 461.4 30/3.99 7/3.99 11.97 27.93 1031 687 1718 155.9 0.0770
Antilope 350 48.4 421.5 54/2.97 7/2.97 8.91 26.73 1040 371 1411 118.2 0.0772
Bizon 350 49.5 431.3 54/3.00 7/3.00 9.0 27.0 1064 380 1444 120.9 0.7573
Zebra 400 55.6 484.5 54/3.18 7/3.18 9.54 28.62 1185 436 1621 131.9 0.0674

Table 2 – BS EN 50182 (ACSR)

Code Stranding (AL/Steel) Sectional Area (mm²) Overall Diameter (mm) Weight (kg/km) Breaking Load (kN) Electrical Resistance @20°C (Ω/km) Current Rating* (A)
AL (No.×mm) Steel (No.×mm) AL Steel Total
Mole 6/1.50 1/1.50 10.6 1.77 12.4 4.5 42.8 4.14 2.7027 66
Squirrel 6/2.11 1/2.11 21 3.5 24.5 6.33 84.7 7.87 1.3659 101
Fox 6/2.79 1/2.79 36.7 6.11 42.8 8.37 148.1 13.21 0.7812 142
Mink 6/3.66 1/3.66 63.1 10.5 73.6 10.98 254.9 21.67 0.454 199
Skunk 12/2.59 7/2.59 63.2 36.9 100.1 12.95 463 52.79 0.4568 206
Beaver 6/3.99 1/3.99 75 12.5 87.5 11.97 302.9 25.76 0.382 221
Racoon 6/4.09 1/4.09 78.8 13.1 91.9 12.27 318.3 27.06 0.3635 228
Otter 6/4.22 1/4.22 83.9 14 97.9 12.66 338.8 28.81 0.3415 237
Cat 6/4.50 1/4.50 95.4 15.9 111.3 13.5 385.3 32.76 0.3003 256
Hare 6/4.72 1/4.72 105 17.5 122.5 14.16 423.8 36.04 0.273 271
Coyote 26/2.54 7/1.91 131.7 20.1 151.8 15.89 520.7 45.86 0.2192 311
Cougar 18/3.05 1/3.05 131.5 7.31 138.8 15.25 418.8 29.74 0.2188 308
Tiger 30/2.36 7/2.36 131.2 30.6 161.8 16.52 602.2 57.87 0.2202 313
Lion 30/3.18 7/3.18 238.3 55.6 293.9 22.26 1093.4 100.47 0.1213 450
Bear 30/3.35 7/3.35 264.4 61.7 326.1 23.45 1213.4 111.5 0.1093 480
Goat 30/3.71 7/3.71 324.3 75.7 400 25.97 1488.2 135.13 0.0891 543
Sheep 30/3.99 7/3.99 375.1 87.5 462.6 27.93 1721.3 156.3 0.0771 592
Antelope 54/2.97 7/2.97 374.1 48.5 422.6 26.73 1413.8 118.88 0.0773 586
Bison 54/3.00 7/3.00 381.7 49.5 431.2 27 1442.5 121.3 0.0758 593
Deer 30/4.27 7/4.27 429.6 100.2 529.8 29.89 1971.4 179 0.0673 643
Elk 30/4.50 7/4.50 477.1 111.3 588.4 31.5 2189.5 198.8 0.0606 684
Camel 54/3.35 7/3.35 476 61.7 537.7 30.15 1798.8 146.4 0.0608 677
Moose 54/3.53 7/3.53 528.5 68.5 597 31.77 1997.3 159.92 0.0547 720

Table 3 – IEC 61089 (ACSR)

Nominal Area (mm²) Stranding Overall Diameter (mm) Weight (kg/km) Breaking Load (kN) Electrical Resistance @20°C (Ω/km) Current Rating* (A)
AL Steel AL (No.×mm) Steel (No.×mm)
16 2.67 6/1.84 1/1.84 5.52 64.6 6.08 1.7934 85
25 4.17 6/2.30 1/2.30 6.9 100.9 9.13 1.1478 112
40 6.67 6/2.91 1/2.91 8.73 161.5 14.4 0.7174 150
63 10.5 6/3.66 1/3.66 10.98 254.4 21.63 0.4555 198
100 16.7 6/4.61 1/4.61 13.83 403.8 34.33 0.2869 263
125 6.94 18/2.97 1/2.97 14.85 397.9 29.17 0.2304 299
125 20.4 26/2.47 7/1.92 15.64 503.9 45.69 0.231 302
160 8.89 18/3.36 1/3.36 16.8 509.3 36.18 0.18 347
160 26.1 26/2.80 7/2.18 17.74 644.9 57.69 0.1805 351
200 11.1 18/3.76 1/3.76 18.8 636.7 44.22 0.144 398
200 32.6 26/3.13 7/2.43 19.81 806.2 70.13 0.1444 402
250 24.6 22/3.80 7/2.11 21.53 880.6 68.72 0.1154 458
250 40.7 26/3.50 7/2.72 22.16 1007.7 87.67 0.1155 461
315 21.8 45/2.99 7/1.99 23.91 1039.6 79.03 0.0917 526
315 51.3 26/3.93 7/3.05 24.87 1269.7 106.83 0.0917 530
400 27.7 45/3.36 7/2.24 26.88 1320.1 98.36 0.0722 607
400 51.9 54/3.07 7/3.07 27.63 1510.3 123.04 0.0723 610
450 31.1 45/3.57 7/2.38 28.56 1485.2 107.47 0.0642 651
450 58.3 54/3.26 7/3.26 29.34 1699.1 138.42 0.0643 655
500 34.6 45/3.76 7/2.51 30.09 1650.2 119.41 0.0578 693
500 64.8 54/3.43 7/3.43 30.87 1887.9 153.8 0.0578 697
560 38.7 45/3.98 7/2.65 31.83 1848.2 133.74 0.0516 741
560* 70.9 54/3.63 19/2.18 32.68 2103.4 172.59 0.0516 745
630 43.6 45/4.22 7/2.81 33.75 2079.2 150.45 0.0459 794
630* 79.8 54/3.85 19/2.31 34.65 2366.3 191.77 0.0459 798
710 49.1 45/4.48 7/2.99 35.85 2343.2 169.56 0.0407 851
710* 89.9 54/4.09 19/2.45 36.79 2666.8 216.12 0.0407 856
800* 34.6 72/3.76 7/2.51 37.61 2480.2 167.41 0.0361 910
800* 66.7 84/3.48 7/3.48 38.28 2732.7 205.33 0.0362 912
800* 101 54/4.34 19/2.61 39.09 3004.9 243.52 0.0362 916
900* 38.9 72/3.99 7/2.66 39.9 2790.2 188.33 0.0321 972
900* 75 84/3.69 7/3.69 40.59 3074.2 226.5 0.0322 974
1000* 43.2 72/4.21 7/2.80 42.08 3100.3 209.26 0.0289 1031
1120* 47.3 72/4.45 19/1.78 44.5 3464.9 234.53 0.0258 1096
1120* 91.2 84/4.12 19/2.47 45.31 3811.5 283.17 0.0258 1100
1250* 102 84/4.35 19/2.61 47.85 4253.9 316.04 0.0232 1165
1250* 52.8 72/4.70 19/1.88 47 3867.1 261.75 0.0231 1163

* For long span applications.

Table 4 – ASTM B 232 / B 232M (ACSR – Code Names)

Code Stranding (AL/Steel) Sectional Area (mm²) Overall Diameter (mm) Weight (kg/km) Breaking Load (kN) Electrical Resistance @20°C (Ω/km) Current Rating* (A)
Turkey 6/1.68 1/1.68 13.3+2.22 5.04 15.52 53.6 4.98 2.1499 76
Swan 6/2.12 1/2.12 21.18+3.53 6.36 24.71 85.3 7.83 1.3501 101
Swanate 7/1.96 1/2.61 21.12+5.35 6.53 26.47 99.6 9.79 1.3539 102
Sparrow 6/2.67 1/2.67 33.59+5.6 8.01 39.19 135.7 11.92 0.8512 135
Sparate 7/2.47 1/3.30 33.54+8.55 8.24 42.09 158.7 15.08 0.8525 135
Robin 6/3.00 1/3.00 42.41+7.07 9 49.48 171.1 14.86 0.6742 156
Raven 6/3.37 1/3.37 53.52+8.92 10.11 62.44 216.1 18.33 0.5343 180
Quail 6/3.78 1/3.78 67.33+11.22 11.34 78.55 272 22.46 0.4247 207
Pigeon 6/4.25 1/4.25 85.12+14.19 12.75 99.31 343 28.02 0.3359 239
Penguin 6/4.77 1/4.77 107.22+17.87 14.31 125.09 432.7 35.36 0.2667 275
Waxwing 18/3.09 1/3.09 134.98+7.5 15.45 142.48 430.2 29.8 0.2129 313
Partridge 26/2.57 7/2.00 134.87+21.99 16.28 156.86 545.9 47.15 0.2141 316
Ostrich 26/2.73 7/2.12 152.19+24.71 17.28 176.9 613.4 53.38 0.1897 341
Merlin 18/3.47 1/3.47 170.22+9.46 17.35 179.68 542.8 37.36 0.1688 361
Linnet 26/2.89 7/2.25 170.55+27.83 18.31 198.38 687.5 59.16 0.1693 365
Oriole 30/2.69 7/2.69 170.5+39.78 18.83 210.28 783.3 72.06 0.1698 367
Chickadee 18/3.77 1/3.77 200.93+11.16 18.85 212.09 641.3 43.15 0.143 400
Brant 24/3.27 7/2.18 201.56+26.13 19.62 227.69 761 61.83 0.1433 403
Ibis 26/3.14 7/2.44 201.34+32.73 19.88 234.07 812.4 68.05 0.1434 404
Lark 30/2.92 7/2.92 200.9+46.88 20.44 247.78 925.2 84.07 0.1441 406
Pelican 18/4.14 1/4.14 242.31+13.46 20.7 255.77 769.7 51.15 0.1186 448
Flicker 24/3.58 7/2.39 241.58+31.4 21.49 272.98 913.5 72.06 0.1195 450
Hawk 26/3.44 7/2.67 241.65+39.19 21.77 280.84 975.1 81.84 0.1195 451
Hen 30/3.20 7/3.20 241.27+56.3 22.4 297.57 1110.6 98.3 0.12 453
Osprey 18/4.47 1/4.47 282.47+15.69 22.35 298.16 897.7 59.6 0.1017 492
Parakeet 24/3.87 7/2.58 282.31+36.6 23.22 318.91 1065.6 83.18 0.1023 495
Dove 26/3.72 7/2.89 282.59+45.92 23.55 328.51 1138.6 94.3 0.1022 497
Eagle 30/3.46 7/3.46 282.07+65.82 24.22 347.89 1295.6 114.76 0.1026 499
Peacock 24/4.03 7/2.69 306.13+39.78 24.19 345.91 1158.9 90.74 0.0943 520
Squab 26/3.87 7/3.01 305.83+49.81 24.51 355.64 1237 101.41 0.0944 521
Wood Duck 30/3.61 7/3.61 307.06+71.65 25.27 378.71 1408.4 121.43 0.0943 525
Teal* 30/3.61 19/2.16 307.06+69.62 25.24 376.68 1396.6 124.54 0.0943 525
Kingbird 18/4.78 1/4.78 323.01+17.95 23.9 340.96 1026.6 68.05 0.089 533
Swift 36/3.38 1/3.38 323.02+8.97 23.66 331.99 956.5 60.05 0.089 532
Rook 24/4.14 7/2.76 323.07+41.88 24.84 364.95 1217.5 95.19 0.0894 537
Grosbeak 26/3.97 7/3.09 321.84+52.49 25.15 374.33 1300.8 104.97 0.0897 537
Scoter 30/3.70 7/3.70 322.56+75.26 25.9 397.82 1480.7 127.66 0.0897 541
Egret* 30/3.70 19/2.22 322.56+73.54 25.9 396.1 1469 130.77 0.0897 541
Flamingo 24/4.23 7/2.82 337.27+43.72 25.38 380.99 1276.6 99.64 0.0856 551
Gannet 26/4.07 7/3.16 338.26+54.9 25.76 393.16 1363.3 110.31 0.0854 553
Stilt 24/4.39 7/2.92 363.27+46.88 26.32 410.15 1370.4 107.2 0.0795 576
Starling 26/4.21 7/3.28 361.93+59.15 26.68 421.08 1463.7 118.32 0.0798 577
Redwing* 30/3.92 19/2.35 362.06+82.41 27.43 444.47 1650.6 143.23 0.0799 580
Coot 36/3.77 1/3.77 401.86+11.16 26.39 413.02 1195.8 73.39 0.0715 607
Tern 45/3.38 7/2.25 403.77+27.83 27.03 431.6 1331.8 94.3 0.0715 610
Condor 54/3.08 7/3.08 402.33+52.15 27.72 454.48 1520.7 118.32 0.0718 612
Cuckoo 24/4.62 7/3.08 402.33+52.15 27.72 454.48 1522.2 117.43 0.0718 612
Drake 26/4.44 7/3.45 402.56+65.44 28.11 468 1626.4 131.66 0.0717 615
Mallard* 26/4.44 7/3.45 403.84+91.78 28.96 495.62 1836 159.24 0.0717 619
Ruddy 45/3.59 7/2.40 455.5+31.67 28.74 487.17 1507.3 104.53 0.0634 656
Canary 54/3.28 7/3.28 456.28+59.15 29.52 515.43 1723.1 134.33 0.0633 660
Catbird 36/4.14 1/4.14 484.61+13.46 28.98 498.07 1434.4 86.74 0.0593 679
Rail 45/3.70 7/2.47 483.84+33.54 29.61 517.38 1598.1 110.76 0.0597 680
Cardinal 54/3.38 7/3.38 484.53+62.81 30.42 547.34 1825.9 142.34 0.0596 685
Tanager 36/4.30 1/4.30 522.79+14.52 30.1 537.31 1553.5 93.85 0.055 710
Orotlan 45/3.85 7/2.57 523.87+36.31 30.81 560.18 1730.5 118.32 0.0551 713
Curlew 54/3.51 7/3.51 522.51+67.73 31.59 590.24 1977.6 153.9 0.0553 716
Bluejay 45/4.00 7/2.66 565.49+38.9 31.98 604.39 1866 127.66 0.0511 745
Finch* 54/3.65 19/2.19 565.03+71.57 32.85 636.6 2127.8 164.58 0.0514 748
Bunting 45/4.14 7/2.76 605.76+41.88 33.12 647.64 1996.9 136.55 0.0477 776
Grackle* 54/3.77 19/2.27 602.79+76.89 33.97 679.68 2278.1 176.59 0.0481 777
Skylark 36/4.78 1/4.78 646.02+17.95 33.46 663.97 1913.6 115.65 0.0445 804
Bittern 45/4.27 7/2.85 644.4+44.66 34.17 689.06 2130.8 145.89 0.0448 805
Pheasant* 54/3.90 19/2.34 645.08+81.71 35.1 726.79 2431.4 183.26 0.045 808
Dipper 45/4.40 7/2.93 684.24+47.2 35.19 731.44 2263.2 154.79 0.0422 834
Martin* 54/4.02 19/2.41 685.39+86.67 36.17 772.06 2581.7 194.82 0.0423 838
Bobolink 45/4.53 7/3.02 725.27+50.14 36.24 775.41 2397.2 164.13 0.0398 862
Plover* 54/4.14 19/2.48 726.92+91.78 37.24 818.7 2734.9 206.39 0.0399 866
Nuthatch 45/4.65 7/3.10 764.2+52.83 37.2 817.03 2529.6 171.25 0.0378 888
Parrot* 54/4.25 19/2.55 766.06+97.03 38.25 863.09 2883.7 217.51 0.0379 892
Lapwing 45/4.78 7/3.18 807.53+55.6 38.22 863.13 2663.5 180.14 0.0358 916
Falcon* 54/4.36 19/2.62 806.23+102.43 39.26 908.66 3038.5 229.52 0.036 919
Chukar* 84/3.70 19/2.22 903.18+73.54 40.7 976.72 3083.1 217.51 0.0321 976
Bluebird* 84/4.07 19/2.44 1092.84+88.84 44.76 1181.68 3731.9 256.65 0.0266 1083
Kiwi* 72/4.41 7/2.94 1099.76+47.52 44.1 1147.28 3423.9 215.28 0.0264 1083
Thrasher* 76/4.43 19/2.07 1171.42+63.94 45.79 1235.36 3754.2 243.75 0.0248 1122
Grouse** 8/2.54 1/4.24 40.54+14.12 9.32 54.66 221.4 21.75 0.7089 153
Petrel** 12/2.34 7/2.34 51.61+30.1 11.7 81.71 377.7 42.08 0.5595 181
Minorca** 12/2.44 7/2.44 56.11+32.73 12.2 88.84 411.1 45.81 0.5146 191
Leghorn** 12/2.69 7/2.69 68.2+39.78 13.45 107.98 499.2 55.16 0.4234 215
Guinea** 12/2.92 7/2.92 80.36+46.88 14.6 127.24 589.7 64.94 0.3593 238
Dotterel** 12/3.08 7/3.08 89.41+52.15 15.4 141.56 656.1 70.28 0.323 254
Dorking** 12/3.20 7/3.20 96.51+56.3 16 152.81 707.8 75.62 0.2992 267
Cochin** 12/3.37 7/3.37 107.04+62.44 16.85 169.48 783.9 84.07 0.2698 284
Brahma*&** 12/3.37 7/3.37 102.79+91.78 18.12 194.57 1003.8 114.76 0.2809 283

* Long span; ** High strength.

Table 5 – DIN 48204 (ACSR)

Nominal Sectional Area (mm²) Sectional Area (mm²) Stranding Overall Diameter (mm) Weight (kg/km) Breaking Load (kN) Electrical Resistance @20°C (Ω/km) Current Rating* (A)
AL Steel AL Steel Total AL (No.×mm) Steel (No.×mm)
16 2.5 15.27 2.54 17.8 6/1.80 1/1.80 5.4 62 5.81 1.8793 83
25 4 23.86 3.98 27.8 6/2.25 1/2.25 6.8 97 9.02 1.2028 109
35 6 34.35 5.73 40.1 6/2.70 1/2.70 8.1 140 12.7 0.8353 136
44 32 43.98 31.67 75.7 14/2.00 7/2.40 11.2 373 45.46 0.6573 166
50 8 48.25 8.04 56.3 6/3.20 1/3.20 9.6 196 17.18 0.5946 168
50 30 51.17 29.85 81 12/2.33 7/2.33 11.7 378 44.28 0.5644 181
70 12 69.89 11.4 81.3 26/1.85 7/1.44 11.7 284 26.31 0.413 211
95 15 94.39 15.33 109.7 26/2.15 7/1.67 13.6 383 35.17 0.3058 254
95 55 96.51 56.3 152.8 12/3.20 7/3.20 16 714 80.2 0.2992 267
105* 75 105.67 75.55 181.2 14/3.10 19/2.25 17.5 899 106.69 0.2736 284
120 20 121.57 19.85 141.4 26/2.44 7/1.90 15.5 494 44.94 0.2374 297
120 70 122.15 71.25 193.4 12/3.60 7/3.60 18 904 98.16 0.2364 308
125 30 127.92 29.85 157.8 30/2.33 7/2.33 16.3 590 57.86 0.2259 308
150 25 148.86 24.25 173.1 26/2.70 7/2.10 17.1 604 54.37 0.1939 336
170 40 171.77 40.08 211.9 30/2.70 7/2.70 18.9 794 77.01 0.1682 369
185 30 183.78 29.85 213.6 26/3.00 7/2.33 19 744 66.28 0.1571 382
210 35 209.1 34.09 243.2 26/3.20 7/2.49 20.3 848 74.94 0.138 414
210 50 212.06 49.48 261.5 30/3.00 7/3.00 21 979 92.25 0.1363 420
230 30 230.91 29.85 260.8 24/3.50 7/2.33 21 874 73.09 0.1249 438
240 40 243.05 39.49 282.5 26/3.45 7/2.68 21.8 985 86.46 0.1188 453
265 35 263.66 34.09 297.8 24/3.74 7/2.49 22.4 998 82.94 0.1094 475
300 50 304.26 49.48 353.7 26/3.86 7/3.00 24.5 1233 105.09 0.0949 520
305 40 304.62 39.49 344.1 54/2.68 7/2.68 24.1 1155 99.3 0.0949 518
340 30 339.29 29.85 369.1 48/3.00 7/2.33 25 1174 92.56 0.0851 551
380 50 381.7 49.48 431.2 54/3.00 7/3.00 27 1448 120.91 0.0757 593
385 35 386.04 34.09 420.1 48/3.20 7/2.49 26.7 1336 104.31 0.0748 595
435 55 434.29 56.3 490.6 54/3.20 7/3.20 28.8 1647 136.27 0.0666 641
450 40 448.71 39.49 488.2 48/3.45 7/2.68 28.7 1553 120.19 0.0644 651
490 65 490.28 63.55 553.8 54/3.40 7/3.40 30.6 1860 152.85 0.059 689
550 70 549.65 71.25 620.9 54/3.60 7/3.60 32.4 2085 167.42 0.0526 737
560 50 561.7 49.48 611.2 48/3.86 7/3.00 32.2 1943 146.28 0.0514 744
680* 85 678.58 85.95 764.5 54/4.00 19/2.40 36 2564 209.99 0.0426 834

Table 6 – JIS C 3110 (ACSR)

Nominal Sectional Area (mm²) Sectional Area (mm²) Stranding Overall Diameter (mm) Weight (kg/km) Breaking Load (kN) Electrical Resistance @20°C (Ω/km)
AL Steel AL Steel Total AL (No.×mm) Steel (No.×mm)
25 24.9 4.2 29.1 6/2.30 1/2.30 6.9 101 8.89 1.15
32 31.9 5.3 37.2 6/2.60 1/2.60 7.8 129 11.17 0.899
58 57.7 9.6 67.3 6/3.50 1/3.50 10.5 233 19.40 0.497
95 95.4 15.9 111.3 6/4.50 1/4.50 13.5 385 31.16 0.301
120 124.7 29.1 153.8 30/2.3 7/2.3 16.1 574 54.29 0.233
160 159.3 37.2 196.5 30/2.6 7/2.6 18.2 733 68.40 0.182
200 198.2 46.2 244.4 30/2.9 7/2.9 20.3 912 84.67 0.147
240 241.2 59.3 300.5 30/3.2 7/3.2 22.4 1110 100.06 0.120
330 326.8 52.8 379.6 26/4.0 7/3.1 25.3 1320 107.31 0.0888
410 413.4 67.3 480.7 26/4.5 7/3.5 28.5 1673 136.32 0.0702
520 519.5 67.3 586.8 54/3.5 7/3.5 31.2 1969 152.88 0.0559
610 612.4 79.4 691.8 54/3.8 7/3.8 34.2 2320 179.83 0.0474
810 814.5 56.3 870.8 45/3.8 7/3.2 38.4 2700 181.10 0.0356

Table 7 – AS 3607 (ACSR)

Code name Construction (Aluminium/Steel) Calculated equivalent aluminium area (mm²) Cross-sectional area (mm²) Approx. overall diameter (mm) Approx. weight (kg/km) Calculated minimum breaking load (kN) Calculated DC resistance at 20°C (Ω/km)
Al (No./mm) Steel (No./mm) Al Steel
Almond 6/2.50 1/2.50 29.0 34.36 – 7.50 119 10.5 0.975
Apricot 6/2.75 1/2.75 35.1 41.58 – 8.30 144 12.6 0.805
Apple 6/3.00 1/3.00 41.8 49.48 – 9.00 171 14.9 0.677
Banana 6/3.75 1/3.75 65.2 77.31 – 11.3 268 22.7 0.433
Cherry 6/4.75 7/1.60 105 120.4 – 14.3 402 33.4 0.271
Grape 30/2.50 7/2.50 144 181.6 – 17.5 677 63.5 0.196
Lemon 30/3.00 7/3.00 207 261.5 – 21.0 973 90.4 0.136
Lychee 30/3.25 7/3.25 243 306.9 – 22.8 1,140 105 0.116
Lime 30/3.50 7/3.50 282 356.0 – 24.5 1,320 122 0.100
Mango 54/3.00 7/3.00 373 431.2 – 27.0 1,440 119 0.0758
Orange 54/3.25 7/3.25 438 506.0 – 29.3 1,690 137 0.0646
Olive 54/3.50 7/3.50 508 586.9 – 31.5 1,960 159 0.0557
Pawpaw 54/3.75 19/2.25 583 672.0 – 33.8 2,240 178 0.0485
Peach 54/4.75 19/2.85 936 1085 – 42.8 3,660 292 0.0303

Standard High‑Strength Conductor

Quince 3/1.75 4/1.75 8.74 16.84 5.3 95 12.7 3.25
Raisin 3/2.50 4/2.50 17.8 34.36 7.5 195 24.4 1.59
Sultana 4/3.00 3/3.00 31.5 49.48 9.0 243 28.3 0.897
Walnut 4/3.75 3/3.75 49.2 77.31 11.3 380 43.9 0.573

* Current ratings are for guidance; actual values depend on installation conditions.
