Aluminum Alloy Conductor Steel Reinforced (AACSR) Cable – High Strength Overhead Conductor – IEC, ASTM, DIN, NF

Overhead Line
Description

Product Overview

The AACSR with high strength are used in river crossing conductors, transmission of power through overhead ground wires on long span installations against any given resistance of conductor. It can be used as large span conductor, heavy ice wire or overhead communications wire, ground wire. Temperature for continuous use can be up to 90 °C. Temperature of heat‑resistant AACSR can be up to 150 °C and above. It has high current carrying capacity.

Standards: ASTM, AS, BS, CSA, DIN, IEC, NFC, SS – etc.

Specifications

Property Details
ROHS Compliant ✓
Conductor Type Aluminum Alloy Conductor Steel Reinforced (AACSR)
Operating Temperature (standard) Up to 90°C
Operating Temperature (heat‑resistant) Up to 150°C and above
Applications River crossing, long span, heavy ice, ground wire

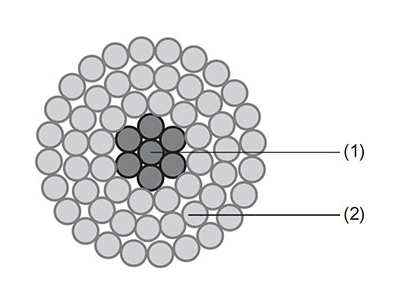

Construction

  1. Steel part: Zinc‑coated steel wires, one or multi‑wires concentric stranded. Core wire available with Class A, B or C galvanized; “aluminized” (AZ); or aluminum clad (AW). Additional corrosion protection via grease to core or complete cable infusion.

  2. Aluminium alloy part: Aluminium alloy wires (6201‑T81), concentric stranded.

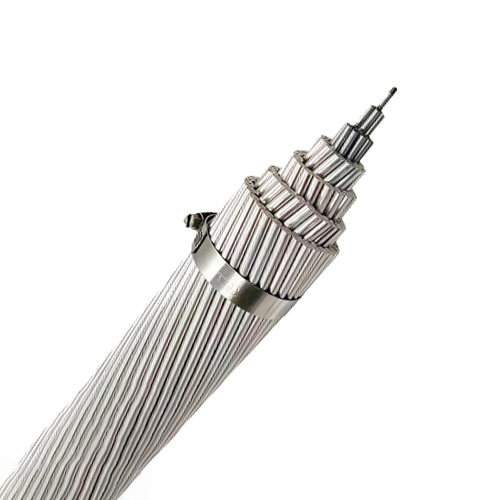

AACSR is a concentrically stranded conductor composed of one or more layers of 6201‑T81 aluminum alloy wire stranded with a high‑strength coated steel core. The core may be single wire or stranded depending on the size. The proportions of aluminum alloy and steel can be varied to obtain the relation between current carrying capacity and mechanical strength best suited to each application.

Technical Parameters

Table 1 – IEC 61089 (A2/S1A & A2/S3A Conductors)

Code Number Nominal Area (mm²) No./Dia. of Al Alloy Wire No./Dia. of Steel Wire Overall Diameter (mm) Approx. Weight (kg/km) Max. DC Resistance at 20°C (Ω/km) Rated Strength A2/S1A (kN) Rated Strength A2/S3A (kN)
16 16 6/1.98 1/1.98 5.93 74.4 1.7934 9.02 9.88
25 25 6/2.47 1/2.47 7.41 116.2 1.1478 13.96 15.25
40 40 6/3.13 1/3.13 9.38 185.9 0.7174 22.02 24.17
63 63 6/3.92 1/3.92 11.8 292.8 0.4555 34.68 37.58
100 100 18/2.85 1/2.85 14.3 366.4 0.288 41.24 42.97
125 125 18/3.19 1/3.19 16 458 0.2304 51.23 53.47
125 125 26/2.65 7/2.06 16.8 579.9 0.231 69.86 76.42
160 160 18/3.61 1/3.61 18 586.2 0.18 65.58 68.03
160 160 26/3.00 7/2.34 19 742.3 0.1805 88.52 96.61
200 200 18/4.04 1/4.04 20.2 732.8 0.144 81.97 85.04
200 200 26/3.36 7/2.61 21.3 927.9 0.1444 110.64 120.77
250 250 22/4.08 7/2.27 23.1 1013.5 0.1154 117.09 124.72
250 250 26/3.75 7/2.92 23.8 1159.6 0.1155 138.31 150.96
315 315 45/3.2 7/2.14 25.8 1196.5 0.0917 136.28 143.3
315 315 26/4.21 7/3.28 26.7 1461.4 0.0917 171.9 188.44
400 400 45/3.61 7/2.41 28.9 1519.4 0.0722 172.1 180.36
400 400 54/3.29 7/3.29 29.7 1738.3 0.0723 201.46 218.17
450 450 45/3.83 7/2.55 30.6 1709.3 0.0642 193.61 203.28
450 450 54/3.49 7/3.49 31.5 1955.6 0.0643 226.64 245.44
500 500 45/4.04 7/2.69 32.3 1899.3 0.0578 215.12 225.86
500 500 54/3.68 7/3.68 33.2 2172.9 0.0578 251.82 269.73
560 560 45/4.27 7/2.85 34.2 2127.2 0.0516 240.93 252.97
560 560 54/3.9 19/2.34 35.1 2420.9 0.0516 283.21 305.25
630 630 72/3.58 7/2.39 35.8 2248 0.0459 249.62 258.08
630 630 54/4.13 19/2.48 37.2 2723.5 0.0459 318.61 343.4
710 710 72/3.8 7/2.53 38 2533.4 0.0407 281.32 290.85
710 710 54/4.39 19/2.63 39.5 3069.4 0.0407 359.06 387.01
800 800 72/4.04 7/2.69 40.4 2854.6 0.0361 316.98 327.72
800 800 84/3.74 7/3.74 41.1 3145.1 0.0362 356.03 374.44
900 900 72/4.28 7/2.85 42.8 3211.4 0.0321 356.6 368.69
900 900 84/3.96 7/3.96 43.6 3538.3 0.0322 400.53 421.25
1000 1000 84/4.18 19/2.61 45.9 3916.8 0.0289 446.37 471.67
1120 1120 84/4.42 19/2.65 48.6 4386.8 0.0258 499.93 528.27

Table 2 – Construction Details (IEC 61089 – Alternative Presentation)

Nominal Cross Section (mm²) Alloy Cross Section (mm²) Steel Cross Section (mm²) No. of Alloy Wires Diameter of Alloy Wires (mm) No. of Steel Wires Diameter of Steel Wires (mm) Overall Diameter (mm) Linear Mass (kg/km) Rated Tensile Strength (daN) Max. DC Resistance at 20°C (Ω/km)
163 140 23 26 2.62 7 2.04 16.6 560 7500 0.24
173 140 33 30 2.44 7 2.44 17.1 650 8740 0.24
186 160 26 26 2.8 7 2.18 17.7 645 8560 0.21
198 160 38 30 2.61 7 2.61 18.3 740 10600 0.21
209 180 29 26 2.97 7 2.31 18.8 725 9510 0.187
222 180 42 30 2.76 7 2.76 19.3 825 11200 0.187
232 200 32 26 3.13 7 2.43 19.8 800 10600 0.168
247 200 47 30 2.91 7 2.91 20.4 920 12400 0.168
260 224 36 26 3.31 7 2.57 21 900 11800 0.15
276 224 52 30 3.08 7 3.08 21.6 1025 13900 0.15
291 250 41 26 3.5 7 2.72 22.2 1010 12900 0.135
308 250 58 30 3.26 7 3.26 22.8 1145 15600 0.135
326 280 46 26 3.7 7 2.88 23.4 1140 14400 0.12
345 280 65 30 3.45 7 3.45 24.2 1280 17100 0.12
367 315 52 26 3.93 7 3.06 24.9 1276 16300 0.107
387 315 72 30 3.66 19 2.2 25.6 1433 19000 0.107
413 355 58 26 4.17 7 3.24 26.4 1433 18300 0.095
436 355 81 30 3.88 19 2.33 27.2 1614 21100 0.095
465 400 65 26 4.43 7 3.45 28.1 1612 20700 0.0842
491 400 91 30 4.12 19 2.47 28.8 1816 23700 0.0842
509 450 59 54 3.26 19 1.98 29.5 1703 21500 0.0748
563 500 63 54 3.43 19 2.06 30.9 1873 22900 0.0673
631 560 71 54 3.63 19 2.18 32.7 2101 25700 0.0601
710 630 80 54 3.85 19 2.31 34.6 2365 28600 0.0534
800 710 90 54 4.09 19 2.45 36.8 2665 32200 0.0474
901 800 101 54 4.34 19 2.6 39 3000 36300 0.042
973 900 73 84 3.69 19 2.21 40.6 3062 35500 0.0374
1081 1000 81 84 3.89 19 2.33 42.8 3395 39100 0.0337
1211 1120 91 84 4.12 19 2.47 45.3 3803 43900 0.03
1352 1250 102 84 4.35 19 2.61 47.8 4250 49000 0.027

Table 3 – ASTM B711 (AACSR)

Designation Aluminium Strands Aluminium Wire Diameter (mm) Steel Strands Steel Wire Diameter (mm) Cross-sectional Area (mm²) Total Cross-sectional Area (mm²) OD (mm) Resistance at 20°C (Ω/km)
70/12 26 1.85 7 1.4 69.9 + 11.4 81.3 11.7 0.479
95/15 26 2.15 7 1.7 94.4 + 15.3 109.7 13.6 0.355
125/30 30 2.33 7 2.3 127.9 + 29.8 157.8 16.3 0.262
150/25 26 2.7 7 2.1 148.9 + 24.2 173.1 17.1 0.225
170/40 30 2.7 7 2.7 171.8 + 40.1 211.8 18.9 0.195
185/30 26 3 7 2.3 183.8 + 29.8 213.6 19 0.182
210/50 30 3 7 3 212.1 + 49.5 261.5 21 0.158
230/30 24 3.5 7 2.3 230.9 + 29.8 260.8 21 0.145
265/35 24 3.74 7 2.5 263.7 + 34.1 297.7 22.4 0.127
305/40 54 2.68 7 2.7 304.6 + 39.5 344.1 24.1 0.11
380/50 54 3 7 3 381.7 + 49.5 431.2 27 0.088
450/40 48 3.45 7 2.7 448.7 + 39.5 488.2 28.7 0.075
560/50 48 3.86 7 3 561.7 + 49.5 611.2 32.2 0.06
680/85 54 4 19 2.4 678.6 + 86 764.5 36 0.049

Table 4 – DIN 48206 (AACSR)

Designation Aluminium Steel Cross-sectional Area (mm²) OD (mm) Resistance at 20°C (Ω/km)
Strands Wire Diam. (mm) Strands Wire Diam. (mm) Aluminium Steel Total
PHLOX 116.2 18 2 19 2 56.5 59.7 116.2 14 0.591
PHLOX 147.1 18 2.25 19 2.3 71.6 75.5 147.1 15.75 0.467
PASTEL 147.1 30 2.25 7 2.3 119.3 27.8 147.1 15.75 0.279
PHLOX 181.6 18 2.5 19 2.5 88.4 93.3 181.6 17.5 0.378
PASTEL 181.6 30 2.5 7 2.5 147.3 34.4 181.6 17.5 0.226
PHLOX 228 18 2.8 19 2.8 110.8 117 227.8 19.6 0.3
PASTEL 228 30 2.8 7 2.8 184.7 43.1 227.8 19.6 0.18
PHLOX 288 18 3.15 19 3.2 140.3 148.1 288.3 22.05 0.238
PASTEL 288 30 3.15 7 3.2 233.8 54.6 288.3 22.05 0.142
PASTEL 299 42 2.5 19 2.5 206.2 93.3 299.4 22.45 0.162
PHLOX 376 24 2.8 37 2.8 147.8 227.8 375.6 26.4 0.226

Table 5 – NF C34-125 (AACSR)

Designation Aluminium Steel Cross-sectional Area (mm²) OD (mm) Resistance at 20°C (Ω/km)
Strands Wire Diam. (mm) Strands Wire Diam. (mm) Aluminium Steel Total
70/12 26 1.85 7 1.4 69.9 11.4 81.3 11.7 0.479
95/15 26 2.15 7 1.7 94.4 15.3 109.7 13.6 0.355
125/30 30 2.33 7 2.3 127.9 29.8 157.8 16.3 0.262
150/25 26 2.7 7 2.1 148.9 24.2 173.1 17.1 0.225
170/40 30 2.7 7 2.7 171.8 40.1 211.8 18.9 0.195
185/30 26 3 7 2.3 183.8 29.8 213.6 19 0.182
210/50 30 3 7 3 212.1 49.5 261.5 21 0.158
230/30 24 3.5 7 2.3 230.9 29.8 260.8 21 0.145
265/35 24 3.74 7 2.5 263.7 34.1 297.7 22.4 0.127
305/40 54 2.68 7 2.7 304.6 39.5 344.1 24.1 0.11
380/50 54 3 7 3 381.7 49.5 431.2 27 0.088
450/40 48 3.45 7 2.7 448.7 39.5 488.2 28.7 0.075
560/50 48 3.86 7 3 561.7 49.5 611.2 32.2 0.06
680/85 54 4 19 2.4 678.6 86 764.5 36 0.049
