Product Overview

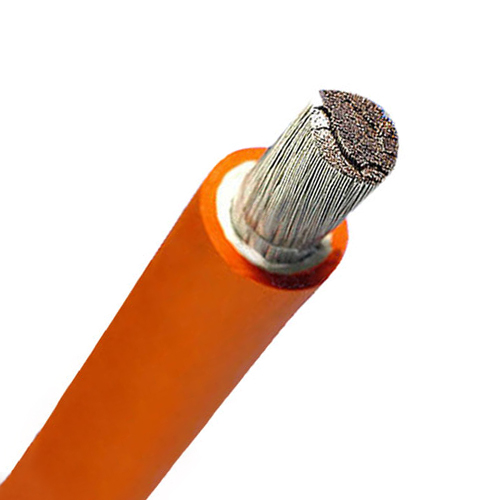

This PVC insulated single-core unshielded low-tension wire is used for automobiles, motorcycles, and other motor vehicles. It meets the rigorous demands of automotive wiring, providing excellent electrical and mechanical properties.
Standard Compliance: ISO 6722
Technical Data:
-
Temperature range:
-
During installation: +5°C up to +90°C
-
Fixed installed: -30°C up to +90°C
-
Short circuit (max. 5 s): up to 160°C
-
Ambient temperature at storage: up to 40°C
-
-
Minimum inner bending radius: 4D
-
Behaviour in fire: IEC 60332-1
Specifications
| Property | Details |
|---|---|
| Voltage Level | Low Voltage |
| Working Temperature | 90°C |
| Fire Resistance | ✓ (IEC 60332-1) |
| Standard | ISO 6722 |

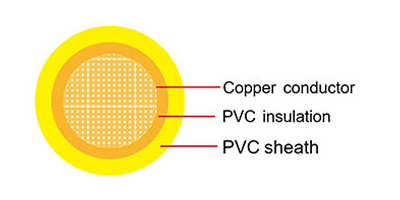

Construction
-
Conductor: Cu-ETP1 bare according to DIN EN 13602
-
Insulation: PVC
-
Sheath: PVC
Possible insulation colors: As per customer request
Technical Parameters – Datasheet
| Nominal Cross-section (mm²) | Conductor No. and Dia. of Wires (No./mm) | Conductor Diameter max. (mm) | Electrical Resistance at 20°C max. (mΩ/m) | Insulation Wall Thickness nom. (mm) | Diameter of Core (mm) | Sheath Thickness nom. (mm) | Overall Diameter min. (mm) | Overall Diameter max. (mm) | Weight approx. (kg/km) |
|---|---|---|---|---|---|---|---|---|---|
| 1×0.50 | 16/0.21 | 1.00 | 37.10 | 0.60 | 2.10 | 0.40 | 2.70 | 3.10 | 14 |
| 1×0.75 | 24/0.21 | 1.20 | 24.70 | 0.60 | 2.30 | 0.40 | 3.00 | 3.30 | 17 |
| 1×1.00 | 32/0.21 | 1.35 | 18.50 | 0.60 | 2.50 | 0.40 | 3.20 | 3.60 | 20 |
| 1×1.50 | 30/0.26 | 1.70 | 12.70 | 0.60 | 2.80 | 0.50 | 3.70 | 4.10 | 28 |
| 1×2.00 | 40/0.26 | 2.00 | 9.42 | 0.60 | 3.00 | 0.50 | 3.90 | 4.30 | 33 |
| 1×2.50 | 50/0.26 | 2.20 | 7.60 | 0.70 | 3.50 | 0.50 | 4.30 | 4.80 | 41 |
