Product Overview
The NTSKCGWÖU 0.6/1 (1.2) kV Loader Cable is specifically designed for connection of material handling machines such as loaders in mines and other industrial applications. Engineered to withstand the rigorous demands of mobile mining equipment, this cable combines exceptional mechanical strength with excellent environmental resistance.
Key Standards:
-
DIN VDE 0250 Part 813
Key Characteristics
-
Exceptional Mechanical Durability: Excellent tear, impact, and abrasion resistance with torsion-resistant construction for demanding mobile applications.
-
Environmental Resistance: UV, sunlight, ozone, and oil resistant for reliable outdoor and industrial performance.
-
Flame Retardant: Meets flame retardancy requirements for enhanced safety.
-
Extended Temperature Range: Rated for operation from -50°C to +90°C.
-
Tight Bending Radius: Minimum bending radius of 4 x cable diameter for flexible installation.
-
Anti-Torsion Design: Polyamide braid between sheath layers provides excellent torsion resistance for reeling applications.
Specifications
| Parameter | Details |
|---|---|
| Voltage Rating | 0.6/1 (1.2) kV (Low Voltage) |
| Temperature Range | -50°C to +90°C |
| Bending Radius | 4 x D (D = cable diameter) |
| Oil Resistance | Excellent |
| UV Resistance | Excellent |
| Flame Retardant | Yes |
| Conductor Class | Class 5 flexible tinned copper (IEC 60228) |
| Outer Jacket Color | Black |
Construction
| Component | Description |
|---|---|
| Conductor | Annealed flexible stranded tin-coated copper, Class 5 to IEC 60228 for maximum flexibility and corrosion resistance. |
| Separator | If needed, a suitable semi-conductive tape applied between conductor and insulation. |
| Insulation | Ethylene-propylene rubber (EPR) type 3GI3 to DIN VDE 0207 part 20, providing excellent electrical and thermal properties. |
| Pilot Cores | Tinned copper conductors Class 5 with EPR insulation for control and monitoring functions. |
| Earth Core | Tinned copper conductors Class 5 covered with semi-conductive compound for reliable earthing. |

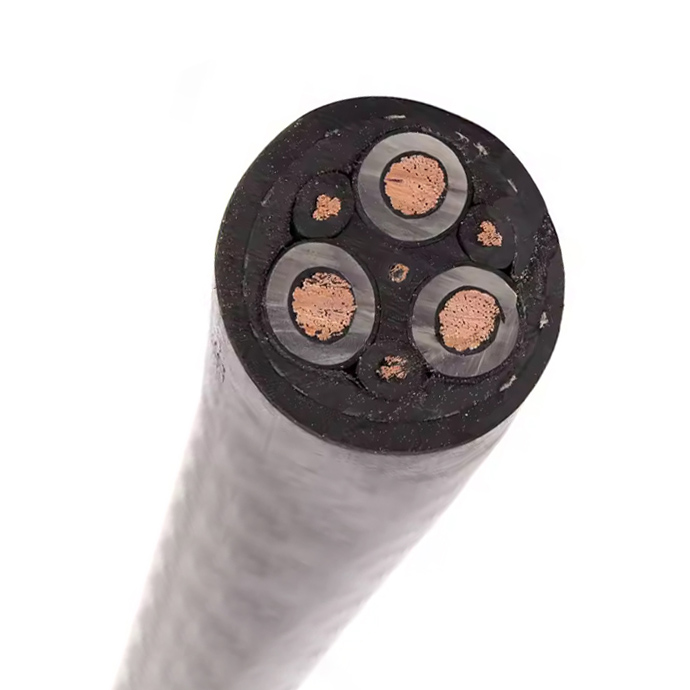

| Core Assembly | Three power cores, one earth core, and two pilot cores laid up on a cradle separator with Kevlar reinforcement in the centre for enhanced tensile strength. |
| Semi-Conductive Covering | Semi-conductive layer applied over the assembled core for electrical stress control. |
| Internal Sheath Layer | A synthetic thermosetting compound type 5GM5 to DIN VDE 0207 part 21. |
| Anti-Torsion Braid | Braid of polyamide threads applied between internal and outer sheath layers for superior torsion resistance. |
| Outer Sheath Layer | A synthetic thermosetting compound type 5GM5 to DIN VDE 0207 part 21. |
| Outer Jacket Color | Black. |
Technical Parameters
| Number of Cores & Cross-Section | Range Overall Diameter (Min.-Approx.-Max.) | Approx. Weight | Conductor Resistance at 20°C | Inductive Reactance at 50 Hz | Capacitance | Short Circuit Capacity | Current-Carrying Capacity at 30°C |
|---|---|---|---|---|---|---|---|
| mm | kg/km | Ω/km | Ω/km | μF/km | kA | A | |
| 3×16 + 1×6 + 2×6P | 32.0 - 32.3 - 35.0 | 1526 | 1.24 | 0.089 | 0.39 | 2.3 | 99 |
| 3×25 + 1×6 + 2×6P | 37.0 - 37.4 - 40.0 | 2097 | 0.795 | 0.088 | 0.42 | 3.6 | 131 |
| 3×50 + 1×10 + 2×10P | 44.0 - 45.1 - 50.0 | 3357 | 0.565 | 0.082 | 0.32 | 6.4 | 202 |
Typical Applications
-
Connection of loaders and material handling machines in underground mines
-
Power supply for mobile mining equipment
-
Industrial material handling systems
-
Applications requiring exceptional cold flexibility down to -50°C
-
Environments demanding oil resistance and flame retardancy
-
Reeling and trailing applications with torsion stress
