Type 61B 0.64/1.1kV Flexible Copper Screened Mining Cable – SANS 1520-1 Certified – Water & Flame Retardant

Machinery & Equipment Mining Cables
Description

Product Overview

The Type 61B 0.64/1.1kV flexible copper screened mining cable is specifically designed for powering electrically driven machinery and movable electrical apparatus in hazardous industrial environments. Manufactured in accordance with stringent South African National Standards (SANS), this cable combines exceptional flexibility with robust protection, including individual copper braided screens for each power core and a rugged polychloroprene sheath. It is engineered for fixed or occasional movement (not for continuous reeling) in mines and similar demanding locations.

Applications

  • Electrically driven machines and movable electric apparatus in hazardous areas.

  • Not for reeling purposes.

  • Other industrial applications requiring flexible, screened power cables.

Features

  • Excellent Flexibility: Class 5 tinned annealed copper conductors for easy installation and routing.

  • Environmental Resistance: Water resistant, flame retardant, and resistant to UV, sunlight, ozone, and oil.

  • Wide Temperature Range: Operating ambient temperature down to -25°C; maximum conductor temperature 90°C.

  • Custom Identification: Embossing marking available as per order.

Specifications

Parameter Details
Voltage Rating 0.64/1.1 kV
Low Voltage Yes
Cold Resistance -25°C
UV Resistance Yes
Water Resistance Yes
Working Temperature 90°C
Oil Resistance Yes
Flame Retardant Yes

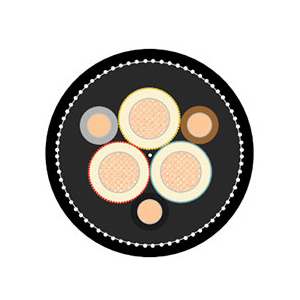

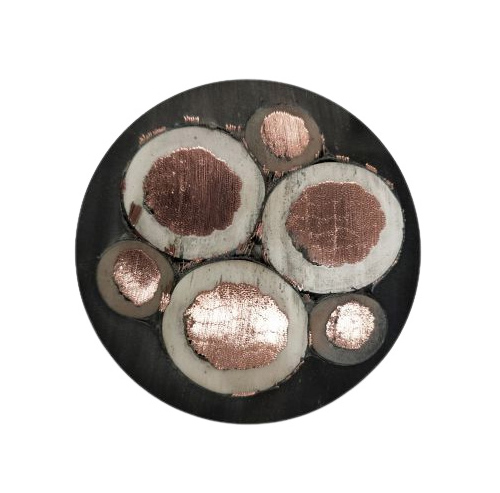

Construction

The Type 61B cable features a sophisticated multi-component design to ensure reliable performance in harsh mining environments:

  1. Conductors: Flexible Class 5 tinned annealed copper wires, stranded with left-hand lay, complying with SANS 1411-1. Each conductor is covered with a semi-conducting rubber screen.

  2. Insulation: Ethylene propylene thermosetting compound type RD 3, complying with SANS 1411-3, with a strippable semi-conducting core screen applied via triple extrusion.

  3. Core Assembly: Three power cores, each shielded with a tinned copper braid screen, and three unscreened pilot cores (one in each interstice) laid up with right-hand lay around a semi-conductive rubber filler.

  4. Inner Sheath: Polychloroprene thermosetting compound type RS 6, complying with SANS 1411-3.

  5. Reinforcement: An open nylon braid comprising a minimum of 16 nylon strings.

  6. Outer Sheath: Polychloroprene thermosetting compound type RS 6, complying with SANS 1411-3.

  7. Colour of Sheath: Black.

  8. Tests: The cable is tested in accordance with SANS 1520-1.
