Product Overview
Electrically driven machines and movable electric apparatus in hazardous areas. Not for reeling purposes. Suitable for other industrial applications.
Features:
-
Excellent flexibility
-
Water resistant and flame retardant
-
Operating temperature: min. ambient -25°C, max. conductor 90°C
-
UV, sunlight, ozone, and oil resistant
-
Embossing marking as per order
Specifications
| Parameter | Value |
|---|---|
| Voltage Level | Low Voltage |
| UV Resistance | Yes |
| Working Temperature | 90°C |
| Cold Resistant | -40°C |

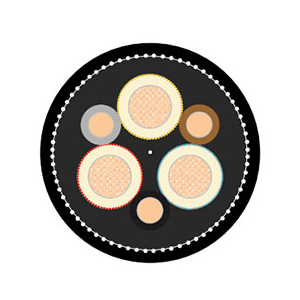

Construction
| Component | Description |
|---|---|
| Cable Type | Type 61A 0.64/1.1 kV |
| Conductors | Flexible Class 5, complying with SANS 1411-1, made from tinned annealed copper wires, left-hand lay, with semi-conducting rubber screen. |
| Insulation | Ethylene propylene thermosetting compound, type RD 3, complying with SANS 1411-3, with a strippable semi-conducting core screen (triple extruded). |
| Core Assembly | Three tinned copper braided screened power cores and three unscreened pilot cores (one in each interstice), laid up with right-hand lay around a semi-conductive cradle centre. (Only 16 mm²: around rubber (RD1) filler centre). |
| Inner Sheath | Poly-chloroprene thermosetting compound, type RS 6, complying with SANS 1411-3. |
| Reinforcement | An open nylon braid consisting of a minimum of 16 nylon strings. |
| Outer Sheath | Poly-chloroprene thermosetting compound, type RS 6, complying with SANS 1411-3. |
| Sheath Colour | Black |
| Tests | SANS 1520-1 |
