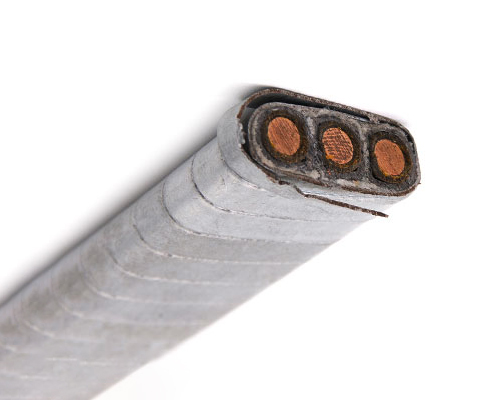

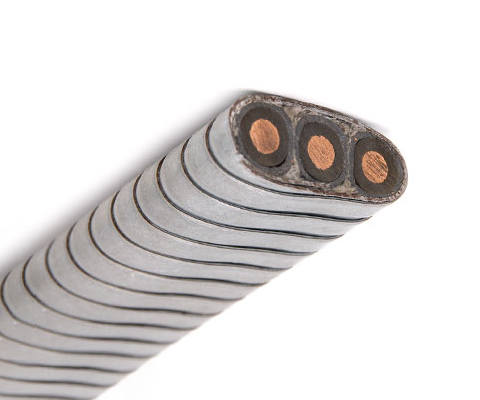

EPDM Insulated and Lead Sheathed, Galvanized Steel Strip Armoring, Flat Cable for Submersible Oil Pump

Product Overview

This specialized flat cable is engineered for Electrical Submersible Pump (ESP) systems in demanding oil well applications. It is designed to provide reliable medium-voltage power transmission in deep, high-temperature well environments. The construction features EPDM insulation, a continuous lead sheath for absolute moisture barrier, and galvanized steel strip armoring for maximum mechanical protection, ensuring long-term performance under extreme downhole conditions.

Key Features & Benefits

  • High-Temperature Rated: Conductor rated for continuous operation at temperatures up to 232°C (450°F).

  • Superior Downhole Protection: The combination of a hermetic lead sheath and robust steel armor provides unmatched defense against high pressure, mechanical damage, and corrosive wellbore fluids.

  • Excellent Environmental Resistance: EPDM insulation offers stable performance in oil, gas, and high-temperature environments. The cable maintains flexibility at low temperatures down to -40°C.

  • Industry Standard Compliance: Manufactured to meet critical API and IEEE standards for ESP systems, ensuring interoperability and reliability.

  • Flat Profile Design: Facilitates easier handling and installation along the production tubing in the confined space of a well casing.

Specifications

Parameter Specification
Rated Voltage Medium Voltage (As per design, e.g., 3kV, 5kV)
Conductor As per API specification (e.g., compacted strands)
Insulation Ethylene Propylene Diene Monomer (EPDM)
Lead Sheath Continuous extruded lead alloy for a total moisture barrier.
Armoring Galvanized Steel Strip
Temperature Rating Continuous Operation: Up to 232°C (450°F)
Cold Resistance Minimum Temperature: -40°C
Key Standards API RP 11S5, API RP 11S6, IEEE 1018

Construction (From Core Outward)

  1. Conductor: Compacted or stranded copper conductor.

  2. Conductor Shield: Semi-conductive layer (typical for MV cables).

  3. Insulation: EPDM (Ethylene Propylene Diene Monomer).

  4. Insulation Shield: Semi-conductive layer.

  5. Metallic Moisture Barrier: Continuous extruded lead sheath.

  6. Protective Wrap: Glass fiber cloth or similar bedding.

  7. Armor: Galvanized steel strips applied longitudinally or helically for crush and tensile strength.

  8. Optional Outer Jacket: May be specified for additional protection.

Standards & Compliance

This cable is designed and manufactured to meet the following industry standards for Electrical Submersible Pumping systems:

  • API RP 11S5: Recommended Practice for Application of Electrical Submersible Cable Systems.

  • API RP 11S6: Recommended Practice for Testing of Electric Submersible Pump Cable Systems.

  • IEEE 1018: IEEE Recommended Practice for Specifying Electric Submersible Pump Cable – Electrical.

Typical Applications

  • Power supply cable for Electrical Submersible Pumps (ESP) in onshore and offshore oil production wells.

  • Suitable for high-temperature, high-pressure (HTHP) wells and wells with corrosive fluids.

  • Used in directional and deep vertical well applications.
