Product Overview
The CHEV/SA is a standard, cost-effective marine communication cable designed for general-purpose telecommunication and data transmission applications. It features reliable EPR insulation and a durable PVC outer sheath, providing a robust and flame-retardant solution for internal shipboard wiring, industrial control circuits, and general instrumentation where specialized armor or screening is not required.
Key Features & Benefits
-
Cost-Effective & Reliable: Provides the essential benefits of marine-grade EPR insulation (90°C thermal stability) with a standard PVC sheath, offering a dependable and economical cable solution.
-
Flame Retardant: Complies with IEC 60332 flame retardancy standards for both single and bunched cable installations, enhancing safety in general applications.
-
Flexible & Easy to Install: The unarmored and unscreened design makes this cable lightweight and highly flexible, simplifying handling and installation in cable trays, conduits, and behind panels.
-
Durable Sheathing: The PVC sheath (V) provides good resistance to abrasion, moisture, and general environmental factors, suitable for standard marine and industrial indoor use.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Sheath Color: Standard Black (other colors available on request).

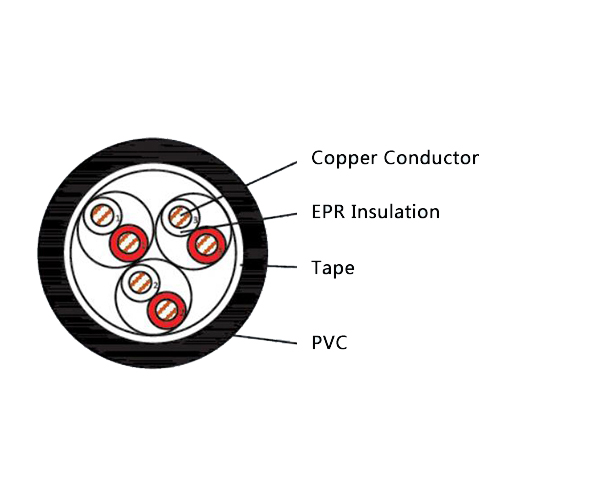

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Sheath | V | PVC |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Low Smoke Emission: IEC 61034
-
Note on Halogens: This cable contains PVC and is not halogen-free per IEC 60754.
Applications
This general-purpose cable is suitable for standard communication and control circuits in:
-
Marine & Offshore: Internal telecommunication, general alarm systems, and non-critical instrumentation wiring on ships and platforms, particularly in accommodation and administrative areas.
-
Industrial: Basic data transmission, signaling, and control circuits in power plants, manufacturing facilities, and building automation where specialized protection (screening/armor) is not required.
