Product Overview
The CHEPJP/SC is a screened, low smoke halogen free (LSHF) marine communication cable designed for applications where maximum fire safety and clear signal transmission are critical. It combines EPR insulation with a cross-linked polyolefin (SHF2) sheath, a dedicated metallic screen, and full LSHF compliance. This cable provides superior fire performance—minimizing smoke and toxic fumes—along with effective EMI protection, making it ideal for confined and safety-sensitive spaces on vessels, offshore platforms, and in industrial plants.
Key Features & Benefits
-
Enhanced Fire & Safety Performance: Fully Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) construction reduces corrosive gases and improves visibility in fire situations. Meets stringent IEC 60332 flame retardancy standards.
-
Effective EMI/RFI Shielding: The tinned copper braid or Alu/Polyester tape screen protects sensitive data and instrumentation signals from electromagnetic and radio frequency interference, ensuring signal integrity.
-
Durable & Resilient Sheath: The Cross-linked Polyolefin (SHF2) sheath offers excellent mechanical toughness, chemical resistance, and environmental durability, while maintaining the LSHF properties.
-
Optimized for Sensitive Areas: The combination of LSHF properties and effective shielding makes this cable perfect for engine rooms, control rooms, accommodation areas, and public spaces where safety and reliable communications are paramount.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Sheath Color: Standard Black (other colors available on request).

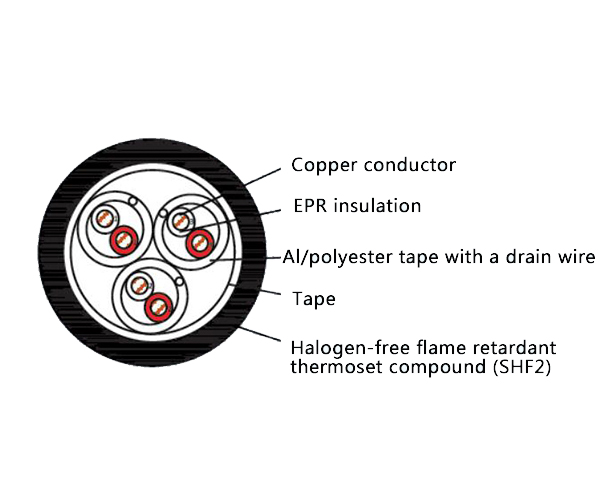

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Screen | P | Tinned Copper Wire Braid, or Alu/Polyester Tape + Copper Drain Wire |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This screened LSHF cable is specifically designed for safety-critical and signal-sensitive applications in:
-
Marine & Offshore: Telecommunications, alarm systems, instrumentation, and computer networks on ships, oil platforms, and ferries, especially in areas with high personnel occupancy or sensitive electronic equipment.
-
Industrial: Critical control and data systems in power generation, chemical plants, metro systems, and public buildings where regulations mandate low smoke, zero halogen materials and protection against electrical noise.
