Product Overview
The CHEVP92/SA is a robust screened and armored marine communication cable, designed for applications requiring reliable data transmission with protection against electromagnetic interference (EMI) and mechanical stress. Featuring EPR insulation, a composite metallic screen, galvanized steel wire armor, and a durable PVC outer sheath, this cable delivers enhanced performance and durability for critical systems in demanding marine and industrial environments.
Key Features & Benefits
-
EMI/RFI Shielding: Equipped with a tinned copper braid or Alu/Polyester tape screen, providing effective protection against electromagnetic and radio frequency interference for clear signal integrity.
-
Robust Mechanical Protection: Galvanized Steel Wire Braid armor offers superior resistance to crushing, impact, and rodent damage, ideal for exposed or rugged installations.
-
Flame Retardant & Low Smoke: Complies with IEC 60332 flame retardancy standards and IEC 61034 for low smoke emission, enhancing safety in confined spaces (Note: Contains PVC).
-
Durable Construction: EPR insulation ensures thermal stability (90°C), while the PVC inner and outer sheaths provide overall chemical and environmental resistance.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

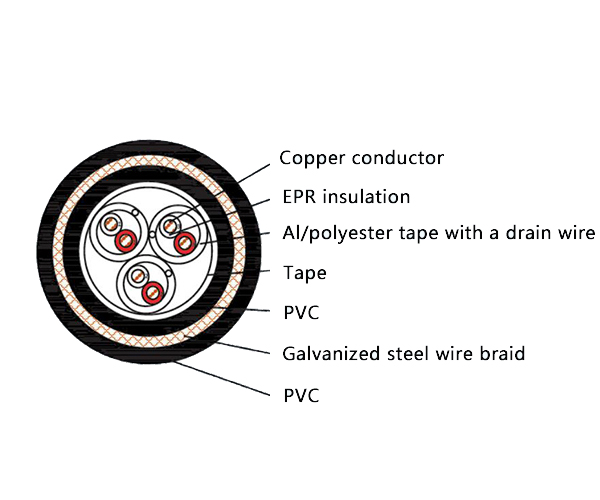

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | V | PVC |
| Screen | P | Tinned Copper Wire Braid, or Alu/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Low Smoke Emission: IEC 61034
-
Note on Halogens: This cable contains PVC and is not halogen-free per IEC 60754.
Applications
This screened and armored cable is ideal for:
-
Marine & Offshore: Telecommunication, instrumentation, computer, and control systems on ships and offshore platforms where EMI protection and mechanical durability are critical.
-
Industrial: Sensitive data/communication networks in environments with high electrical noise or physical hazards, such as power plants, chemical plants, mining, and factory automation.
