Product Overview
The CHEFP82/SA is a flexible and durable screened marine communication cable designed for applications requiring a balance of mechanical protection, environmental resistance, and effective EMI shielding. It features EPR insulation, a PCP (Polychloroprene) inner sheath for chemical/oil resistance, a flexible tinned copper wire braid armor, and a final PVC outer sheath. This construction is ideal for dynamic installations or areas where resistance to harsh substances is critical, such as in marine engine rooms and industrial plants.
Key Features & Benefits
-
Flexible Armor & Effective Shielding: The tinned copper wire braid armor (8) provides good mechanical protection while maintaining high flexibility for easier routing. Combined with the independent metallic screen (P), it offers dual-layer protection against electromagnetic interference (EMI).
-
Excellent Chemical & Oil Resistance: The PCP (Polychloroprene) inner sheath (F) delivers superior resistance to oils, fuels, chemicals, and ozone, ensuring long-term integrity in challenging environments.
-
Durable External Protection: The robust PVC outer sheath (2) provides reliable protection against abrasion, moisture, and general environmental factors.
-
Flame Retardant: Complies with IEC 60332 flame retardancy standards for enhanced safety in bundled cable installations.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

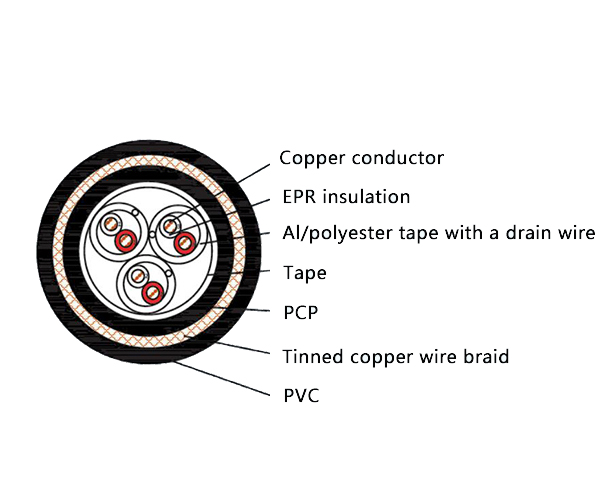

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | F | PCP (Polychloroprene) |
| Screen | P | Tinned Copper Wire Braid, or Alu/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Low Smoke Emission: IEC 61034
-
Note on Halogens: This cable contains PCP and PVC materials and is not halogen-free per IEC 60754.
Applications
This flexible, screened, and chemically resistant cable is suitable for:
-
Marine & Offshore: Instrumentation, control, and communication systems in ship engine rooms, pump rooms, and on offshore platforms, particularly where exposure to oils, fuels, and chemicals is expected, and where cable flexibility is beneficial.
-
Industrial: Process control and data acquisition systems in chemical plants, refineries, and manufacturing facilities where cables require resistance to industrial chemicals and oils, combined with EMI shielding.
