Product Overview
The CHEPJP90/SC is a heavy-duty Low Smoke Halogen Free (LSHF), screened, and armored marine communication cable designed for protected installations within conduits, ducts, or trunking systems. It combines the fire safety of LSHF materials (IEC 60754, 61034) with the mechanical strength of galvanized steel wire armor and the signal integrity of a metallic screen. Featuring EPR insulation and a cross-linked polyolefin (SHF2) inner sheath, this cable is engineered for critical circuits in marine and industrial environments where internal protection is provided by the installation method.
Key Features & Benefits
-
Conduit-Optimized LSHF Design: The "Without Outer Sheath" (0) construction is specifically for installation within protective conduit, cable duct, or trunking, reducing diameter and friction. Maintains full Halogen-Free, Low Smoke Flame Retardant (SC) safety properties.
-
Robust Mechanical & EMI Protection: Galvanized Steel Wire Braid armor (9) offers superior resistance to crushing and impact. A tinned copper braid or foil screen (P) provides effective shielding against electromagnetic interference (EMI).
-
Enhanced Fire Safety: Complies with IEC 60754 (Halogen Free), IEC 61034 (Low Smoke), and IEC 60332 (Flame Retardant) standards, minimizing toxic fumes and fire propagation in bundled applications.
-
Durable Construction: EPR insulation ensures thermal stability up to 90°C, while the SHF2 inner sheath provides a durable, chemically resistant layer beneath the armor.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

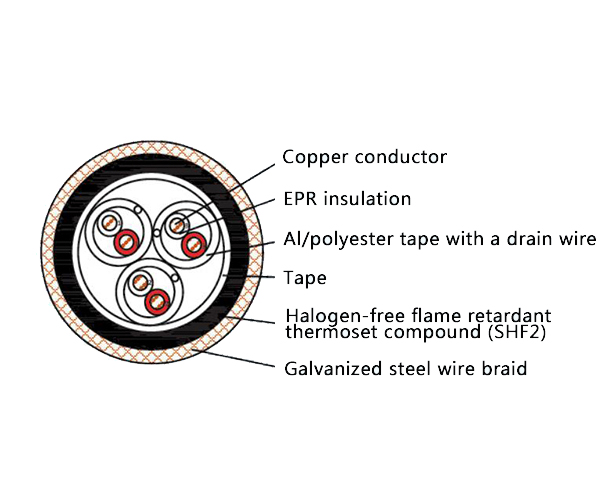

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Screen | P | Tinned Copper Wire Braid, or Alu/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for protected, safety-critical installations in:
-
Marine & Offshore: Fire alarm circuits, emergency communications, and essential control systems on ships and oil platforms, where cables are routed inside metal conduits for physical protection and to meet strict LSHF safety codes.
-
Industrial: Critical instrumentation and data lines in power plants, chemical factories, and tunnels, particularly where local regulations require conduit installation combined with low smoke, zero halogen materials for enhanced fire safety.
