Product Overview
The CKEF/SA is a robust and flexible marine control cable designed for reliable power, lighting, and control circuits in demanding environments. Featuring durable EPR (Ethylene Propylene Rubber) insulation and a rugged PCP (Polychloroprene) outer sheath, this cable offers excellent resistance to oils, weathering, and abrasion. With its SA-grade Flame Retardant certification for bunched installations, it provides a dependable and safe wiring solution for marine vessels, offshore platforms, and heavy industrial applications, complying with key IEC 60092 standards.
Key Features & Benefits
-
Oil & Weather Resistant: The PCP (Code F) outer sheath provides superior protection against oils, chemicals, abrasion, and harsh environmental conditions, ensuring long-term durability.
-
Flame Retardant Safety: Certified for SA-grade Flame Retardancy (IEC 60332-1 & IEC 60332-3-22) for performance in bunched cable installations, helping to inhibit the spread of fire.
-
Thermal Stability & Flexibility: EPR insulation ensures stable electrical performance and thermal endurance at temperatures up to 90°C. The non-armored design offers excellent flexibility for easier installation in conduits, trays, and tight spaces.
-
Proven Reliability: A simple, robust construction designed for the rigorous demands of marine and industrial control systems.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

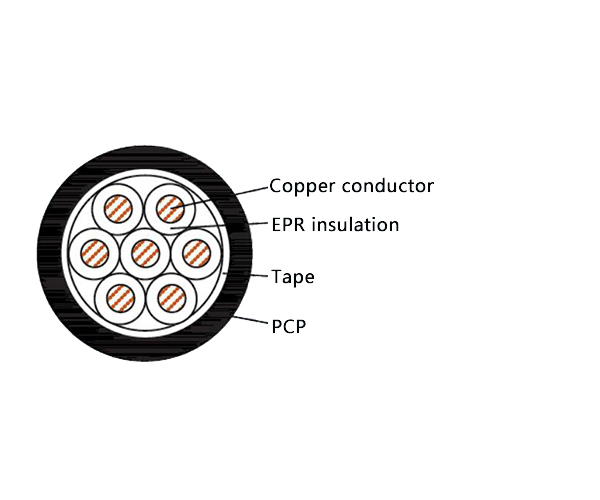

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Sheath | F | Polychloroprene (PCP) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in accordance with international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is suitable for a wide range of fixed wiring applications:
-
Power, lighting, and general control systems on ships, workboats, and offshore platforms (e.g., oil & gas).
-
Industrial control panels, machinery wiring, and equipment in sectors such as chemical processing, power generation, mining, and metallurgy.
