Product Overview
The CKEF92/SA is a heavy-duty, flame-retardant marine control cable engineered for maximum durability and protection in critical power, lighting, and control system applications. It features a robust triple-layer construction: EPR insulation, an oil-resistant PCP inner sheath, high-strength galvanized steel wire armor, and a protective PVC outer sheath. Designed for SA-grade flame retardancy in bunched installations, this cable is built to withstand severe mechanical stress and harsh environmental conditions on ships, offshore platforms, and in demanding industrial plants, in full compliance with IEC 60092 standards.
Key Features & Benefits
-
Maximum Mechanical & Crush Protection: The galvanized steel wire braid armor (Code 9) offers superior defense against impact, crushing forces, and rodent damage, making it ideal for exposed or high-risk areas.
-
Enhanced Environmental & Chemical Resistance: The inner PCP sheath (Code F) provides excellent resistance to oils, chemicals, and moisture, while the outer PVC sheath (Code 2) adds a layer of protection against abrasion, sunlight, and general weathering.
-
Flame Retardant Safety: Certified for SA-grade Flame Retardancy (IEC 60332-1 & -3-22) for performance in bunched cable installations, helping to inhibit the spread of fire.
-
Reliable & Long-Lasting: EPR insulation ensures stable electrical properties and thermal endurance at a continuous operating temperature of 90°C, guaranteeing reliable performance over the long term.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

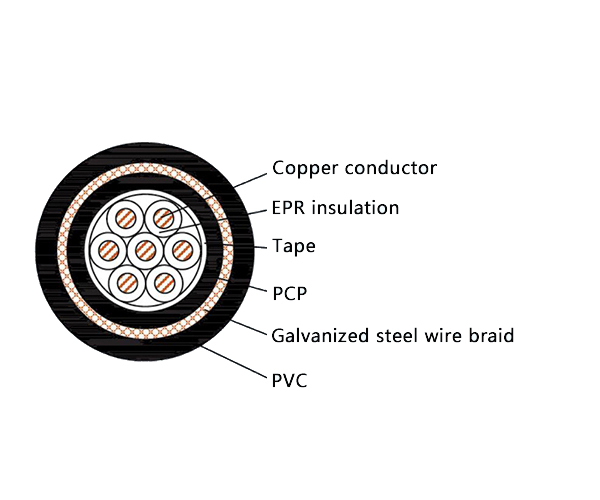

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | F | Polychloroprene (PCP) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in accordance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is engineered for the most demanding fixed installations:
-
Main and auxiliary control, power, and lighting circuits on ships, oil & gas platforms, and offshore structures.
-
Industrial control systems, factory automation, and heavy machinery in sectors such as mining, chemical plants, power generation, and metallurgy.
