Product Overview
The CKEPF80/SC is a specialized Low Smoke Halogen Free (LSHF) Flame Retardant marine control cable designed for applications that demand superior fire safety, electromagnetic compatibility, and ultimate installation adaptability. It features EPR insulation, a Thermoplastic Polyolefin (SHF1) inner sheath, and a flexible tinned copper wire braid armor. Supplied without an outer sheath (Code 0), this SC-grade cable provides a high-performance, safety-compliant, and shielded core, perfect for final integration into systems requiring custom external jacketing, conduits, or dedicated protection. It is fully compliant with IEC 60092 standards for critical marine and industrial control circuits.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) construction minimizes toxic and corrosive fume emission, enhancing evacuation safety in confined spaces. Certified for high Flame Retardancy (IEC 60332-1 & -3-22) to inhibit flame spread.
-
Flexible Armor with EMI/RFI Shielding: The tinned copper wire braid armor (Code 8) provides excellent mechanical protection while ensuring high flexibility for routing in complex paths. It also acts as an effective shield against electromagnetic and radio frequency interference (EMI/RFI) for signal integrity.
-
Maximum Integration & Customization Flexibility: The absence of an outer sheath (Code 0) offers unparalleled adaptability for system integrators, panel builders, and installers. It allows for the application of a site-specific final over-sheath, conduit system, or additional fireproofing layer tailored to the exact environmental and safety requirements of the final installation.
-
Reliable Core Construction: The combination of EPR insulation (90°C rating) and an SHF1 inner sheath ensures thermal stability, moisture resistance, and protection for the cable core prior to final assembly.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

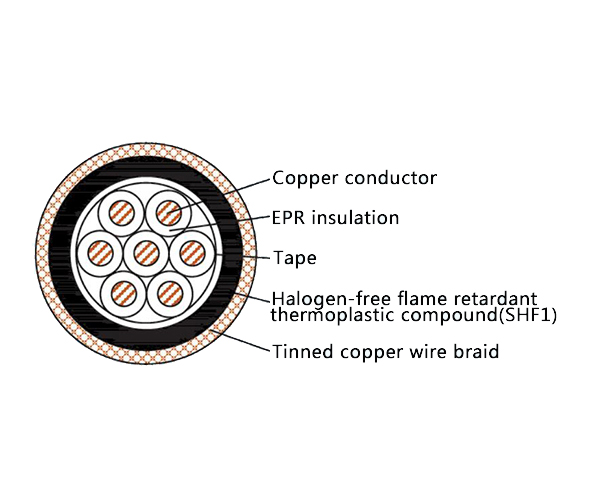

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for high-safety, customizable installations requiring flexibility and EMI protection:
-
Control, instrumentation, and power circuits on ships, offshore platforms, and marine structures where LSHF standards are mandatory and installation routing within custom panels or conduits is required.
-
Sensitive control systems within industrial control panels, power generation facilities, chemical plants, and mining operations that necessitate a flexible, shielded, and safety-compliant cable core for final integration into specialized containment or protection systems.
